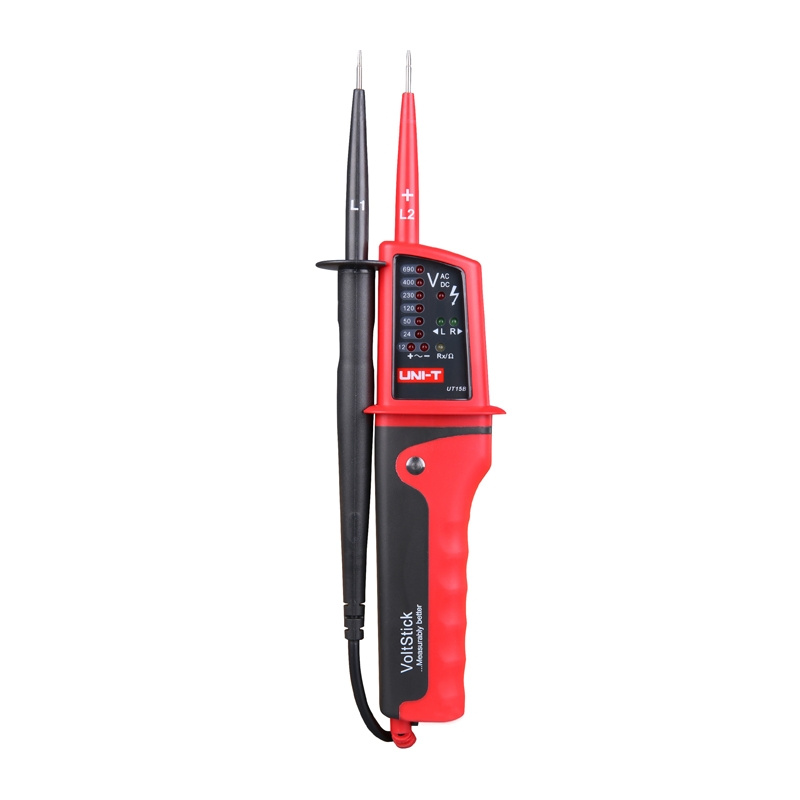

Uni-T UT15B Voltage and Continuity Tester 12–690V IP65

The Uni-T UT15B is a voltage and continuity tester designed for electrical installation diagnostics, offering LED indicators and automatic range switching.

Key Features

AC/DC voltage measurement across ranges from 12 V to 690 V
Circuit continuity test with audible signal and LED indication
Phase rotation test and single-probe voltage detection
Positive and negative polarity detection
Built-in flashlight for low-light environments
Rugged housing with IP65 ingress protection

Manufacturer	Uni-T
Model	UT15B
Product type	Voltage and continuity tester
AC/DC LED voltage indicator	Yes
12 V range	0–12 V
24 V range	17 V ± 2 V
50 V range	35 V ± 5 V
120 V range	80 V ± 15 V
230 V range	165 V ± 20 V
400 V range	300 V ± 30 V
690 V range	510 V ± 40 V
Phase rotation test	Yes
Phase rotation test range	0–690 V, 50–60 Hz
Single-probe voltage detection L2	Yes
Single-probe voltage detection range	0–690 V, 50–400 Hz
Circuit continuity test	Yes
Continuity test range	0–100 kΩ
Continuity test indication	Audible signal + LED
Polarity detection	Yes
Type of polarity detection	Positive and negative
Protection class	IP65
Range switching	Automatic
Flashlight	Yes
Battery indicator	Yes
LCD display	No
Power supply	2 × 1.5 V (R03)
Weight	210 g
Dimensions	275 × 51 × 30 mm
Color	Red and gray
