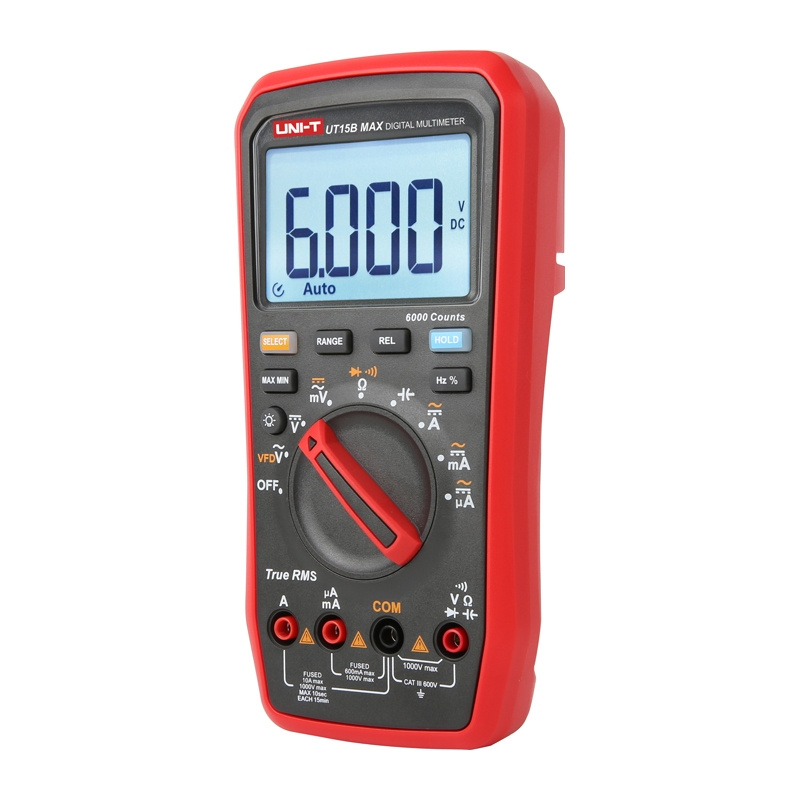

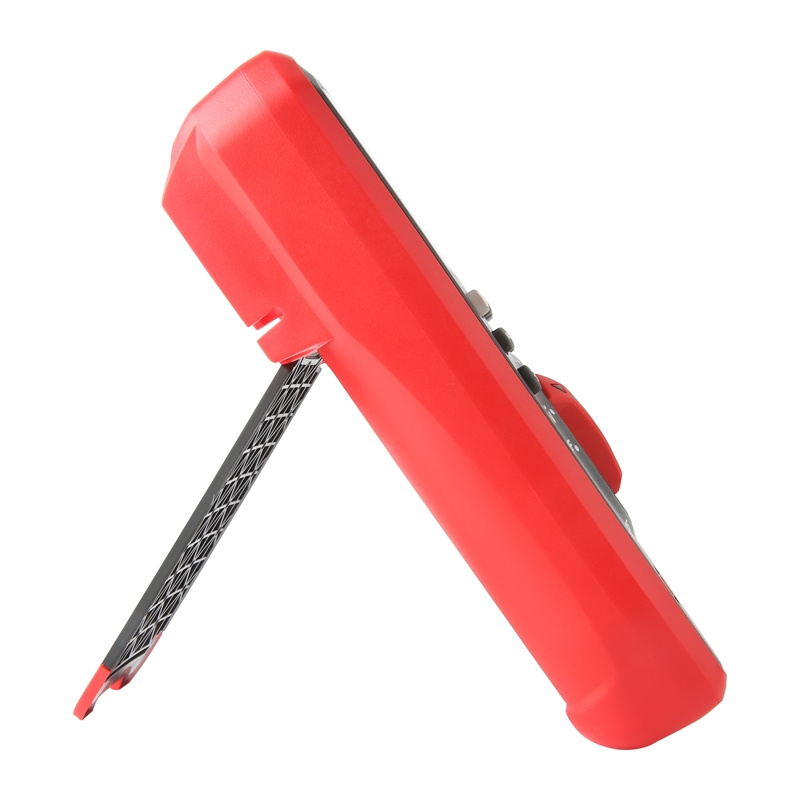

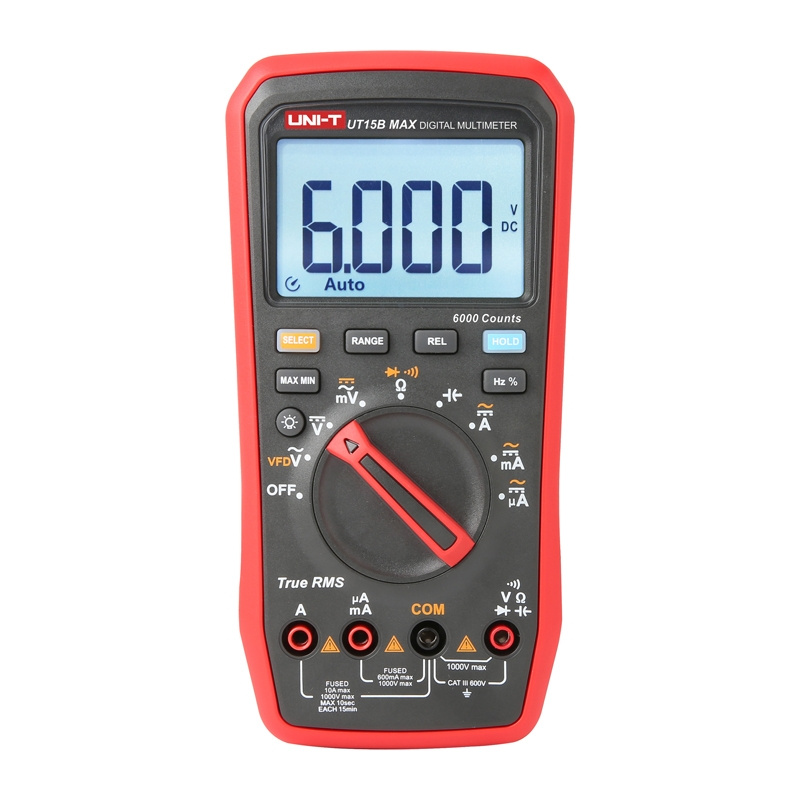

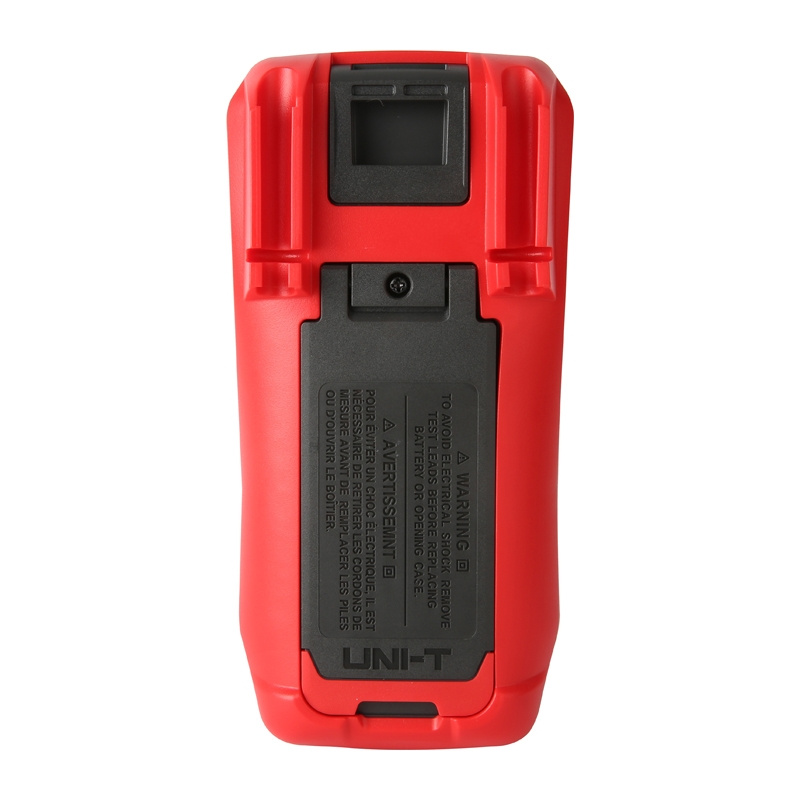

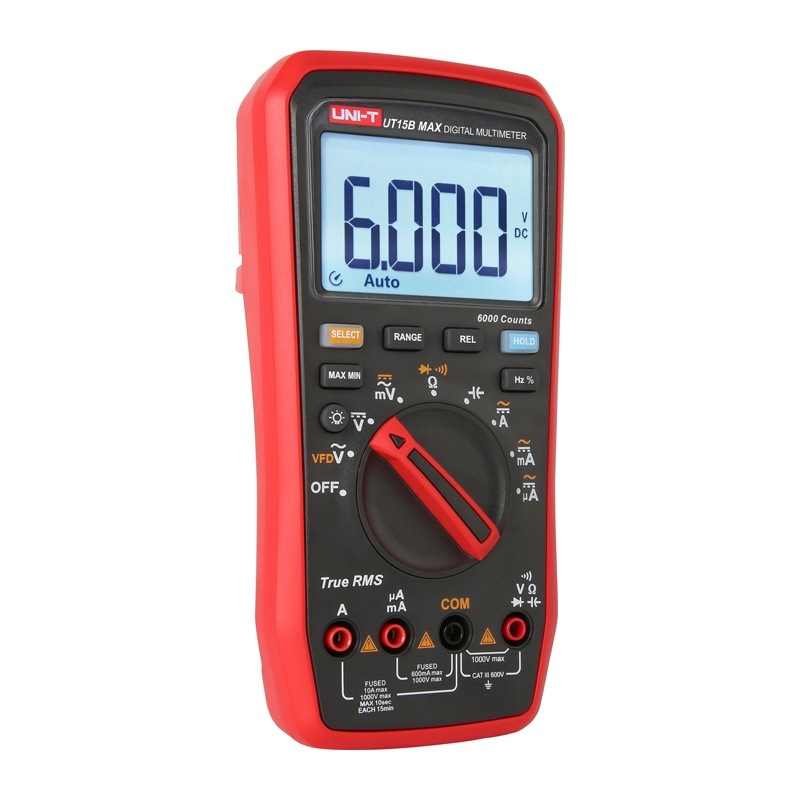

Uni-T UT15B MAX True RMS Digital Multimeter
65.60 €
68.20 €
You save 2.60 €
incl. VAT
In supplier warehouse · 45 pcs. Delivery Time: 4–10 business days
In your cart: 0
Delivery options to:
Choose countryThe Uni-T UT15B MAX is a True RMS digital multimeter with a 6000-count display, engineered for precise everyday electrical measurements.
Key Features
- DC and AC voltage measurement up to 1000 V
- Current measurement up to 10 A, resistance up to 60.00 MΩ, and capacitance up to 6000 µF
- VFD measurement mode for selected electrical circuits
- Continuity test, diode test, Data Hold, and MAX/MIN modes
- Wrong-lead connection alarm and CAT III 600V overvoltage protection
- Adjustable backlight with automatic and manual range switching
| Manufacturer | Uni-T |
|---|---|
| Model | UT15B MAX |
| Product type | True RMS digital multimeter |
| DC voltage range | 600.0 mV / 6.000 V / 60.00 V / 600.0 V / 1000 V ±(0.4% + 3) |
| AC voltage range | 600.0 mV / 6.000 V / 60.00 V / 600.0 V / 1000 V ±(0.5% + 5) |
| VFD range | 600.0 V ±(8%) |
| DC current range | 600.0 µA / 6000 µA / 60.00 mA / 600.0 mA / 6.000 A / 10.00 A ±(1.2% + 3) |
| AC current range | 600.0 µA / 6000 µA / 60.00 mA / 600.0 mA / 6.000 A / 10.00 A ±(1.2% + 3) |
| Resistance range | 600.0 Ω – 60.00 MΩ ±(0.5% + 2) |
| Capacitance range | 6.000 nF – 6000 µF ±(2.0% + 5) |
| Frequency range | 10 Hz – 10 MHz ±(0.1% + 3) |
| Duty cycle | 1% – 99.9% ±(1.0% + 4) |
| Maximum display count | 6000 |
| Measurement category | CAT III 600V |
| Power supply | 2 × 1.5 V AA batteries |
| Dimensions | 182 × 91 × 45 mm |
| Weight | 455 g |
| Color | Red and gray |
| EAN | 6935750515259 |
|---|
What is included in the package?
The package includes the digital multimeter, 2 standard gold-plated test leads, 2 test leads with fine tips, 2 AA batteries, and a user manual.
Does the UT15B MAX measure temperature?
No, the UT15B MAX does not include a temperature measurement function.
What safety features does this multimeter have?
The multimeter includes visual and audible alarms, a wrong-lead connection alarm, and CAT III 600V overvoltage protection.
