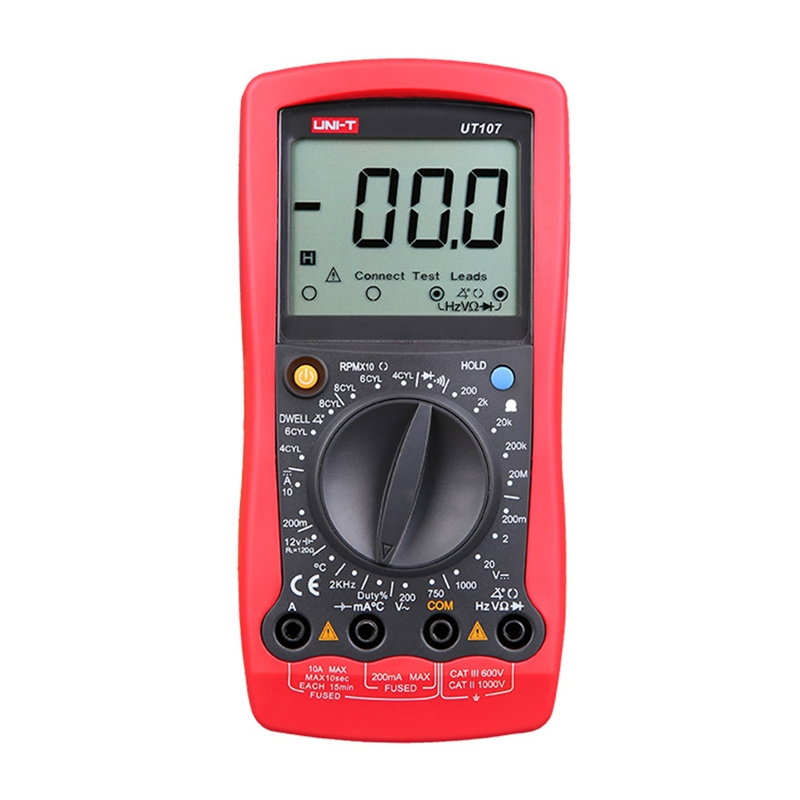

UNI-T UT107 Handheld Automotive Digital Multimeter
27.80 €
Products ID: 175191
In supplier warehouse
Available to order: 10+ pcs.
Delivery Time 5–12 business days
Delivery options to:
Choose countryThe UNI-T UT107 is a handheld digital multimeter engineered for automotive diagnostics and electrical maintenance in workshops and garages. It provides a comprehensive range of measurement functions to test ignition systems, power supplies, batteries, and other vehicle electronics.
Key Features and Capabilities
- DC voltage measurement up to 1000 V and AC voltage measurement up to 750 V
- DC current measurement up to 10 A and resistance testing up to 20 MΩ
- Dwell/Tach function for 4-, 6-, and 8-cylinder engines
- 12 V battery testing and duty cycle measurement from 1% to 90%
- Temperature measurement from -40°C to 1000°C using the included probe
- Frequency measurement up to 2 kHz for electronic signal analysis
| Manufacturer | UNI-T |
|---|---|
| Model | UT107 |
| DC Voltage Range | 200mV / 2V / 20V / 1000V ±(0.5%+2) |
| AC Voltage Range | 200V / 750V ±(0.8%+5) |
| DC Current Range | 200mA / 10A ±(0.8%+5) |
| Resistance Range | 200Ω / 2kΩ / 20kΩ / 200kΩ / 20MΩ ±(0.8%+5) |
| Frequency Range | 2 kHz ±(2%+5) |
| Temperature Range | -40°C ~ 1000°C ±(2%+8) |
| Battery Test | 12 V ±(3%+5) |
| Duty Cycle | 1 ~ 90% ±(4%+5) |
| Dwell / Tach | 4CYL / 6CYL / 8CYL ±(3%+5) |
| Input Impedance for DCV | approx. 10MΩ |
| Power Supply | 9V battery (6F22) |
| Display Dimensions | 60 x 54 mm |
| Dimensions | 179 x 88 x 39 mm |
| Weight (with holster) | 351 g |
| EAN | 6935750510704 |
|---|
What is included in the UNI-T UT107 package?
The package includes the multimeter, test leads, a protective holster, and a point contact temperature probe.
Which engine cylinder configurations are supported by the Dwell/Tach function?
The Dwell/Tach measurement function supports 4-cylinder, 6-cylinder, and 8-cylinder engines.
What type of battery powers the UT107 multimeter?
The device operates on a standard 9V battery (6F22).
