UNI-T UT07B-EU Power Outlet Tester with RCD Test
Price: 15.90 €
| Products ID: | 175381 |
|---|---|
| Manufactured by: | Uni-T |
| Availablity: | Ready to Order |
| Delivery Time | 5-10 business days |
| EAN: | 6935750507278 |
Delivery options to:

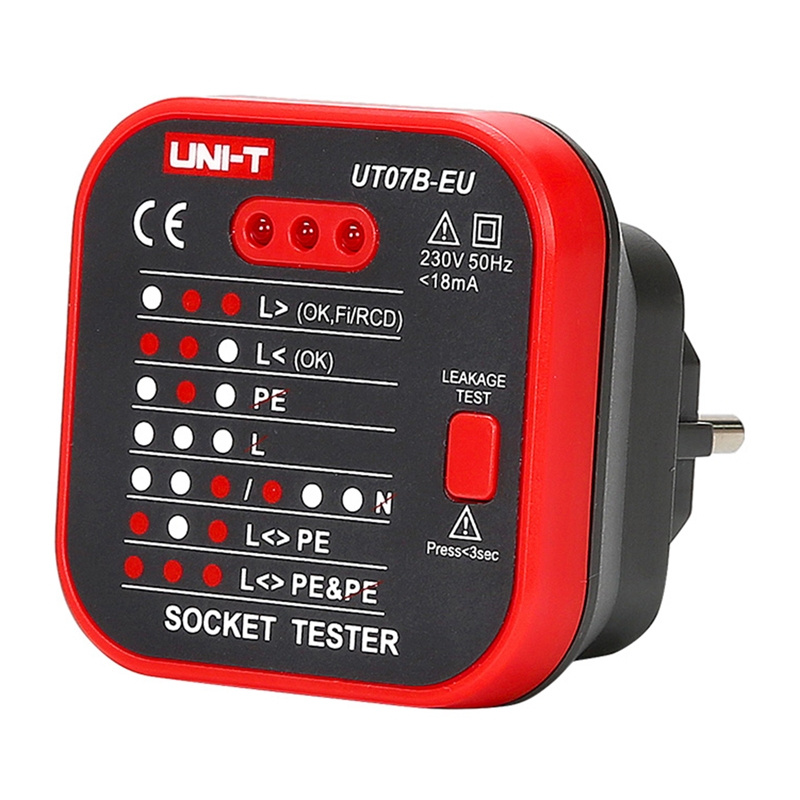

Choose countryThe UNI-T UT07B-EU is a mains socket tester designed for diagnosing wiring faults and verifying the operation of residual current devices (RCD).
Key Features
- Built-in RCD Test: generates a leakage current of approximately 30 mA to verify residual current circuit breaker operation.
- Wiring Diagnostics: detects missing neutral or ground conductors, swapped phase and neutral wires, and incorrect ground connections.
- Clear Light Indications: provides immediate visual feedback on installation status and errors.
- Operating Parameters: designed for 230 V power grids with a frequency of 50–60 Hz.
| Manufacturer | UNI-T |
|---|---|
| Model | UT07B-EU |
| Operating voltage | 230 V |
| Frequency | 50-60 Hz |
| RCD test current | approx. 30 mA |
What leakage current does the RCD test feature generate?
The device generates a leakage current of about 30 mA to test whether the residual current circuit breaker trips correctly.
What wiring faults can the UT07B-EU detect?
It detects missing neutral or ground wires, swapped phase and neutral conductors, and improper ground connections.
What is the operating voltage range of this tester?
The tester operates at 230 V with a frequency of 50–60 Hz.
