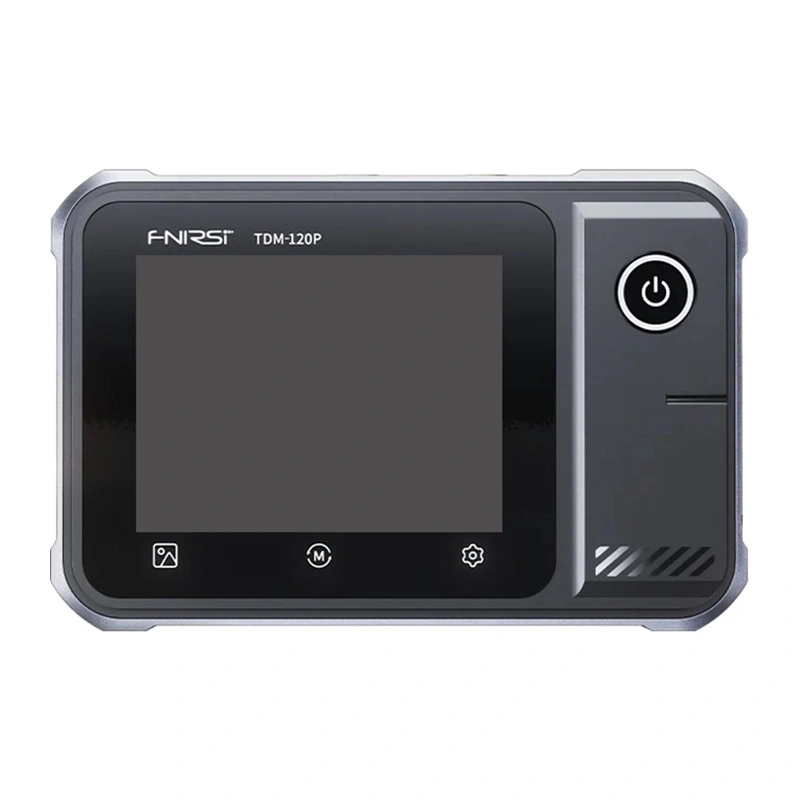

Thermal Imaging Camera FNIRSI TDM-120, 120 x 90, 2.8" LCD
Price: 177.70 €
| Products ID: | 177239 |
|---|---|
| Manufactured by: | Fnirsi |
| Availablity: | Ready to Order |
| Delivery Time | 5-10 business days |
| EAN: | 5905156108196 |
Delivery options to:
Choose countryThe FNIRSI TDM-120 is a compact thermal imaging camera with a 2.8-inch touchscreen LCD and 120 x 90 infrared resolution, designed for electronic circuit diagnostics, testing, and temperature analysis.
Key Features
- 120 x 90 infrared resolution with vanadium oxide detector
- Measurement temperature range from -20°C to 400°C
- Clear 2.8-inch touchscreen LCD interface
- Center point temperature display and auto tracking of high/low temperatures
- High and low temperature alarm support
- Adjustable emissivity from 0.01 to 1
| Manufacturer | FNIRSI |
|---|---|
| Model | TDM-120 |
| Color options | Arctic / Red-Hot Iron / Iron Red / Rainbow / Lava / Red-Hot Black / Red-Hot White |
| Detector type | Vanadium oxide |
| Field of view | 50° |
| Screen | 2.8-inch touchscreen LCD |
| Refresh rate | ≤25 Hz |
| Infrared resolution | 120 x 90 |
| Temperature display | Center point, automatic tracking of highest and lowest temperatures |
| Temperature range | -20°C ~ 400°C |
| Temperature unit | °C / °F |
| Accuracy | ±2°C or ±2% (of the maximum measured value) |
| High/Low Temperature Alarm | Supported |
| Emissivity | 0.01–1 (adjustable) |
| Languages | Chinese / English |
What is included in the FNIRSI TDM-120 package?
The set includes the TDM120 camera, a USB data cable, and a user manual.
What is the operating temperature measurement range?
The camera measures temperatures from -20°C to 400°C.
