Portable 3-in-1 Oscilloscope FNIRSI 2C53P 4.3" Touchscreen
Price: 119.00 €
| Products ID: | 175639 |
|---|---|
| Manufactured by: | Fnirsi |
| Availablity: | Ready to Order |
| Delivery Time | 5-10 business days |
| EAN: | 5907085527291 |
Delivery options to:
Choose country

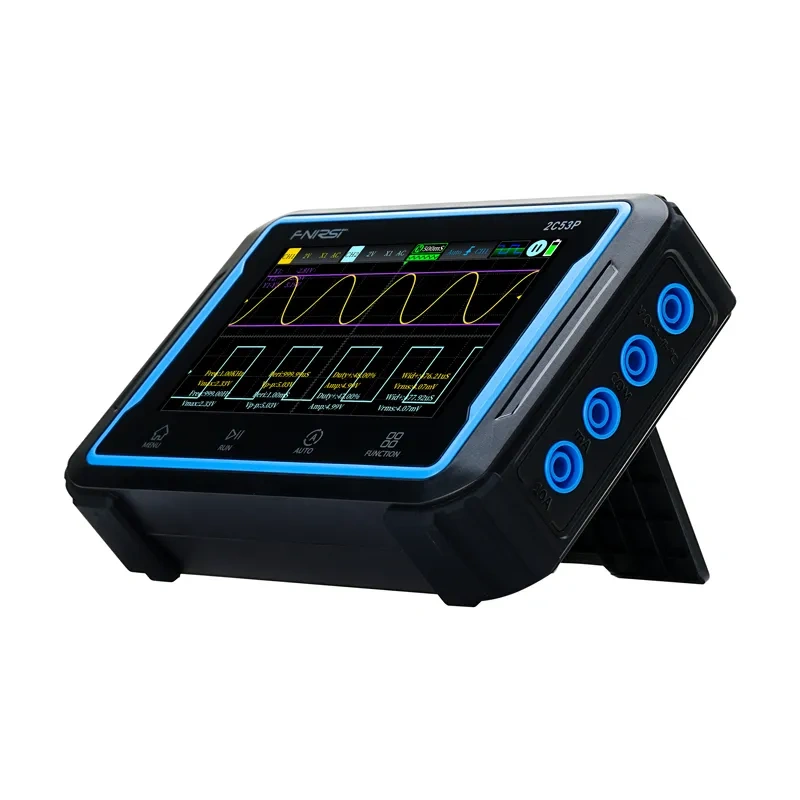

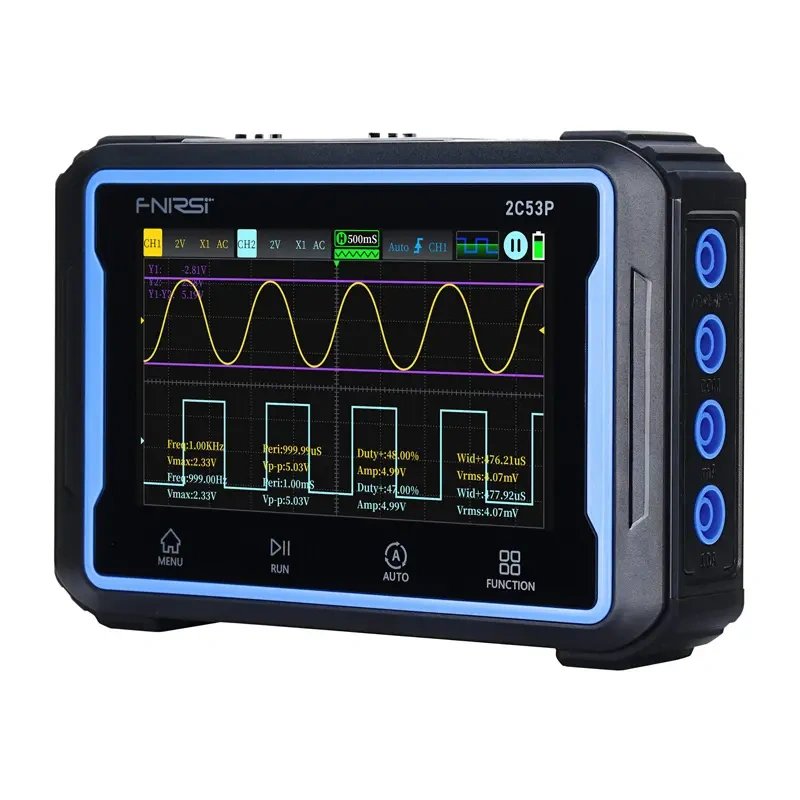

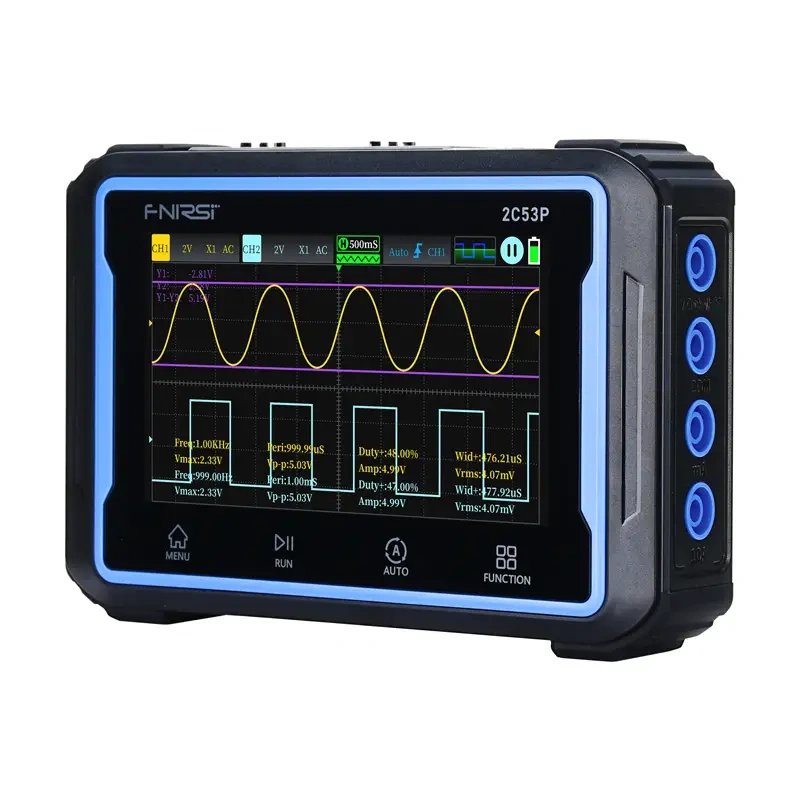

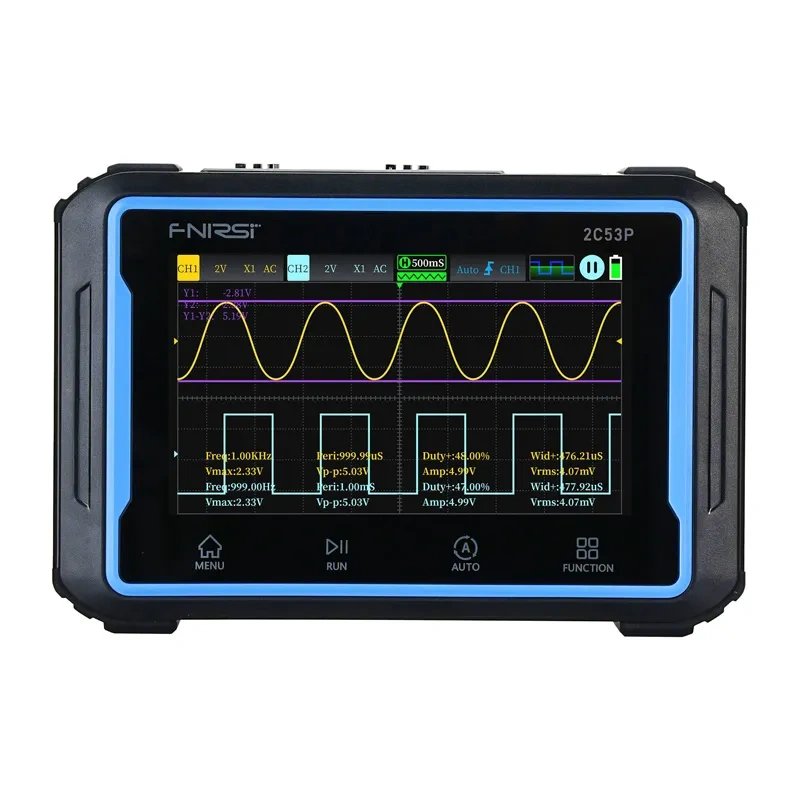

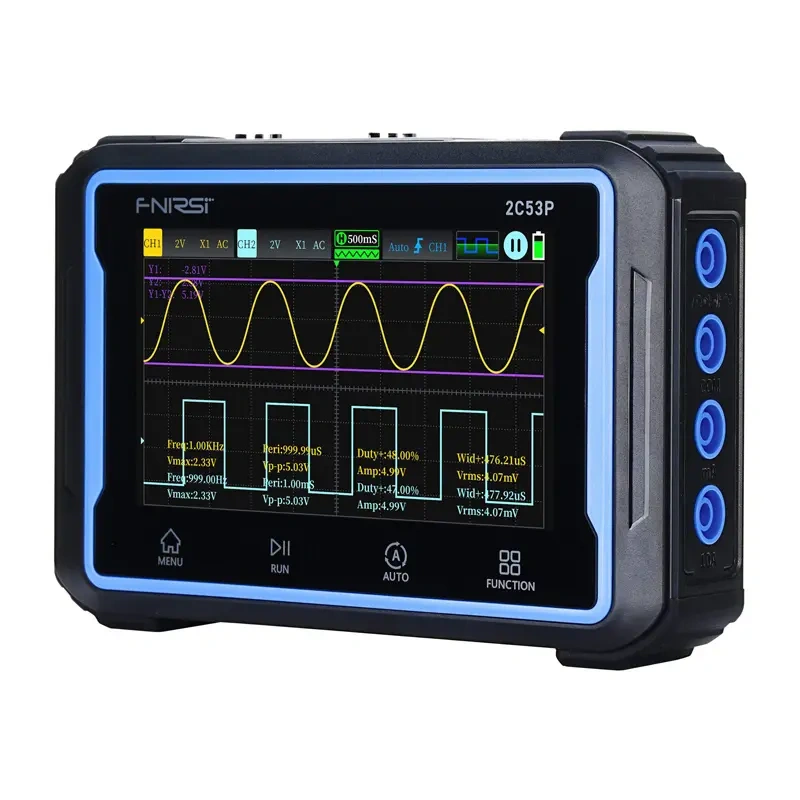

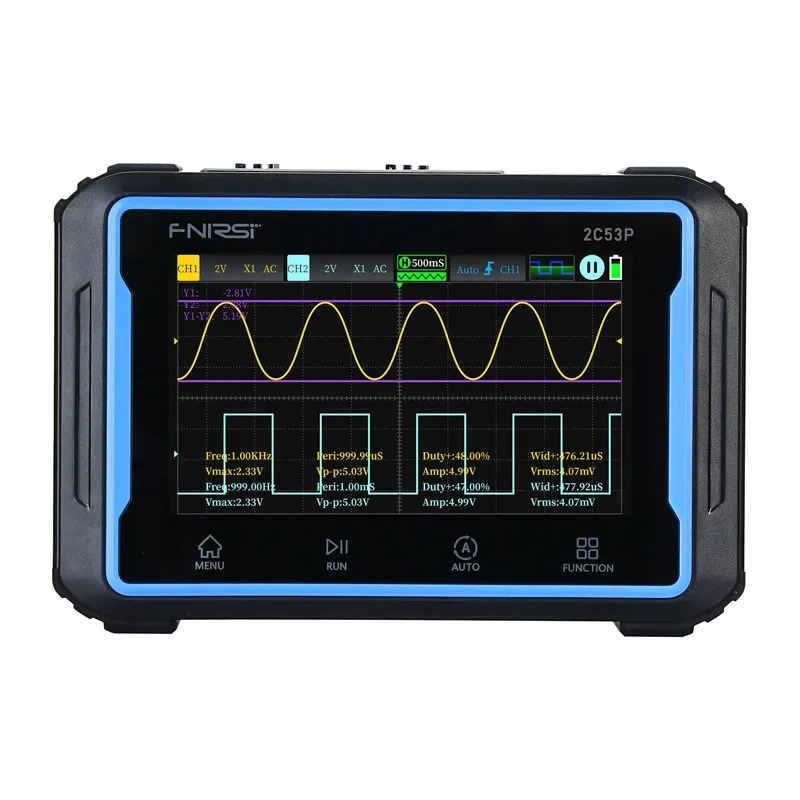

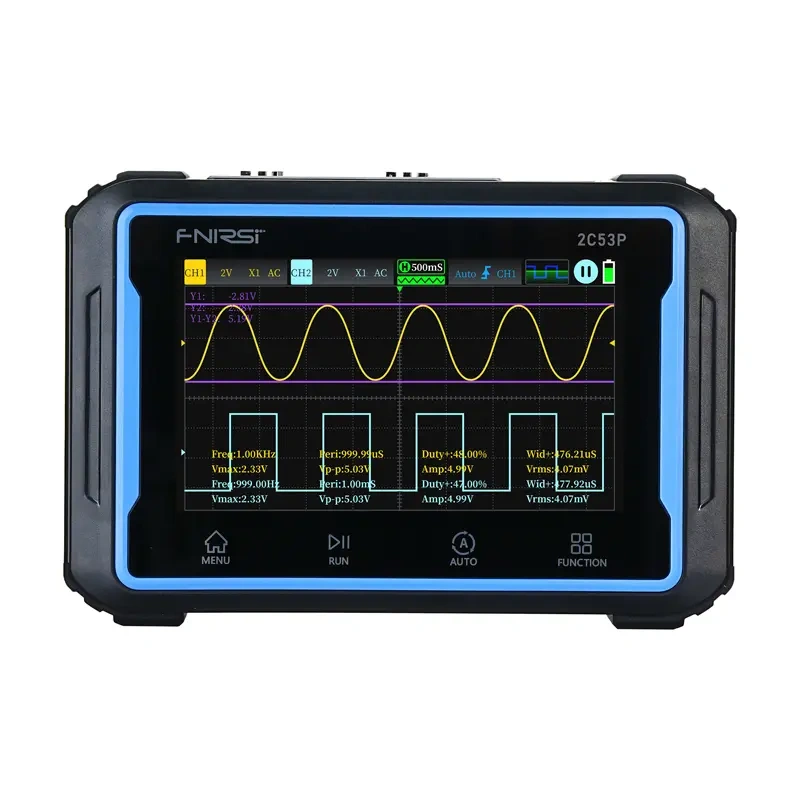

The FNIRSI 2C53P is a compact 3-in-1 handheld instrument that combines a dual-channel oscilloscope, a digital multimeter, and a DDS signal generator. It is equipped with a 4.3-inch IPS touchscreen and a 4000 mAh battery for versatile workshop and field use.
Key Features
- Dual-channel oscilloscope with 50 MHz bandwidth and 250 MSa/s sampling rate
- High-precision multimeter with up to 19999 counts
- Built-in DDS function generator supporting frequencies up to 10 MHz
- 4.3-inch color IPS touchscreen with 480 × 272 resolution and tempered glass
- Integrated 4000 mAh lithium battery with USB Type-C charging
- Waveform screenshot capture and PC data export
| Manufacturer | FNIRSI |
|---|---|
| Model | 2C53P |
| Screen | 4.3" IPS touchscreen, tempered glass |
| Screen Resolution | 480 x 272 px |
| Oscilloscope Channels | Dual channel |
| Bandwidth | 50 MHz |
| Sampling Rate | 250 MSa/s |
| Bandwidth Limit | 20 MHz |
| Input Impedance | 1 MΩ |
| Vertical Sensitivity | 10 mV/div - 10 V/div |
| Time Base Range | 10 ns/div - 10 s/div |
| Voltage Protection | 400 V |
| Signal Generator Frequency | 0-10 MHz |
| Battery | Lithium, 4000 mAh |
| Power Input | Type-C (5V/2A) |
| Dimensions | 14.5 x 3.5 x 9.8 cm |
| Weight | 360 g |
What tools are integrated into the FNIRSI 2C53P?
The device combines a 50 MHz dual-channel oscilloscope, a digital multimeter, and a DDS signal generator in a single portable unit.
What are the display specifications?
It features a 4.3-inch IPS touchscreen with 480 × 272 pixel resolution and a tempered glass surface.
How is the device powered?
It is powered by an internal 4000 mAh lithium rechargeable battery charged via a 5V/2A USB Type-C port.
