Fnirsi

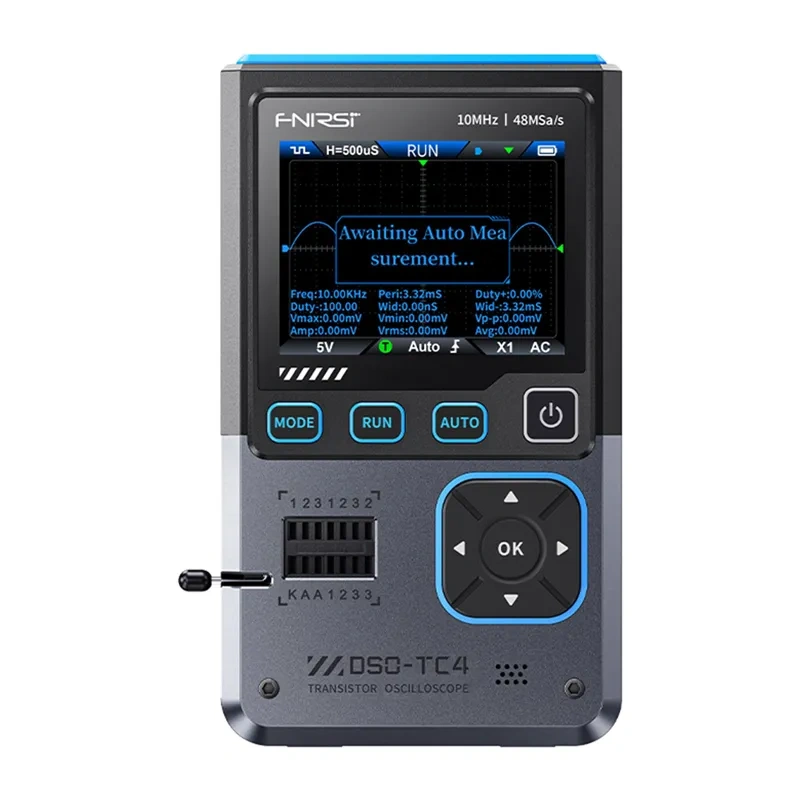

Portable 3-in-1 Mini Oscilloscope FNIRSI DSO-TC4

63.60 € 66.10 € You save 2.50 € incl. VAT
In supplier warehouse · 10 pcs. Delivery Time: 4–10 business days

In your cart: 0

Delivery options to:

Choose country

The FNIRSI DSO-TC4 is a compact 3-in-1 device combining a digital oscilloscope, an electronic component tester, and a signal generator.

Key Features

  • 3-in-1 functionality: Digital oscilloscope, component tester, and signal generator in a single unit.
  • Oscilloscope performance: Up to 10 MHz analog bandwidth and 48 MSa/s real-time sampling rate.
  • Signal generator: 13 predefined waveforms across a frequency range of 0-50 kHz.
  • Component tester: Automatic identification of diodes, transistors (including MOSFETs), resistors, and capacitors.
  • Display and battery: 2.8-inch TFT color screen and a built-in 1500 mAh lithium-ion battery with USB-C charging.

ManufacturerFnirsi
ModelDSO-TC4
Display2.8-inch TFT color screen
Analog bandwidth10 MHz
Real-time sampling rate48 MSa/s
Input impedance1MΩ
Coupling modeAC/DC
Time base range50ns-20s
Trigger modesAuto / Normal / Single
Signal generator frequency0-50 kHz
BatteryLithium-ion 3.7V, 1500mAh
Power supplyUSB Type-C (5V/1A)
Dimensionsapprox. 90×142×27.5 mm
Weight186 g
EAN5907085527192
What functions does the FNIRSI DSO-TC4 provide?

The device combines three functions: a digital oscilloscope, an electronic component tester, and a signal generator.

What are the power specifications of the device?

It is powered by a built-in 3.7V 1500 mAh lithium-ion battery and charges via USB Type-C (5V/1A).

What is included in the package?

The package includes the oscilloscope, P1600 probe, crocodile clamp, 3 test hooks, user manual, USB-C charging cable, and adapter.
