Oscilloscope Probe FNIRSI P4100 100 MHz 100:1 1000V
Price: 21.30 €
| Products ID: | 177391 |
|---|---|
| Manufactured by: | Fnirsi |
| Availablity: | Ready to Order |
| Delivery Time | 5-10 business days |
| EAN: | 5905156108264 |
Delivery options to:
Choose country

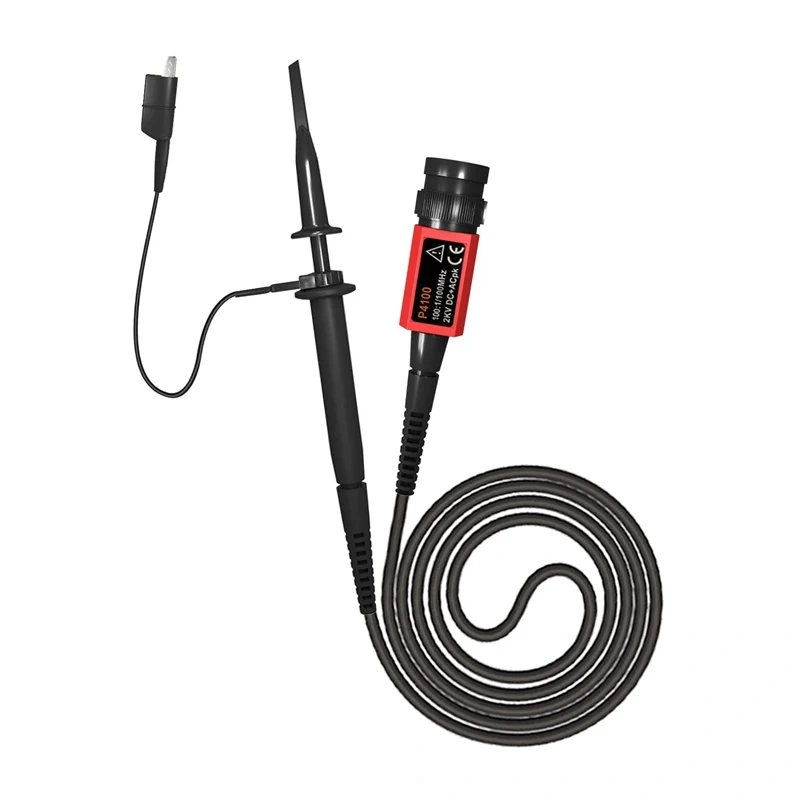

The FNIRSI P4100 is an oscilloscope probe designed for accurate signal measurement and analysis in electronics, service, and laboratory environments.
Key Features
- 100 MHz bandwidth and 100:1 attenuation ratio
- Maximum operating voltage of 1000 V DC + ACPP
- Fast rise time of 3.5 ns for capturing dynamic waveforms
- Durable ABS housing with a 1.1 m cable
| Manufacturer | FNIRSI |
|---|---|
| Model | P4100 |
| Supported models | Universal |
| Input resistance | 100 MΩ |
| Input capacitance | 6 pF |
| Compensation range | 10 pF–35 pF |
| Bandwidth | 100 MHz |
| Rise time | 3.5 ns |
| Maximum operating voltage | 1000 V DC + ACPP |
| Color | black |
| Material | ABS |
| Cable length | 1.1 m |
What is included in the package?

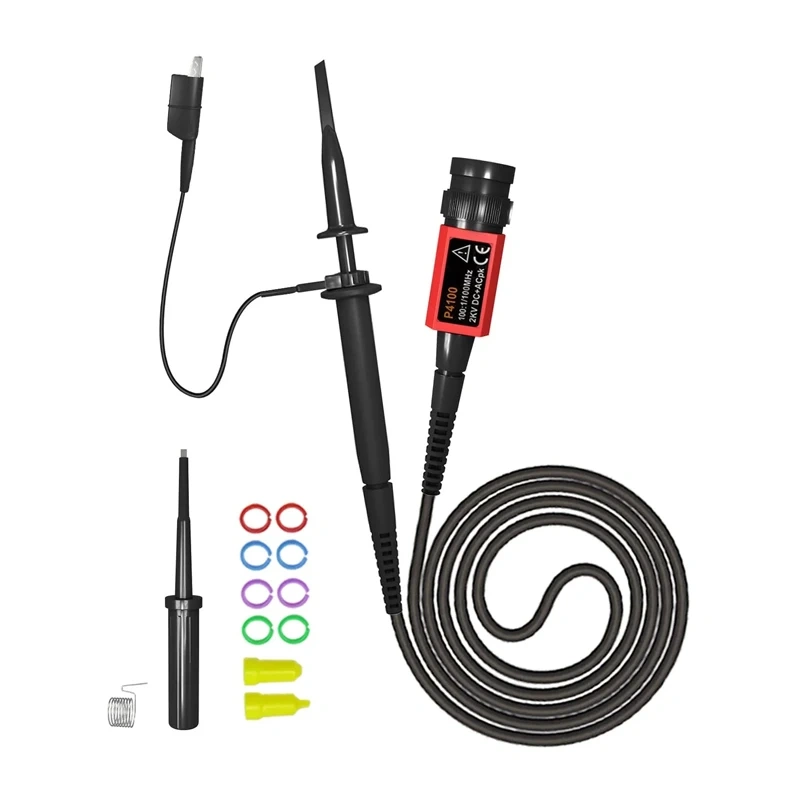

The package includes the probe, screwdriver, 8 multicolored test leads, 2 tip positioning sleeves, spring, and user manual.
What is the length of the probe cable?
The probe cable is 1.1 m long.
