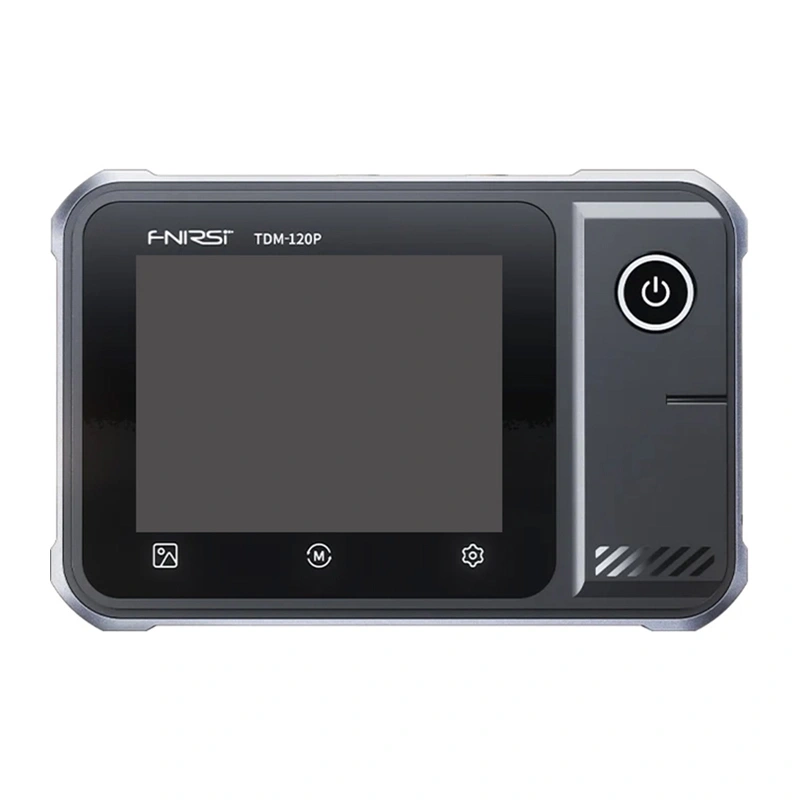

FNIRSI TDM-120P Thermal Imaging Camera, 120 x 90, 2.8" Touchscreen
Price: 185.60 €
| Products ID: | 177240 |
|---|---|
| Manufactured by: | Fnirsi |
| Availablity: | Ready to Order |
| Delivery Time | 5-10 business days |
| EAN: | 5905156108202 |
Delivery options to:
Choose countryThe FNIRSI TDM-120P is a compact thermal imaging camera designed for testing, diagnosing, and repairing electronic circuits and components in labs or service stations.
Key Features
- 120 x 90 infrared resolution with a 50° field of view
- 2.8-inch LCD touchscreen interface
- Temperature measurement range from -20°C to 400°C
- Center-point temperature display and auto-tracking of min/max values
- Adjustable emissivity from 0.01 to 1
- High and low temperature alarm support
| Manufacturer | FNIRSI |
|---|---|
| Model | TDM-120P |
| Color options | Arctic / Red-Hot Iron / Iron Red / Rainbow / Lava / Red-Hot Black / Red-Hot White |
| Detector type | Vanadium oxide |
| Field of view | 50° |
| Screen | 2.8-inch touchscreen LCD |
| Refresh rate | ≤25 Hz |
| Infrared resolution | 120 x 90 |
| Temperature display | Center point, automatic tracking of highest and lowest temperatures |
| Temperature range | -20°C ~ 400°C |
| Temperature unit | °C / °F |
| Accuracy | ±2°C or ±2% (of the maximum measured value) |
| High/Low Temperature Alarm | Supported |
| Emissivity | 0.01–1 (adjustable) |
| Languages | Chinese / English |
What is included in the package?
The set includes the TDM-120P camera, a USB data cable, and a user manual.
What is the measured temperature range of the camera?
The camera supports temperature measurements from -20°C to 400°C.
