Fnirsi P6100 Oscilloscope Probe 100 MHz
Price: 10.70 €
| Products ID: | 175803 |
|---|---|
| Manufactured by: | Fnirsi |
| Availablity: | Ready to Order |
| Delivery Time | 5-10 business days |
| EAN: | 5907085529011 |
Delivery options to:
Choose country

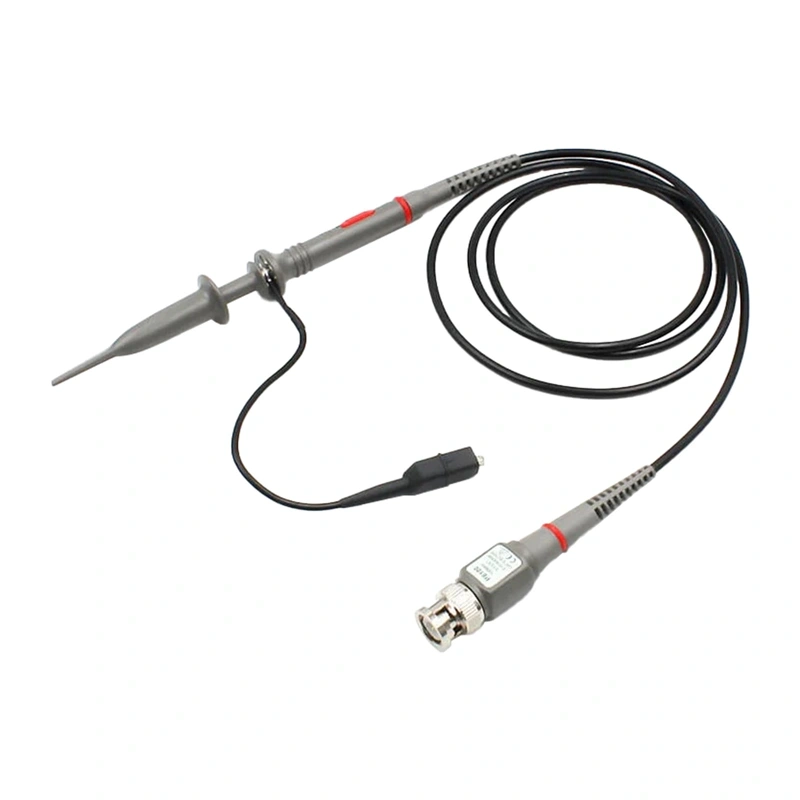

The Fnirsi P6100 is an oscilloscope probe designed for precise signal measurements in electronics maintenance and hobbyist workshops.
Key Features
- Selectable attenuation modes: 1X (bandwidth DC–6 MHz) and 10X (bandwidth DC–100 MHz)
- Operating voltage support up to 200 V DC + AC peak (1X) and 600 V DC + AC (10X)
- 120 cm cable length for flexible placement and reach
- Lightweight 80 g construction to reduce strain on connectors
- Fast rise time of less than 3.5 ns
| Manufacturer | Fnirsi |
|---|---|
| Model | P6100 |
| Frequency response | DC–6 MHz (1X mode), DC–100 MHz (10X mode) |
| Attenuation ratio | 1:10 |
| Input capacitance | 1X: 85 pF–120 pF, 10X: 18.5 pF–22.5 pF |
| Compensation range | 10 pF–30 pF |
| Rise time | < 3.5 ns |
| Operating voltage | 1X: < 200 V DC + AC (peak), 10X: < 600 V DC + AC |
| Cable length | 120 cm |
| Operating temperature range | -10°C to +50°C |
| Storage temperature range | -20°C to +75°C |
| Humidity | ≤ 5% (relative humidity) |
| Weight | 80 g |
| Color | gray-black |
| Package contents | Fnirsi P6100 oscilloscope probe |
What is the voltage limit for the Fnirsi P6100 probe?
The probe supports voltages up to 200 V DC + AC peak in 1X mode and up to 600 V DC + AC in 10X mode.
What is the bandwidth of this oscilloscope probe?
The bandwidth is DC–6 MHz in 1X mode and DC–100 MHz in 10X mode.
How long is the cable?
The probe cable is 120 cm long and the entire unit weighs approximately 80 g.
