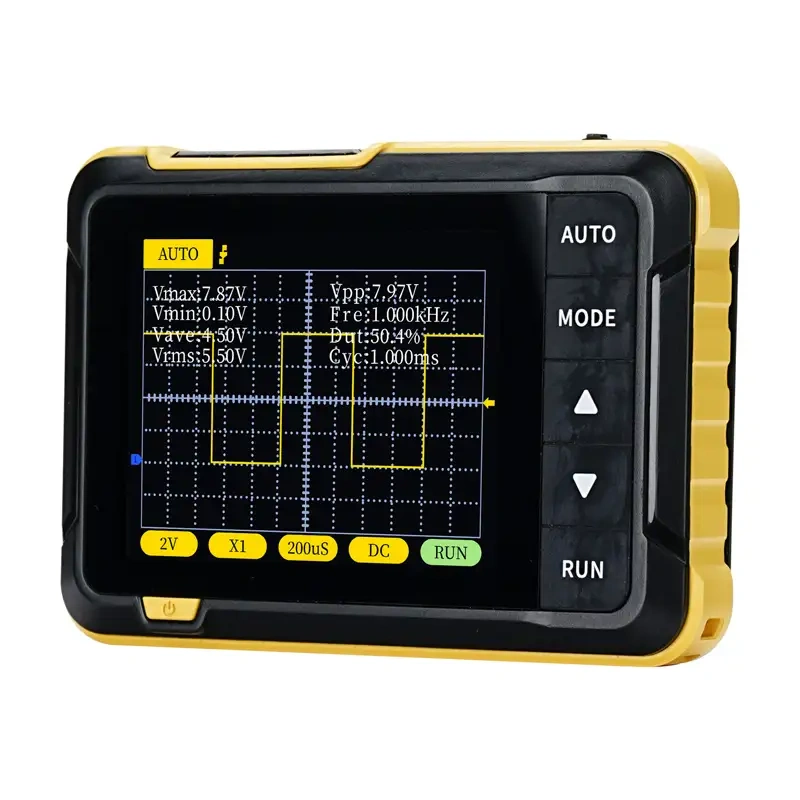

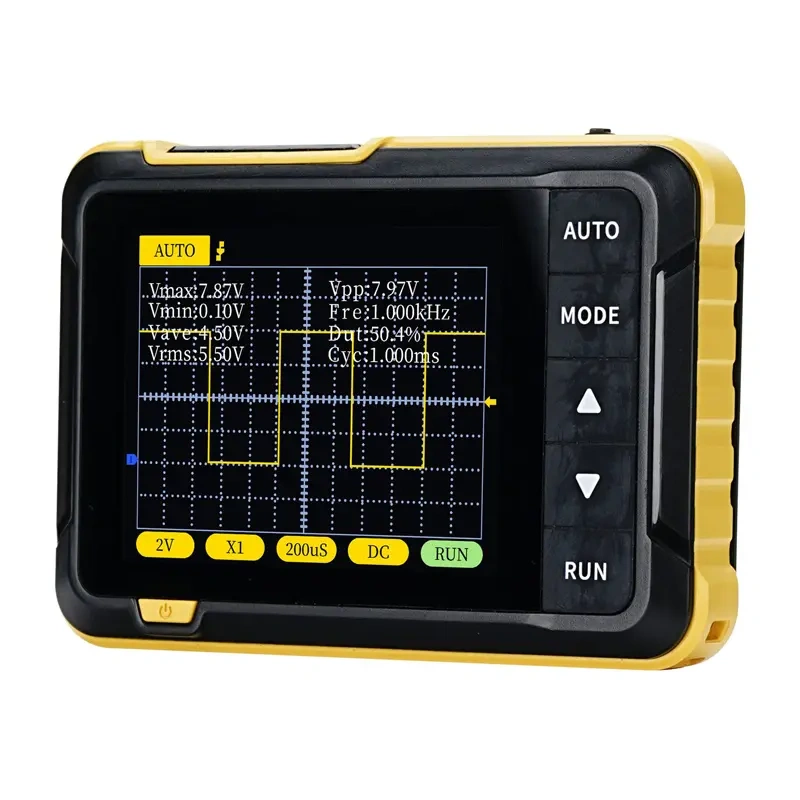

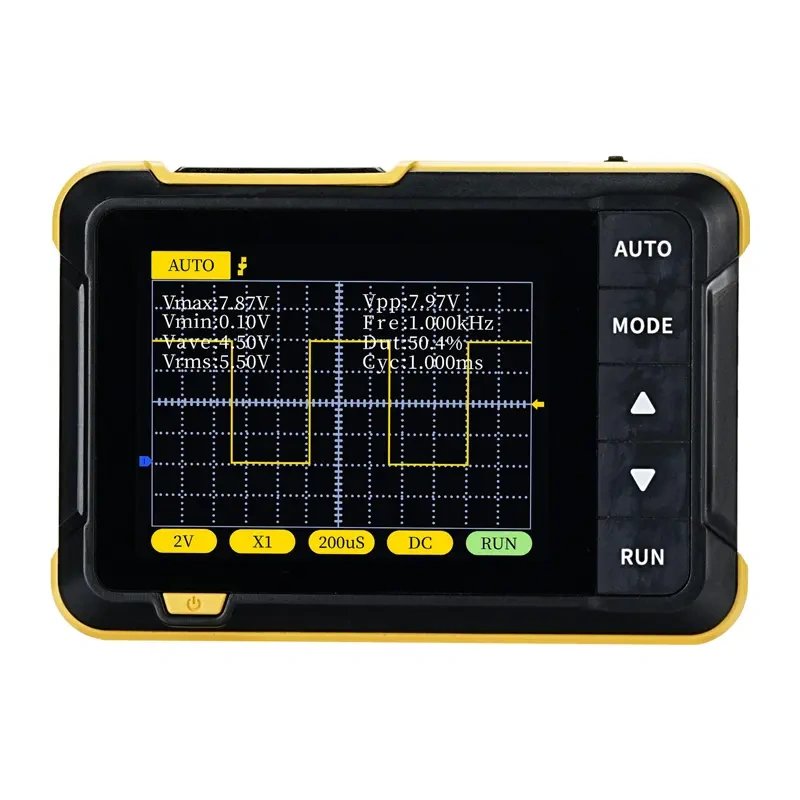

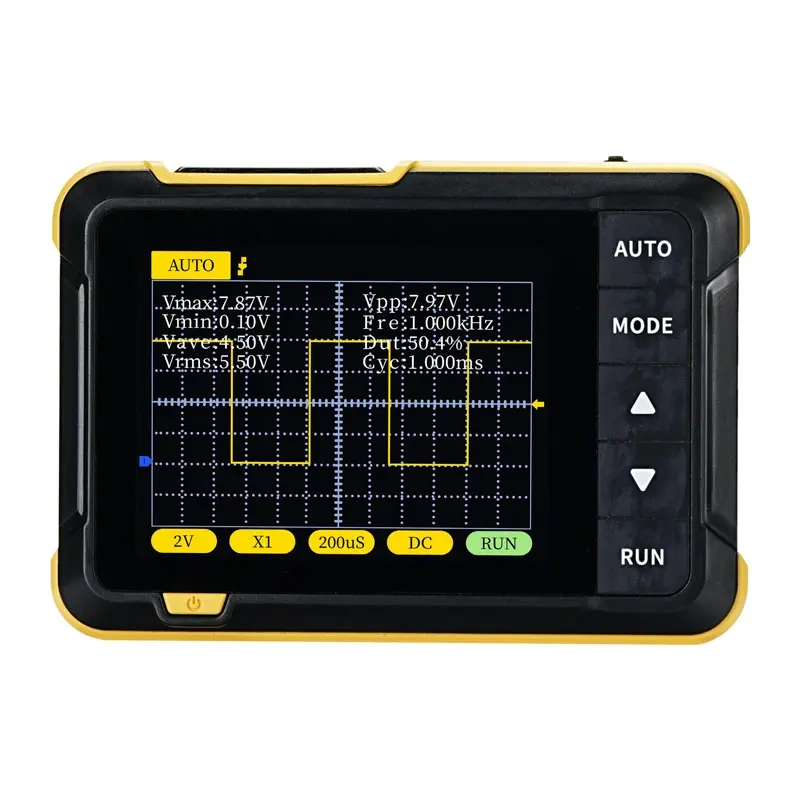

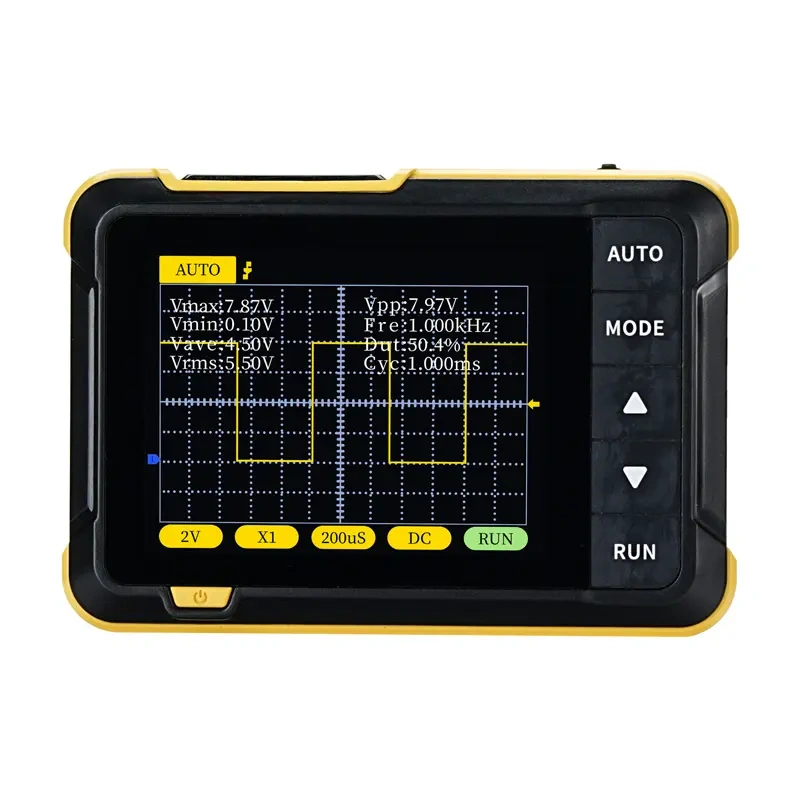

FNIRSI DSO152 Portable Mini Digital Oscilloscope
Price: 32.40 €
| Products ID: | 175445 |
|---|---|
| Manufactured by: | Fnirsi |
| Availablity: | Ready to Order |
| Delivery Time | 5-10 business days |
| EAN: | 5907085526980 |
Delivery options to:
Choose country
The FNIRSI DSO152 is a pocket-sized digital oscilloscope designed for mobile maintenance, vehicle diagnostics, electronics education, and laboratory work.
Key Features
- 2.5MS/s real-time sampling rate and 200kHz analog bandwidth
- 2.8-inch color display with 320×240 resolution
- Built-in 1000mAh lithium battery rechargeable via USB-C
- One-button automatic waveform parameter adjustment
- Integrated 1kHz square wave calibration signal generator

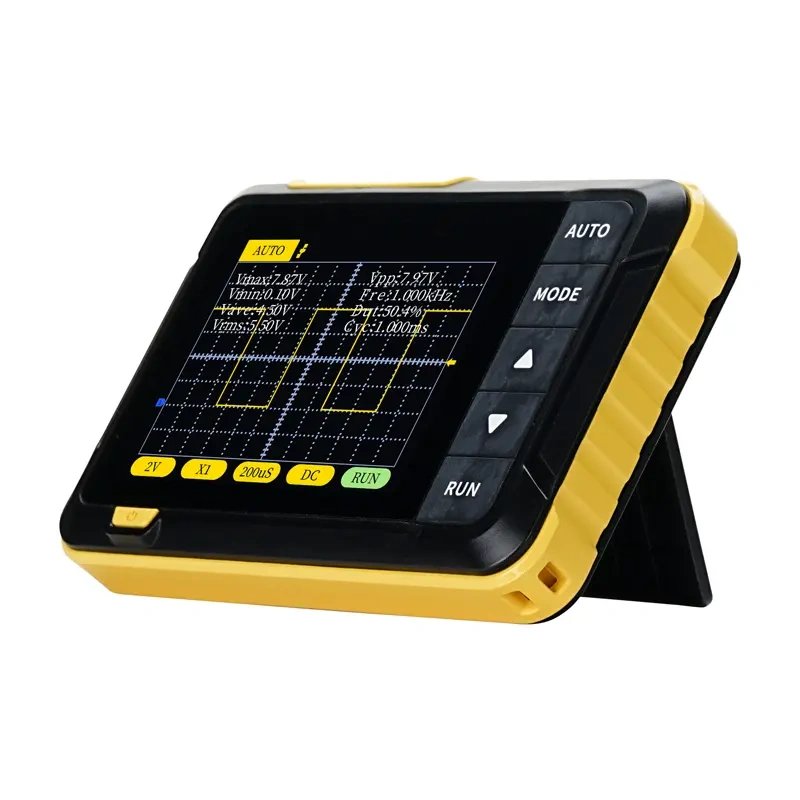

- Built-in kickstand for hands-free 90° desktop positioning
| Manufacturer | FNIRSI |
|---|---|
| Model | DSO152 |
| Bandwidth | 200kHz |
| Sampling frequency | 2.5MS/s |
| Vertical sensitivity | 10mV/Div-20V/Div |
| Voltage range | X1: ±400V (Vpp: 800V), X10: ±40V (Vpp: 800V) |
| Trigger modes | Auto / Normal / Single |
| Coupling type | AC / DC |
| Display | 2.8 inches (320×240) |
| Battery capacity | 1000 mAh |
| Charging input | USB-C (5V/1A) |
| Test signal | 1kHz (50% duty cycle) |
| Dimensions | 99 × 68.3 × 19.5 mm |
| Weight | 100 g |
What is included in the package?
The package includes the FNIRSI DSO152 portable mini oscilloscope, a probe with crocodile clamps, a charging cable, and a user manual.
Can the device firmware be updated?
Yes, the USB-C port supports both 5V/1A charging and firmware updates.
