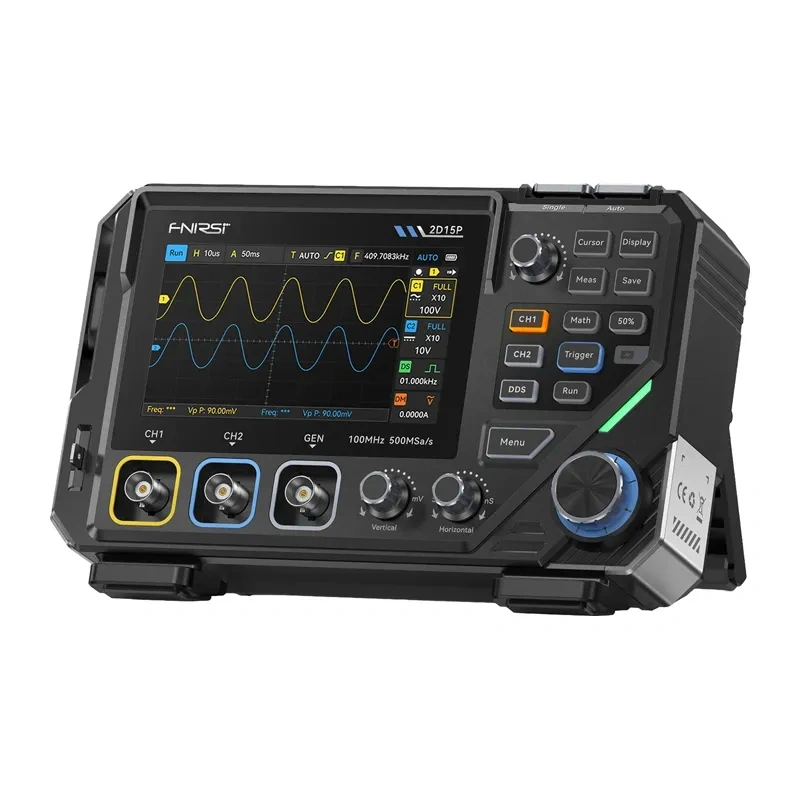

FNIRSI 2D15P Digital Oscilloscope 100 MHz 2CH with Multimeter & Signal Generator

Price: 177.20 €

Products ID:	177241
Manufactured by:	Fnirsi
Availablity:	Ready to Order
Delivery Time	5-10 business days
EAN:	5905156108226

Delivery options to:

Choose country

The FNIRSI 2D15P is a portable 3-in-1 test instrument combining a dual-channel oscilloscope, a True RMS multimeter, and a DDS signal generator for diagnostic, laboratory, and service work.

Key Features

Dual-channel oscilloscope with 100 MHz single-channel bandwidth and 500 MSa/s sampling rate
Built-in DDS signal generator up to 10 MHz with 11 standard waveforms
True RMS multimeter with 19,999 counts resolution for voltage, current, resistance, and capacitance
4.3-inch IPS touchscreen display combined with physical control buttons
Integrated 5000 mAh rechargeable battery with USB-C charging
Waveform recording, real-time math operations, and data export capability

Manufacturer	FNIRSI
Model	2D15P
Channels	Dual-channel
Sampling rate	500 MSa/s
Analog bandwidth	100 MHz
Memory depth	10K, 100K, 1M
Input impedance	1 MΩ
Time scale range	5 ns – 50 s
Vertical sensitivity	10 mV – 10 V/div
Maximum input voltage	800 V (x10 probe)
Trigger mode	Automatic, Normal, Single
Trigger type	Rising, falling, both edges
Display mode	Point, vector, color temperature
Connector	AC/DC
Dwell time	min / 2 s / 5 s / 10 s / 20 s / 50 s / ∞
Mathematical operations	Supported
Waveform recording	Supported
Waveform export	Supported
Cursor measurement	Supported

What is included in the package?

The package includes the 2D15P oscilloscope, two P6100 probes, a multimeter probe, an alligator clip probe, a USB data transfer cable, and a user manual.

What battery capacity does the FNIRSI 2D15P have?

The device features a built-in 5000 mAh rechargeable battery and charges via a standard USB-C port.
