Digital Multimeter Habotest HT118E True RMS NCV
43.80 €
Habotest
Products ID: 176899
In supplier warehouse
Available to order: 10+ pcs.
Delivery Time 5–12 business days
Delivery options to:

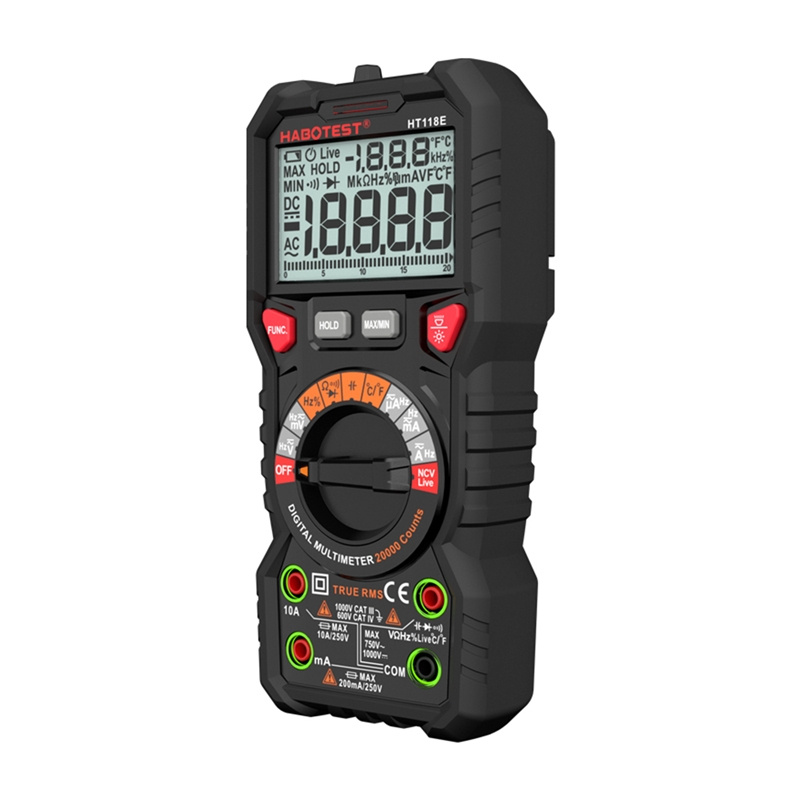

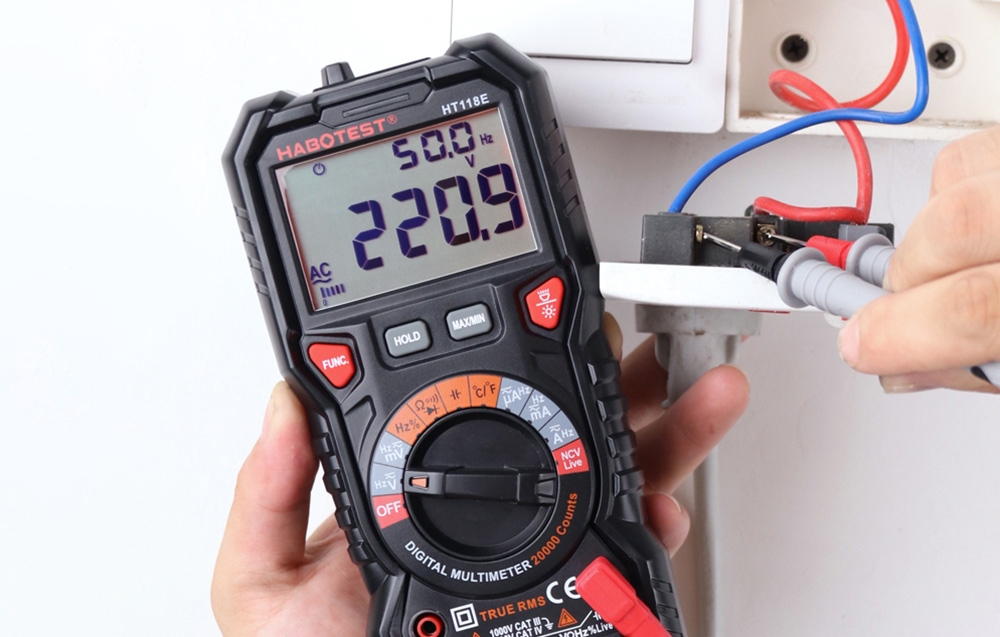

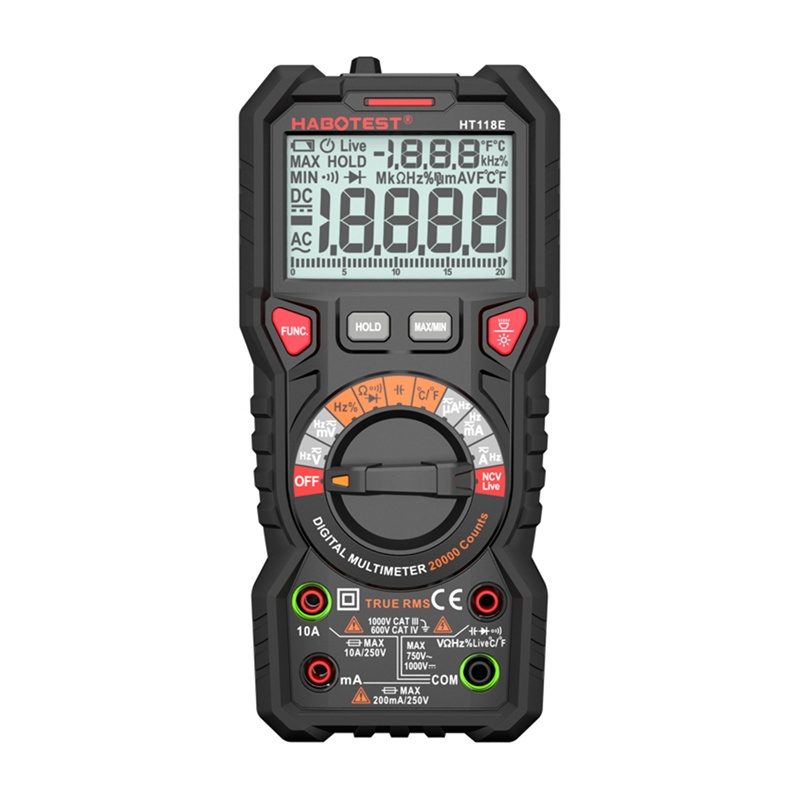

Choose countryThe Habotest HT118E is a versatile digital multimeter featuring 20,000 counts for accurate measurements of AC/DC voltage, current, resistance, capacitance, frequency, and temperature.
Key Features
- True RMS measurement for high reading precision
- Non-contact voltage detection (NCV) and Live Test with audio and visual alarms
- 2.7-inch LCD screen with dual backlighting warning of high voltage

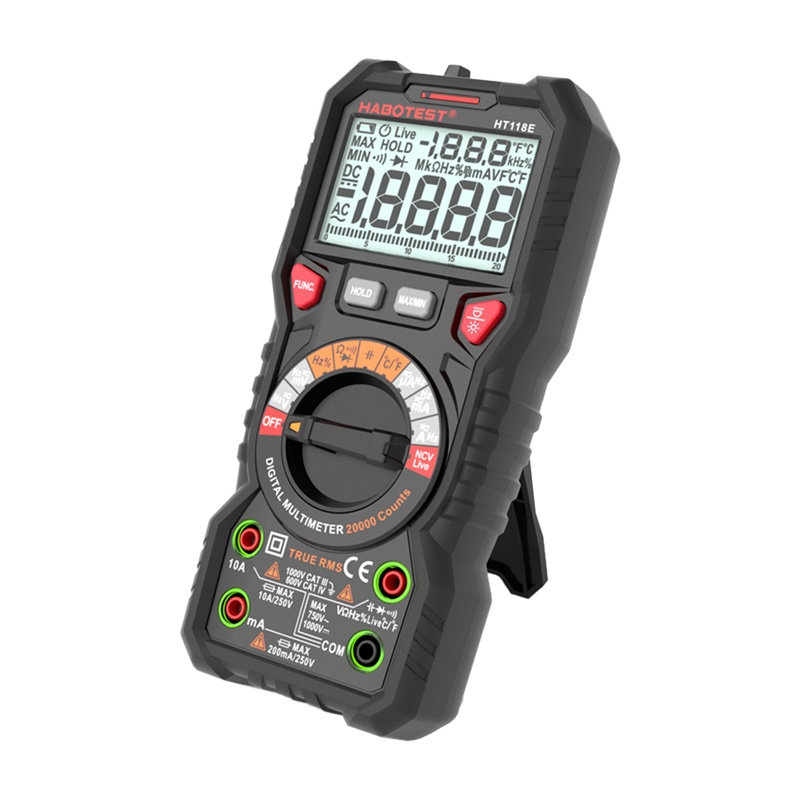

- Integrated LED flashlight and practical kickstand
- Double fuse design rated for CAT III 1000V and CAT IV 600V safety
| DC voltage | 200mV / 2V / 20V / 200V / 1000V |
|---|---|
| AC voltage | 200mV / 2V / 20V / 200V / 750V |
| DC current | 200μA / 2000μA / 20mA / 200mA / 10A |
| AC current | 200μA / 2000μA / 20mA / 200mA / 10A |
| Resistance | 200Ω / 2kΩ / 20kΩ / 200kΩ / 2MΩ / 20MΩ / 100MΩ |
| Capacitance | 20nF / 200nF / 2μF / 20μF / 200μF / 2mF |
| Frequency | 200Hz / 2kHz / 20kHz / 200kHz / 2MHz / 20MHz |
| Temperature range | from -20°C to 1000°C |
| Sampling frequency | ~3 times/second |
| Number of counts | 20 000 |
| Display | 2.7" LCD |
| Dual backlight | yes |
| Live Test | yes, audible and light alarm |
| Non-contact voltage detection (NCV) | yes, audible and light alarm |
| Diode testing | yes |
| Max/min value measurement | yes |
| Data storage | yes |
| True RMS | yes |
| Frequency response | 1kHz |
| Automatic shutdown | yes |
| Low battery indicator | yes |
| Active jack indicator | yes |
| LED flashlight | yes |
| Power supply | 2x AA battery |
| Housing material | ABS with silicone protective cover |
| Safety standards | EN61010-1, -2-030, EN61010-2-033, EN61326-1, CAT III 1000V, CAT IV 600V |
| EAN | 5907085524382 |
|---|
What is included with the Habotest HT118E multimeter?

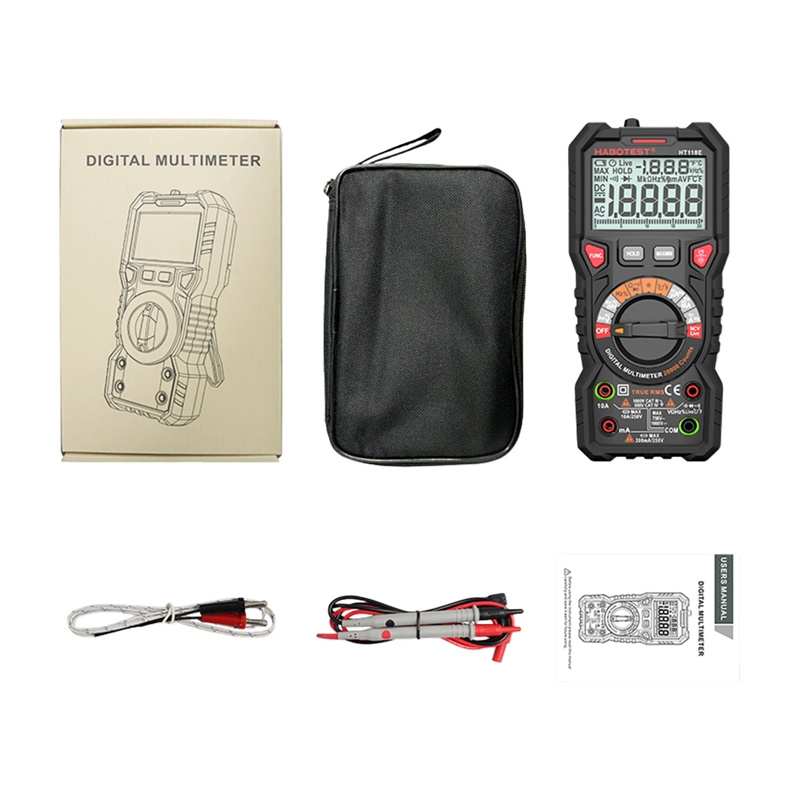

The package includes the Habotest HT118E digital multimeter, 2 measurement cables (red and black), a temperature thermocouple, 2 AA batteries, and a protective cover.
Does the HT118E support automatic power off?
Yes, the multimeter has an automatic shut-off function that turns the device off after 15 minutes of inactivity.
