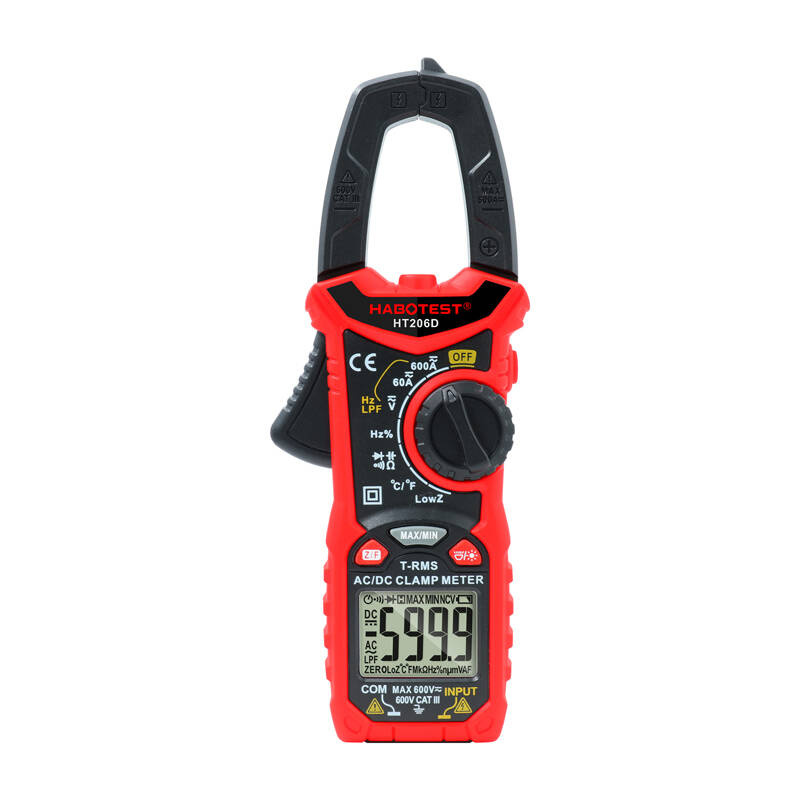

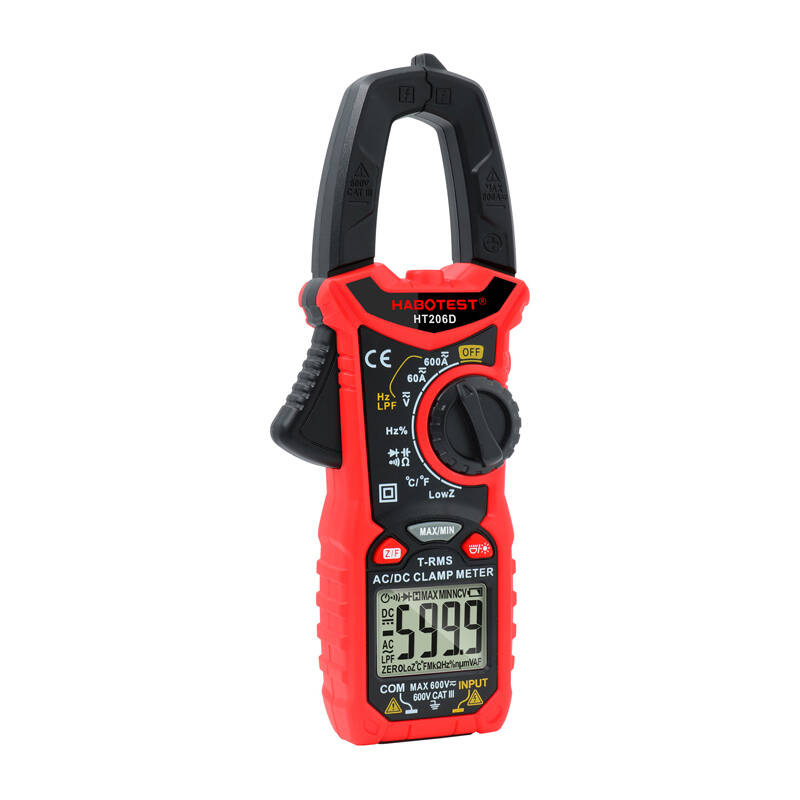

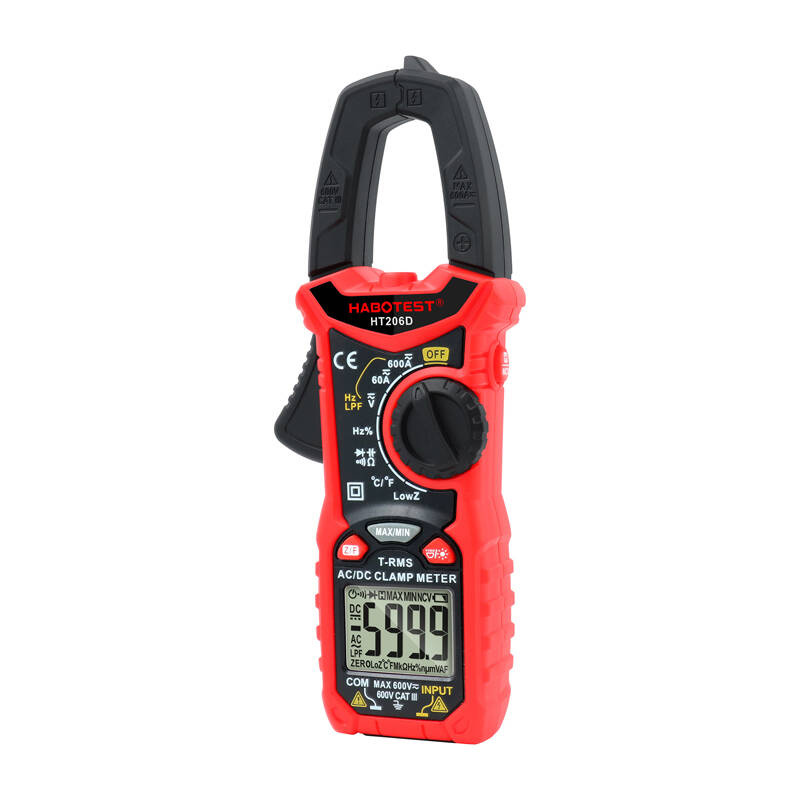

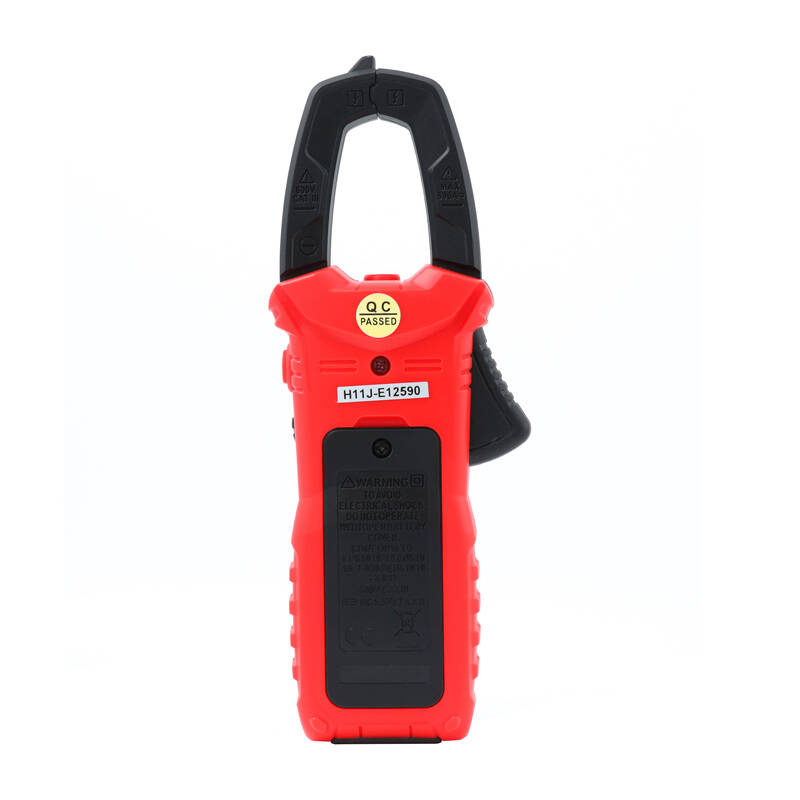

Digital Clamp Meter Habotest HT206D True RMS NCV LPF

Price: 38.70 €

The Habotest HT206D is a digital clamp meter featuring an easy-to-read backlit LCD display and 26 mm jaw capacity for versatile electrical testing.

Key Features

Measures AC/DC voltage, AC/DC current, resistance, capacitance, frequency, and temperature
Non-contact voltage detection (NCV) with audible and visual alerts
True RMS measurement and LPF function
LCD screen with 2-color backlight that changes to orange when exceeding 80 V or 3 A
Built-in flashlight for working in dimly lit areas
Data storage (Data Hold) and MAX/MIN measurement functions

Manufacturer	Habotest
Model	HT206D
Counts	6000
DC voltage measurement range	600 mV/6 V/60 V/600 V ±(0.5%+5)
AC voltage measurement range	6 V/60 V/600 V ±(0.8%+5)
DC current measurement range	60 A/600 A ±(2.5%+5)
AC current measurement range	60 A/600 A ±(2.5%+5)
Resistance measurement range	600 Ω/6 kΩ/60 kΩ/600 kΩ/6 MΩ/60 MΩ ±(1.0%+5)
Capacitance measurement range	10 nF/100 nF/1 μF/10 μF/100 μF/1 mF/10 mF/100 mF ±(4.0%+3)
Frequency measurement range	10 Hz/100 Hz/1 kHz/10 kHz/100 kHz/1 MHz/10 MHz ±(1.0%+3)
Fill factor measurement range	1%-99% ±(3.0%+3)
Temperature measurement range	-40°C-1000°C ±(1.0%+2); -40°F-1832°C ±(1.0%+2)
Jaw size	∅26x44 mm
Range selection	Automatic
NCV	Yes, audible and light alarm
True RMS	Yes
LPF	Yes
Power supply	2x AAA 1.5V battery (included)
Dimensions	193x73x34 mm
Weight	Approx. 260 g
Safety standard	EN61010-1 -2-030; EN61010-2-033, EN61326-1 CAT III 600V
