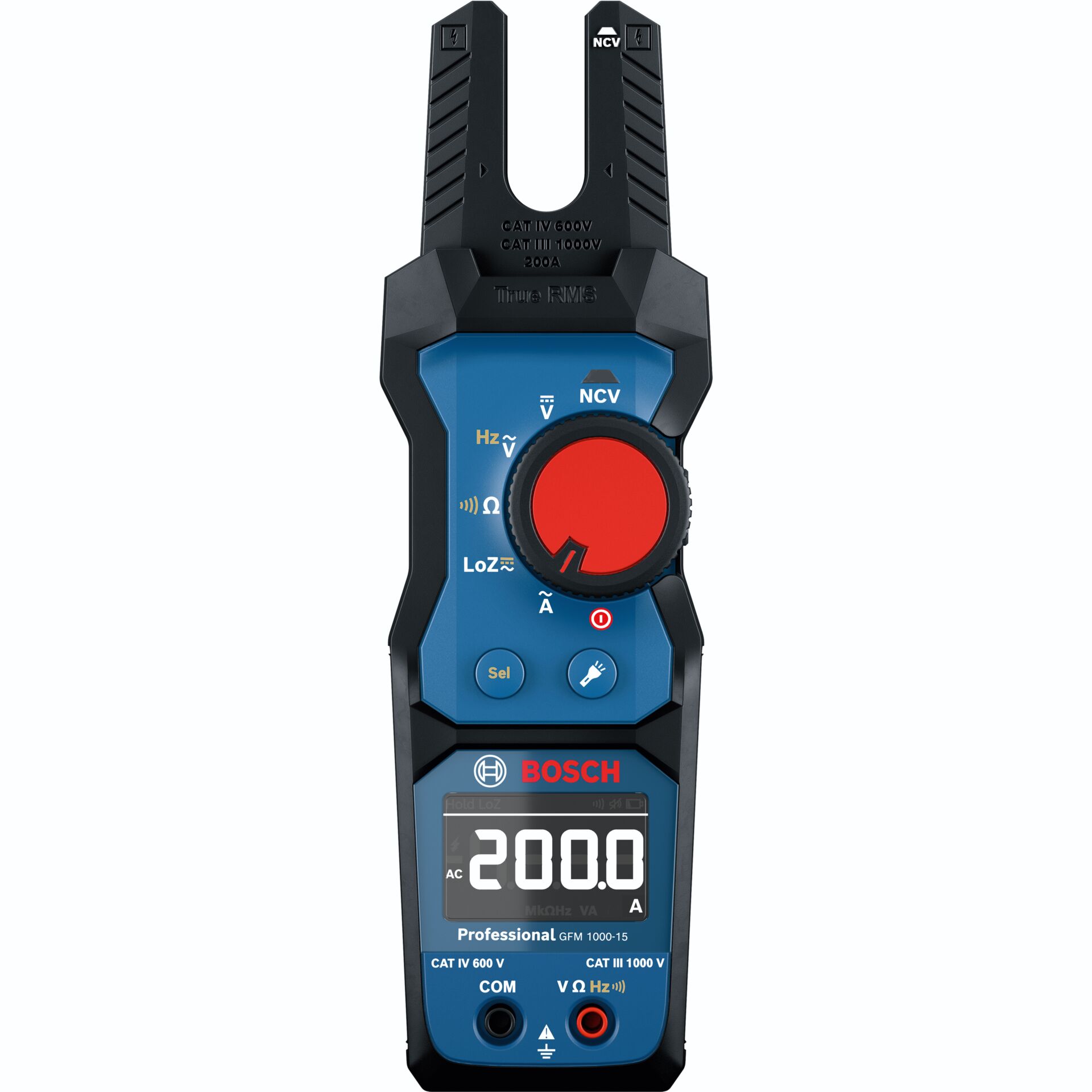

Bosch GFM 1000-15 Open-Jaw Fork Clamp Meter, True RMS, 200 A, 1000 V
Price: 182.70 €
| Products ID: | 181000 |
|---|---|
| Manufactured by: | Bosch |
| Availablity: | Ready to Order |
| Delivery Time | 7-15 business days |
| EAN: | 4053423330625 |
Delivery options to:
Choose country
The Bosch GFM 1000-15 is a professional fork clamp meter and voltage tester engineered for quick testing of alternating current and AC/DC voltage. Its open-jaw design enables AC measurements up to 200 A without test leads.
Key Features
- Open-jaw design for measuring AC current up to 200 A without test leads
- Measures AC/DC voltage up to 1000 V with integrated LoZ V AC/DC function
- True RMS measurement method for accurate readings
- Resistance testing up to 60 000 000 ohms, continuity testing, and frequency testing
- Inverted LCD display, built-in flashlight, and acoustic feedback
- Rugged construction with IP54 ingress protection and CAT III 1000 V / CAT IV 600 V ratings
| Voltage measurement range | 0 - 1000 V |
|---|---|
| AC current measurement | Up to 200 A |
| Measurement method | True RMS |
| Resistance | 60 000 000 ohms |
| Frequency range | 10 Hz - 50 kHz |
| Measurement category | CAT III 1000 V / CAT IV 600 V |
| Protection class | IP54 |
| Display | Inverted LCD |
| Power supply | 2x AA battery |
| Dimensions | 69 x 50 x 226 mm |
| Colour | Black / blue |
What type of batteries does the meter require?
The meter is powered by 2 AA batteries.
What is the maximum current that can be measured with the open clamp?
The open-jaw clamp allows measurement of alternating current (AC) up to 200 A without using test leads.
What is the IP protection rating of this device?
The device features an IP54 protection class against dust and splashing water.
