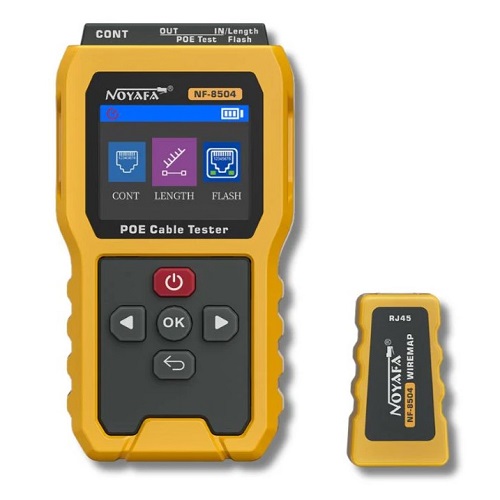

PoE Network Cable Tester with Color LCD Screen
Price: 71.50 €
| Products ID: | 172336 |
|---|---|
| Manufactured by: | Noyafa |
| Availablity: | Ready to Order |
| Delivery Time | 5-10 business days |
| EAN: | 9990000993284 |
Delivery options to:
Choose countryA smart network cable tester designed for Ethernet cable diagnostics and PoE power analysis, complete with a main transmitter and detachable remote unit.
Key Features

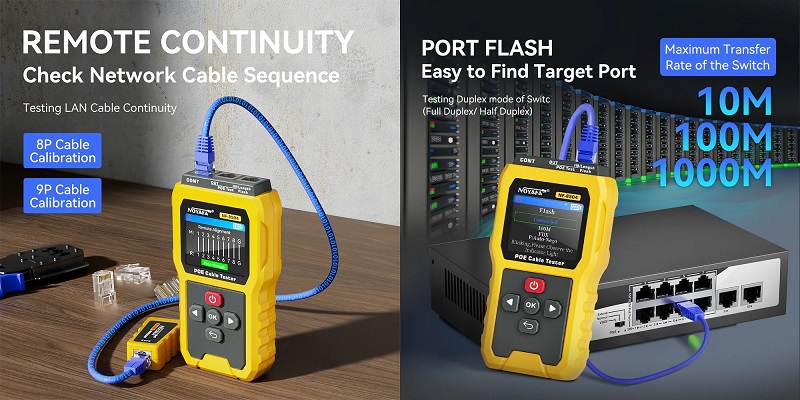

- Checks CAT5 and CAT6 STP/UTP cables for continuity, shorts, opens, and miswiring

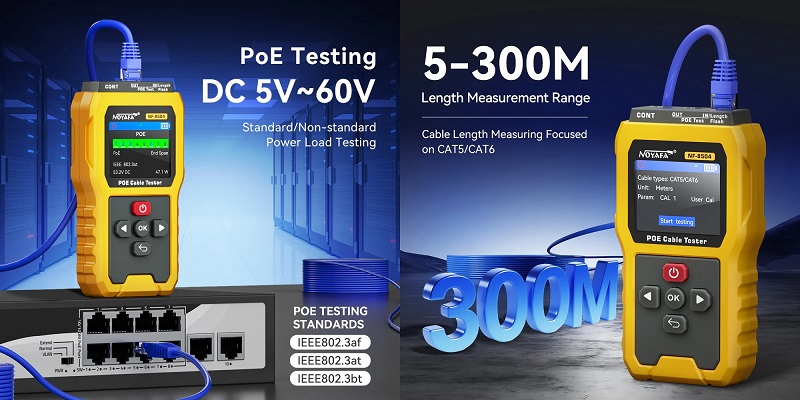

- Analyzes PoE standards (IEEE 802.3af/at/bt or non-standard) and measures DC 5–60 V

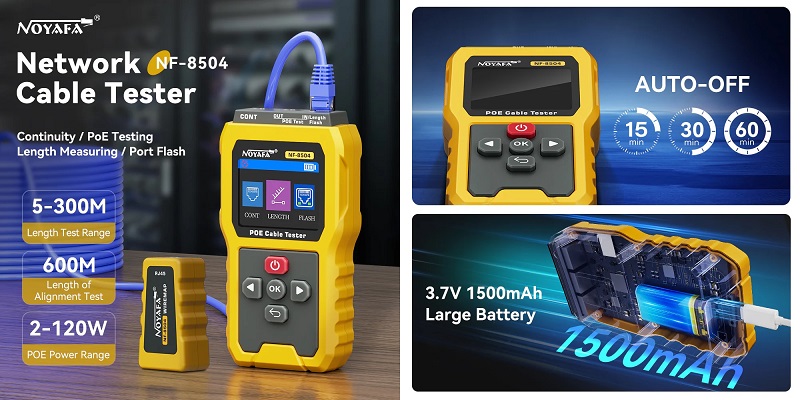

- Measures cable length from 5 to 300 m to locate distance to breaks
- Port flash function supports 10/100/1000 Mbps switch port identification
- Equipped with a 2.4-inch backlit color LCD and a rechargeable 1500 mAh battery
| Supported Cables | CAT5, CAT6 (STP, UTP) |
|---|---|
| Cable Length Measurement Range | 5–300 m |
| PoE Voltage Range | DC 5–60V |
| PoE Standard Detection | Standard / Non-standard; IEEE 802.3af / IEEE 802.3at / IEEE 802.3bt |
| Power Measurement Range | 2–80 W |
| Voltage Protection | DC 60V |
| Network Speed Support | 10 Mbps / 100 Mbps / 1000 Mbps |
| Display | 2.4-inch color LCD with backlight |
| Power Supply | Built-in 3.7V 1500mAh lithium-ion battery (USB Type-C) |
| Auto Power-off Options | 5 / 15 / 30 / 60 minutes |
| Remote Unit Port | RJ45 |
| Dimensions | 138.5 mm x 76 mm x 30 mm |
| Weight | 400 g |
Which PoE standards does this tester detect?
It detects IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, as well as non-standard PoE loads.
What is the cable length measurement range?
The tester can measure cable length and locate faults within a range of 5 to 300 meters.
How is the device powered?
It is powered by a built-in 3.7V 1500mAh rechargeable lithium-ion battery via USB Type-C.
