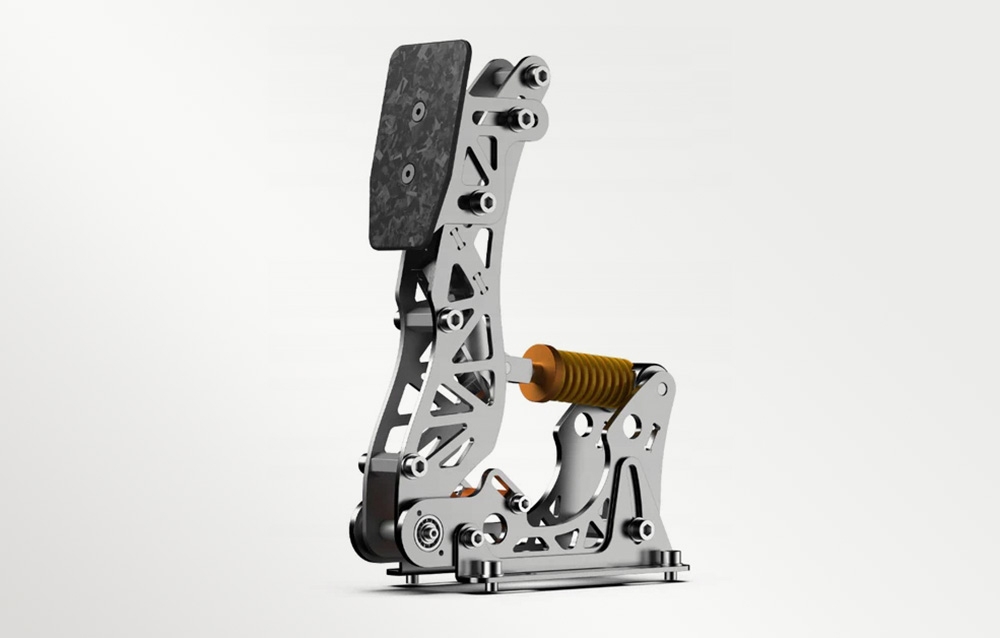

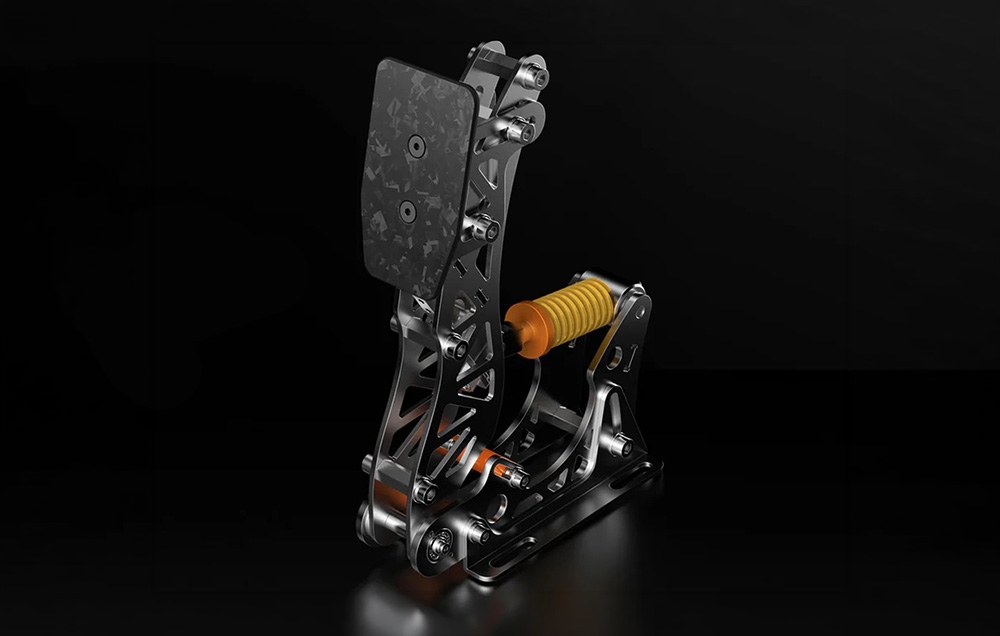

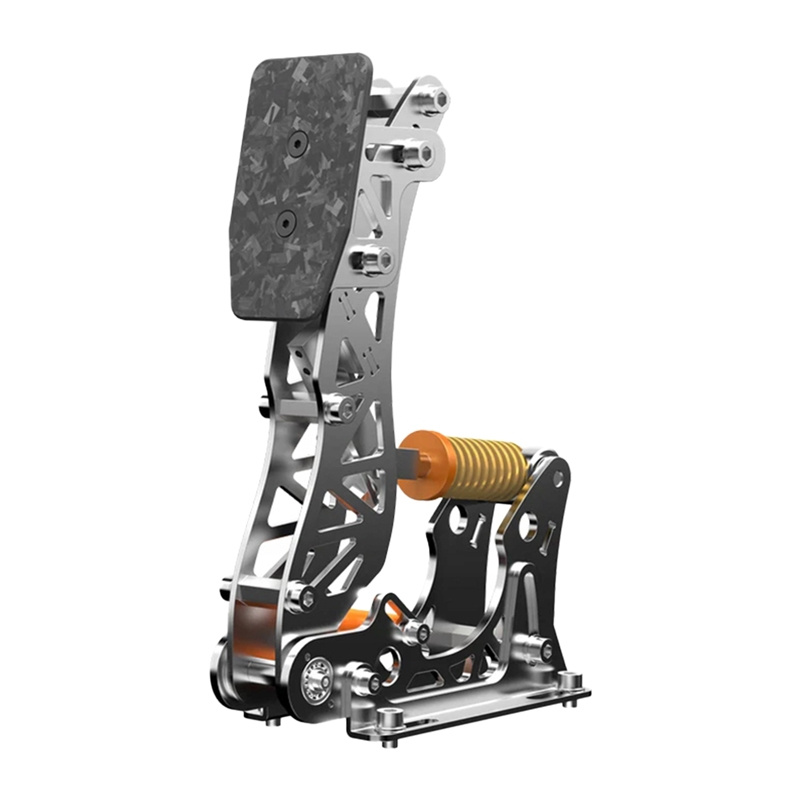

PXN Vector X Gaming Clutch Pedal PD LP C
Price: 111.00 €
| Products ID: | 177784 |
|---|---|
| Manufactured by: | PXN |
| Availablity: | Ready to Order |
| Delivery Time | 5-10 business days |
| EAN: | 6948052904249 |
Delivery options to:

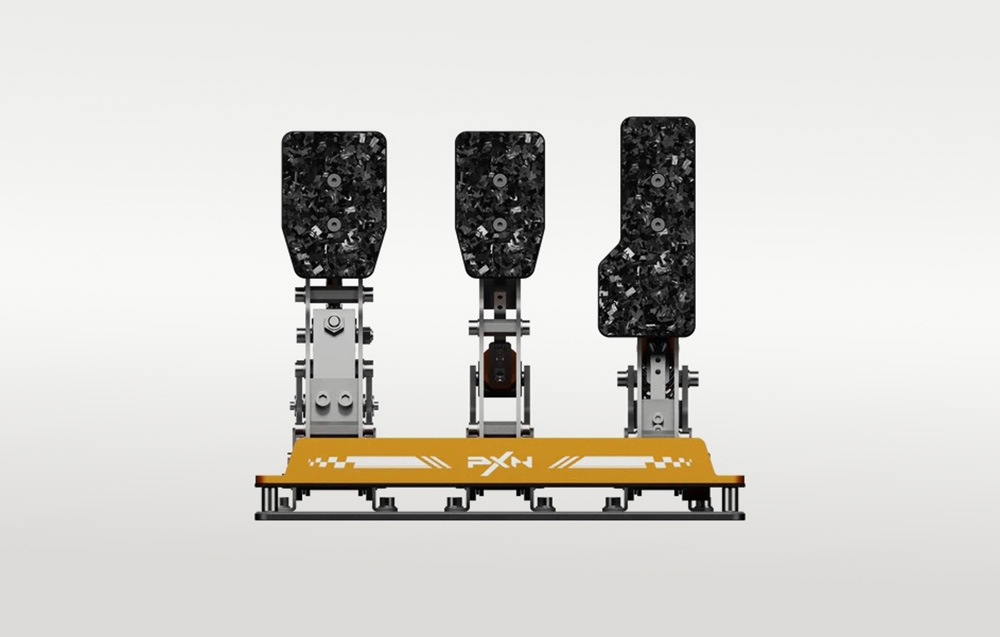

Choose countryThe PXN Vector X PD LP C is an add-on clutch pedal module designed to expand the PXN Vector X Pedals set to a three-pedal configuration for PC racing simulators.
Key Features
- 30 kg load cell sensor for real-time pressure measurement
- 24-bit resolution supporting up to 16,777,216 signal levels

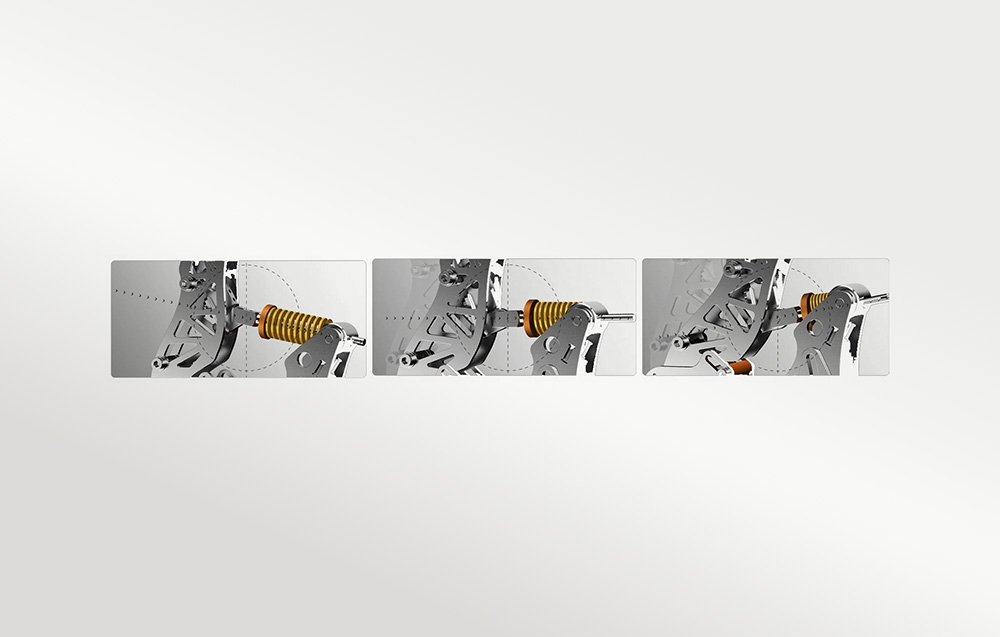

- Two-stage linkage mechanism with a progressive three-phase curve
- Adjustable resistance ranging from 0 to 30 kg
- Durable build with carbon fiber, 304 stainless steel, and 6061 aluminum
| Manufacturer | PXN |
|---|---|
| Model | PD LP C |
| Product Type | additional clutch pedal for sim racing |
| Compatibility | PXN Vector X Pedals |
| Platform | PC |
| Sensor type | Load Cell |
| Maximum sensor force | 30 kg |
| Force adjustment | 0–30 kg |
| Resolution | 24-bit (16,777,216 signal levels) |
| Operating Mechanism | two-stage linkage mechanism |
| Pressure Characteristics | progressive, three-phase operating curve |
| Materials | carbon fiber, 304 stainless steel, 6061 aluminum |
| Product dimensions | approx. 74 × 198 × 253 mm |
| Weight | approx. 1,450 g |
| Applications | sim racing, manual transmission, precision starts, gear shifting, driving practice |
What is this clutch pedal compatible with?
It is designed as an add-on for the PXN Vector X Pedals set on PC.
What sensor does the pedal use?
It uses a 30 kg load cell sensor with 24-bit resolution.
What is included in the package?
The package includes the PXN Gaming Clutch Pedal.
