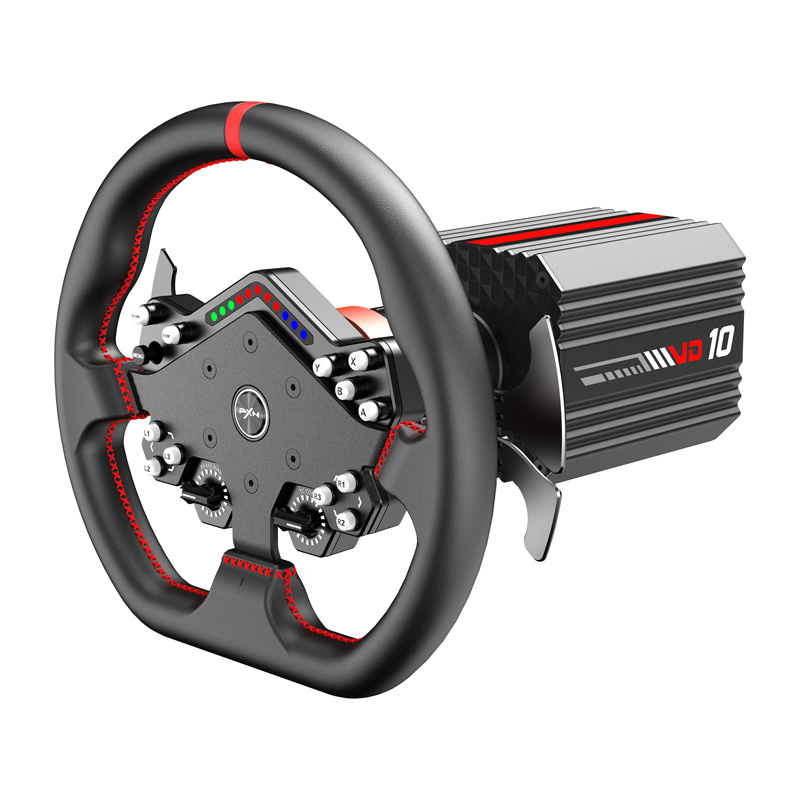

PXN VD10 DS Racing Steering Wheel and Direct Drive Base Bundle
Price: 426.30 €
| Products ID: | 176065 |
|---|---|
| Manufactured by: | PXN |
| Availablity: | Ready to Order |
| Delivery Time | 5-10 business days |
| EAN: | 6948052904072 |
Delivery options to:
Choose countryThe PXN VD10 DS is a complete PC racing simulation bundle combining a 10 Nm Direct Drive base with the ergonomic 300 mm WDS R2 steering wheel.
Key Features
- Direct Drive base with constant 10 Nm torque and 24-bit magnetic encoder

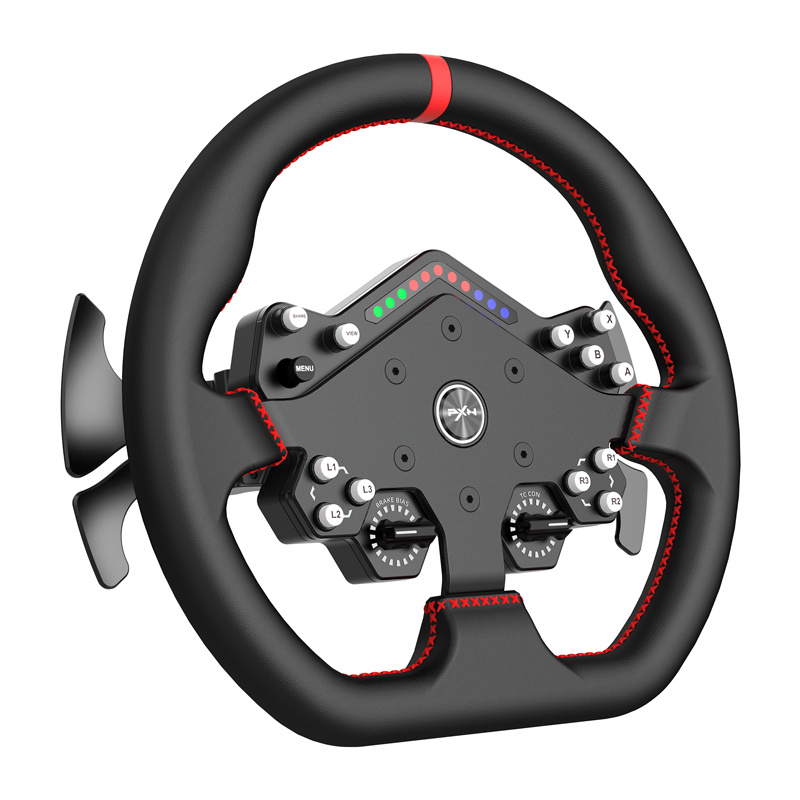

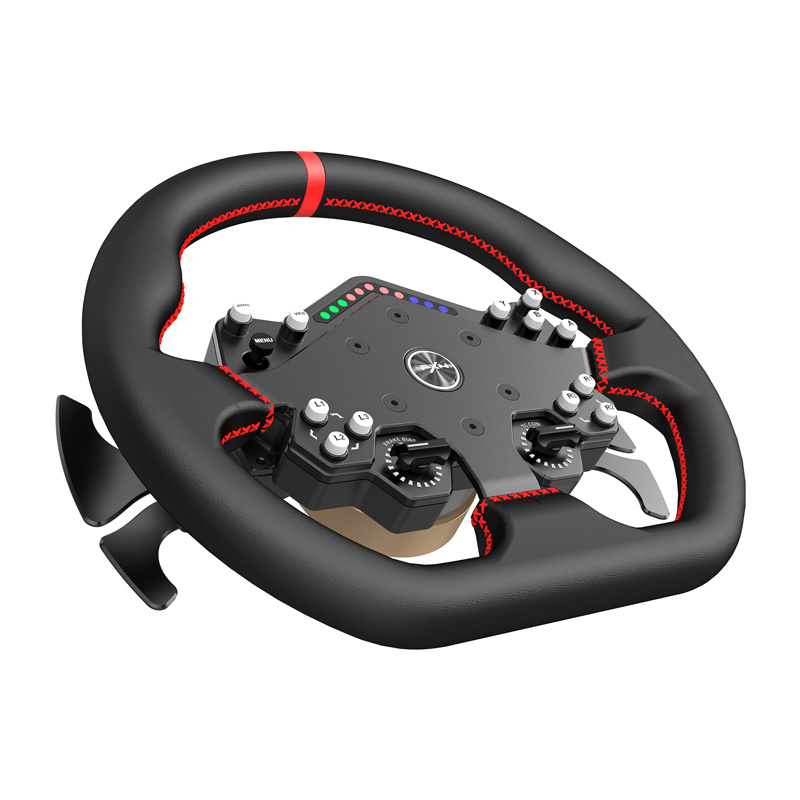

- 300 mm WDS R2 steering wheel with tool-free Quick Release system
- Aluminum paddle shifters powered by Hall effect sensors
- 13 programmable buttons, 11 customizable RGB LEDs, and 20-position rotary encoder
- Proprietary Sense+ algorithm for real-time telemetry and road feedback
- Aluminum housing with active cooling for optimal operating temperature
| Brand | PXN |
|---|---|
| Base Model | VD10 |
| Steering Wheel Model | WDS R2 |
| Torque | 10 Nm |
| Drive Type | Direct Drive |
| Encoder | 24-bit magnetic |
| Steering Wheel Diameter | 300 mm |
| Steering Wheel Dimensions | approx. 300 x 279 x 98 mm |
| Steering Wheel Weight | approx. 1450 g |
| Base Dimensions | approx. 258 × 125 × 125 mm |
| Base Weight | approx. 7400 g |
| Buttons | 13 programmable buttons (12 function + 1 PXN system) |
| RGB Illumination | 11 customizable RGB LEDs |
| Connectivity | USB-A to USB-C (wired base, wireless wheel transmission) |
| Operating Voltage | DC 24 V (motor), 5 V (USB) |
| Operating Current | 7.5 A (motor), ≤500 mA (USB) |
| Operating Temperature Range | 10–40°C |
| Operating Humidity Range | 20–80% |
What is included in the PXN VD10 DS bundle?
The package includes the VD10 base, WDS R2 steering wheel, power supply, USB-A to USB-C cable, accessory kit, key, 4 black silicone pads, and a user manual.
What is the peak torque output of the PXN VD10 base?
The PXN VD10 Direct Drive base delivers a constant torque of 10 Nm.
Does the steering wheel feature a quick release mechanism?
Yes, the WDS R2 steering wheel uses a Quick Release system for quick, tool-free detachment.
