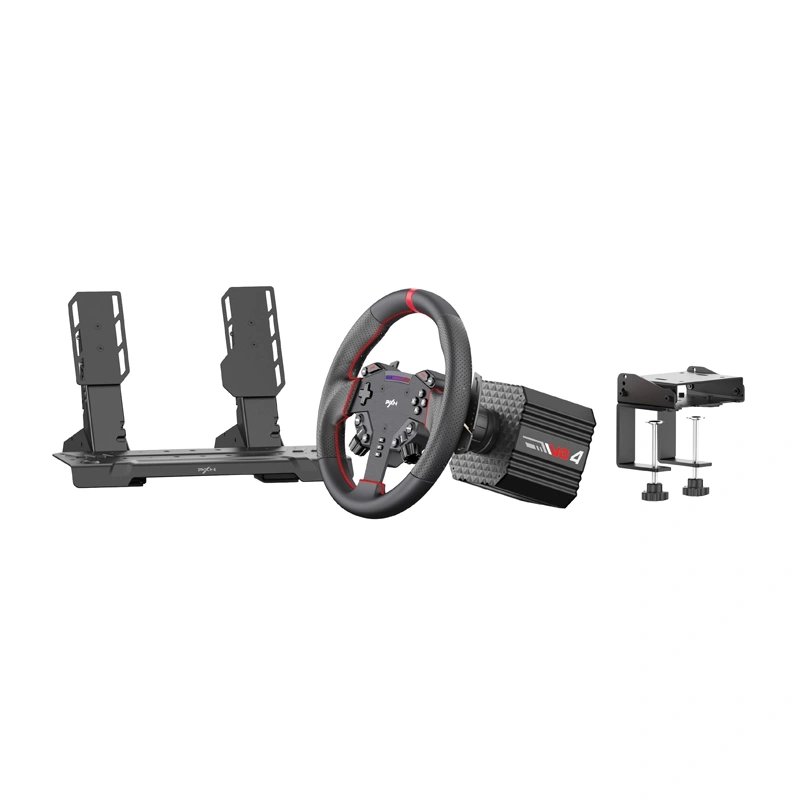

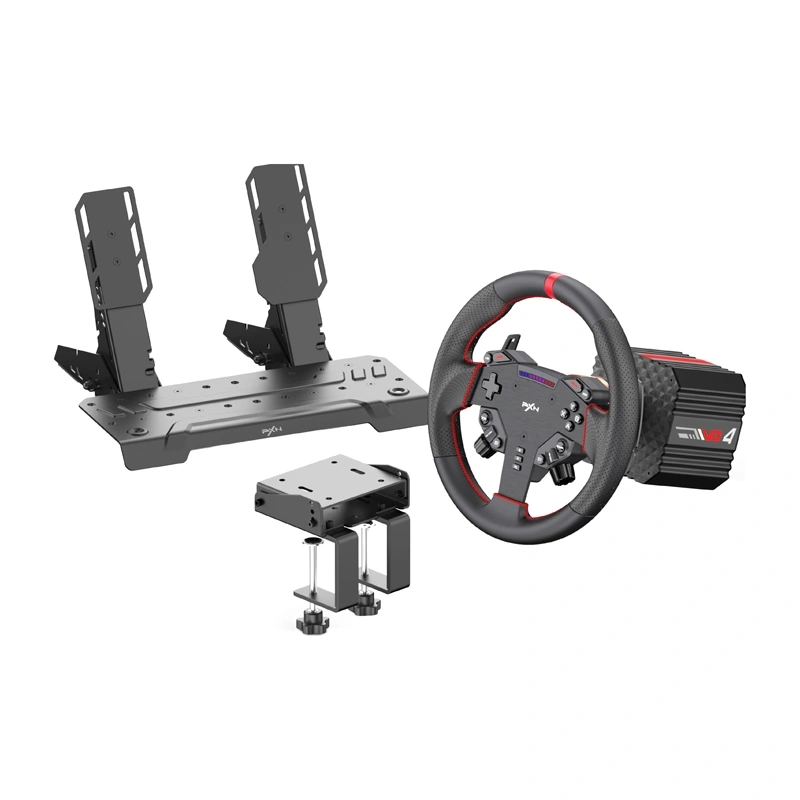

Direct Drive Gaming Wheel Set PXN VD4 Bundle EU with Pedals
Price: 312.00 €
| Products ID: | 176021 |
|---|---|
| Manufactured by: | PXN |
| Availablity: | Ready to Order |
| Delivery Time | 5-10 business days |
| EAN: | 6948052903839 |
Delivery options to:
Choose country
The PXN VD4 gaming set delivers a realistic driving experience for racing simulators, powered by a 4 Nm Direct Drive motor for instant response and detailed force feedback.
Key Features
- Direct Drive motor delivering a constant 4 Nm torque with less than 1 ms latency
- High-resolution 24-bit magnetic encoder and multi-core physics processing
- 11-inch (280 mm) ergonomic steering wheel with RGB lighting and dual shift paddles
- Adjustable accelerator and brake pedals powered by Hall Effect sensors
- Durable aluminum housing with active cooling system
- Z8 mounting bracket for quick installation on desks and simulator rigs
| Manufacturer | PXN |
|---|---|
| Model | VD4 Bundle EU |
| Drive Type | Direct Drive |
| Torque | 4 Nm |
| Encoder | 24-bit magnetic |
| Wheel Diameter | 280 mm (11 in) |
| Connection Method | Wired connection |
| Operating Voltage | DC 24 V (motor), 5 V (USB) |
| Current Consumption | 3 A (motor), ≤500 mA (USB) |
| Base Dimensions | approx. 175 × 125 × 125 mm |
| Wheel Dimensions | approx. 280 × 280 × 112 mm |
| Pedal Dimensions | approx. 350 × 342 × 222 mm |
| Base and Wheel Weight | approx. 4770 g |
| Pedal Weight | approx. 2943 g |
| Operating Temperature | 10–40°C |
| Operating Humidity | 20–80% |
What type of motor base does the PXN VD4 use?
It features a Direct Drive 20-pole servo motor providing a constant torque of 4 Nm with a 24-bit magnetic encoder.
How is the wheel base mounted to a desk?
The set includes a Z8 mounting bracket that secures the base to a tabletop or rig profile without extra tools.
Can the pedals be adjusted?
Yes, the Hall Effect brake and accelerator pedals allow adjustment of angle, height, and module positioning.
