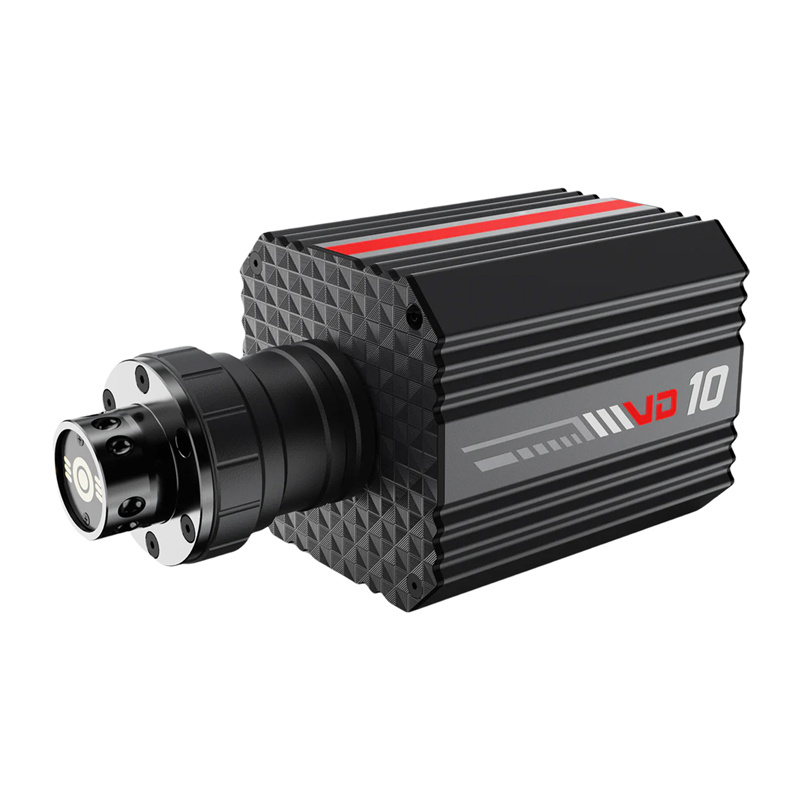

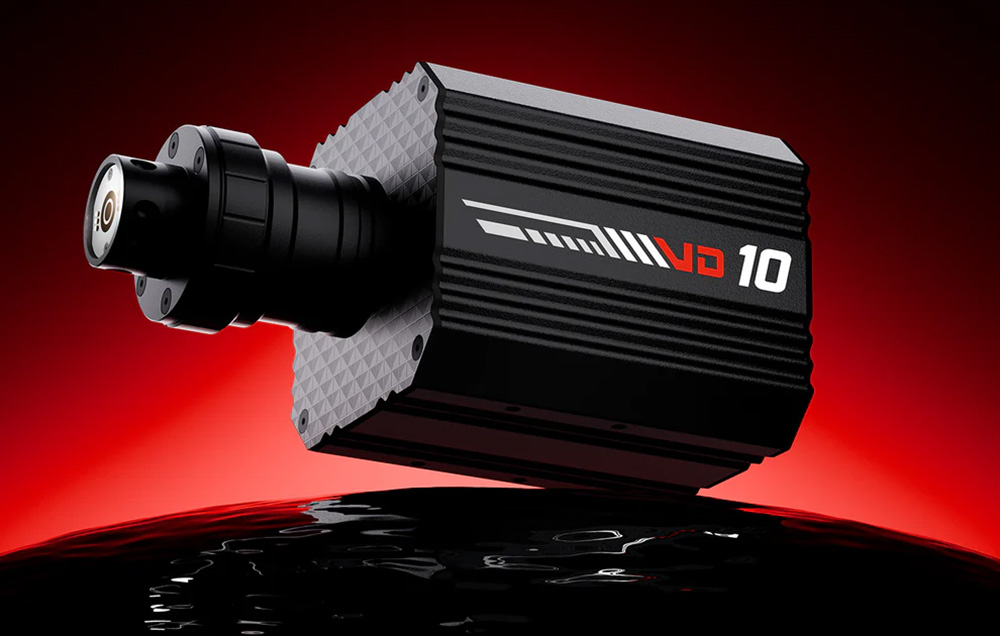

PXN VD10 Direct Drive Steering Wheel Base (PC Windows), 12 Nm
| Products ID: | 186401 |
|---|---|
| Manufactured by: | PXN |
| Availablity: | Ready to Order |
| Delivery Time | 5-12 business days |
| EAN: | 6948052903648 |
Delivery options to:
Choose countryThe PXN VD10 is a Direct Drive steering wheel base engineered for accurate and realistic vehicle handling in racing simulators on Windows PC systems.
Responsive Direct Drive Motor and Precise Control

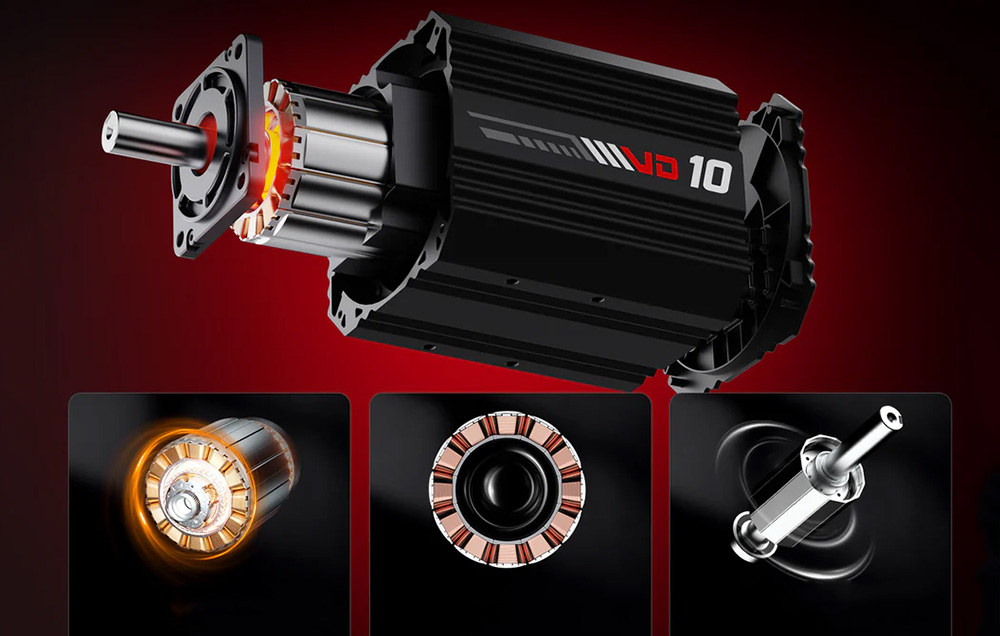

At the center of the PXN VD10 is a low-inertia Direct Drive servo motor operating at 95% efficiency, supported by an integrated rotor core running at up to 10,000 rpm. The unit delivers a constant torque of 10 Nm and a peak torque of 12 Nm. A 24-bit magnetic encoder registers 46,603 pulses per degree of rotation, achieving response accuracy under 1 ms.
Sense+ Algorithm and Intelligent Thermal Control

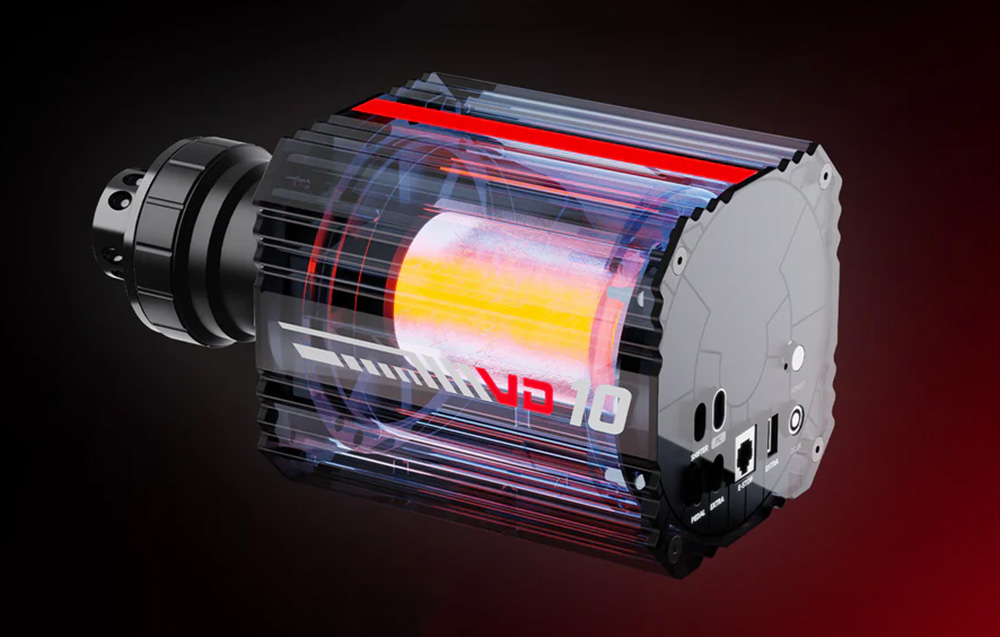

The proprietary PXN Sense+ algorithm processes real-time game telemetry, chassis dynamics, and track surface changes to deliver multilayered force feedback. An aluminum housing with temperature sensors and an active cooling system maintains steady operation at approximately 50°C during extended sessions, preventing torque fading.
PC Compatibility and Software Customization
The base connects via a wired connection and runs in D-input mode across Windows 7, 8, 10, and 11. Through the PXN SimRacing software, users can customize force feedback, calibrate pedals, optimize settings, and load ready-made game profiles.
| Manufacturer | PXN |
|---|---|
| Model | VD10 |
| Connection | Wired |
| Torque | Constant 10 Nm; peak 12 Nm |
| Algorithm | New algorithm dedicated to PXN |
| Shift blade material | Aluminum alloy |
| Motor resolution | 24 bits |
| Motor | Direct drive servo motor |
| Compatible platform | PC (Windows) |
| PC mode | D input |
Which operating systems are compatible with the PXN VD10 wheel base?
The PXN VD10 is compatible with Windows 7, 8, 10, and 11 PCs and operates in D-input mode.
What are the torque specifications for the PXN VD10?
The base provides a constant torque of 10 Nm and reaches a peak torque of 12 Nm.
How is the wheel base configured?
Configuration is handled via the PXN SimRacing software, which allows users to tune force feedback parameters, calibrate pedals, and manage game profiles.
