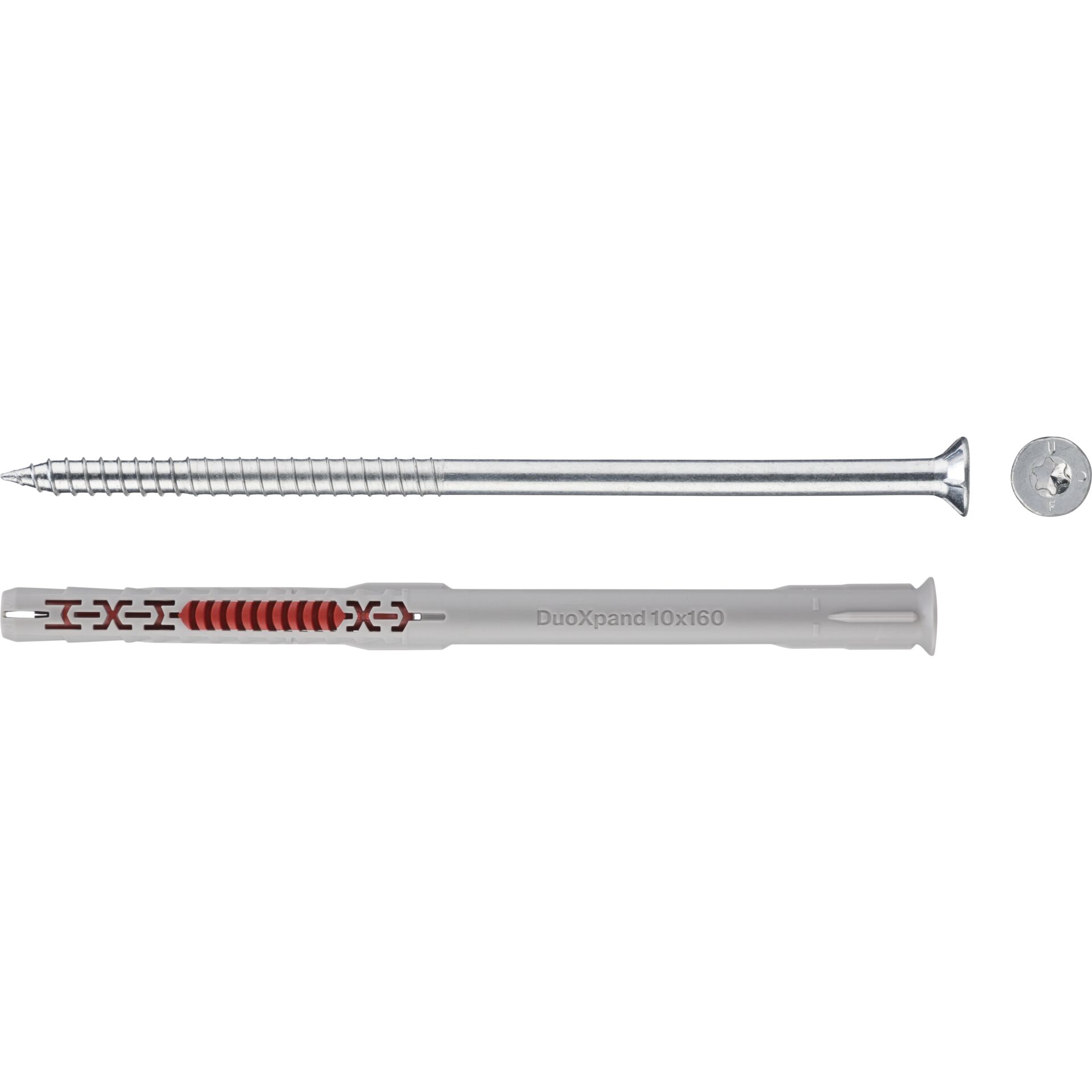

Frame Fixing Plug Fischer DuoXpand 10x160 T with Screw, 50 pcs
98.10 €
Products ID: 185057
In supplier warehouse
Available to order: 2 pcs.
Delivery Time 7–15 business days
Delivery options to:
Choose countryThe Fischer DuoXpand 10x160 T is a versatile frame fixing plug supplied with a preassembled countersunk head safety screw for reliable fastening in various building materials.
Key Features
- Special lamella geometry expands gently in the substrate to prevent fractures and allow edge-close anchoring
- Preassembled safety screw with TX40 star drive for secure installation

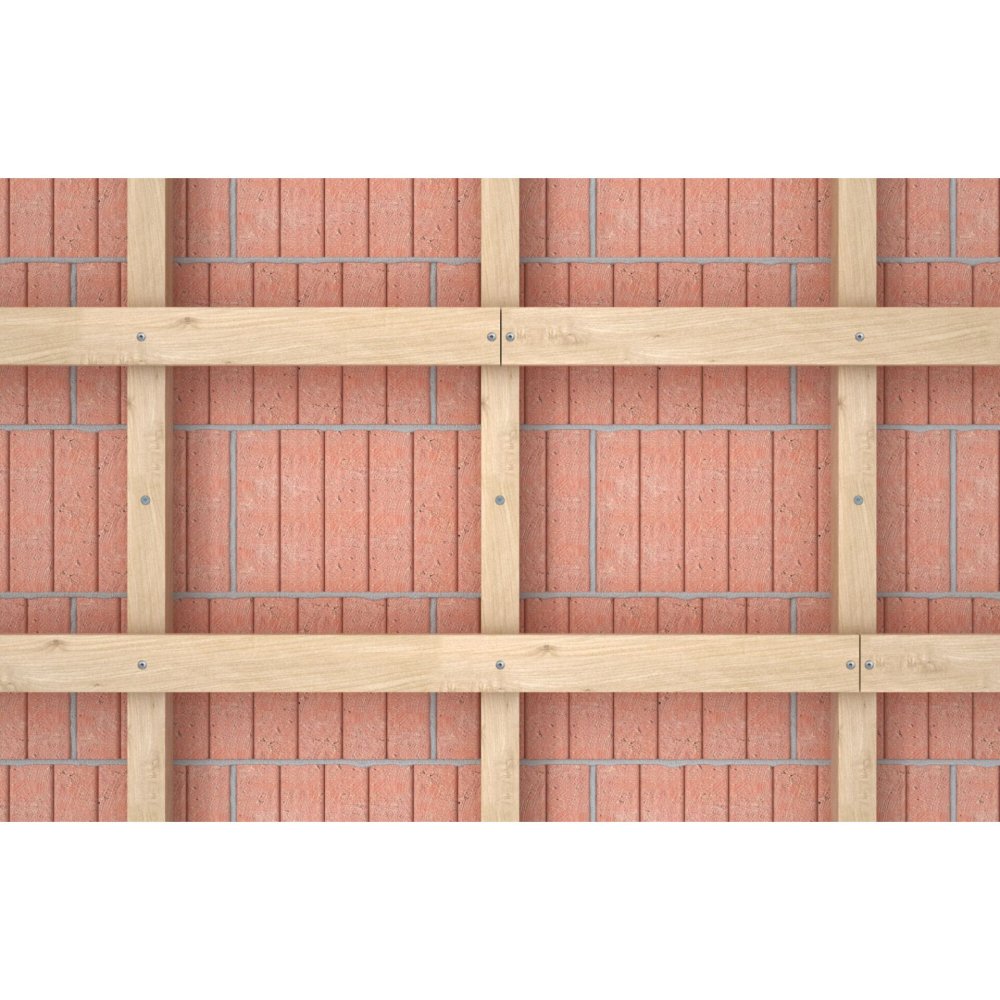

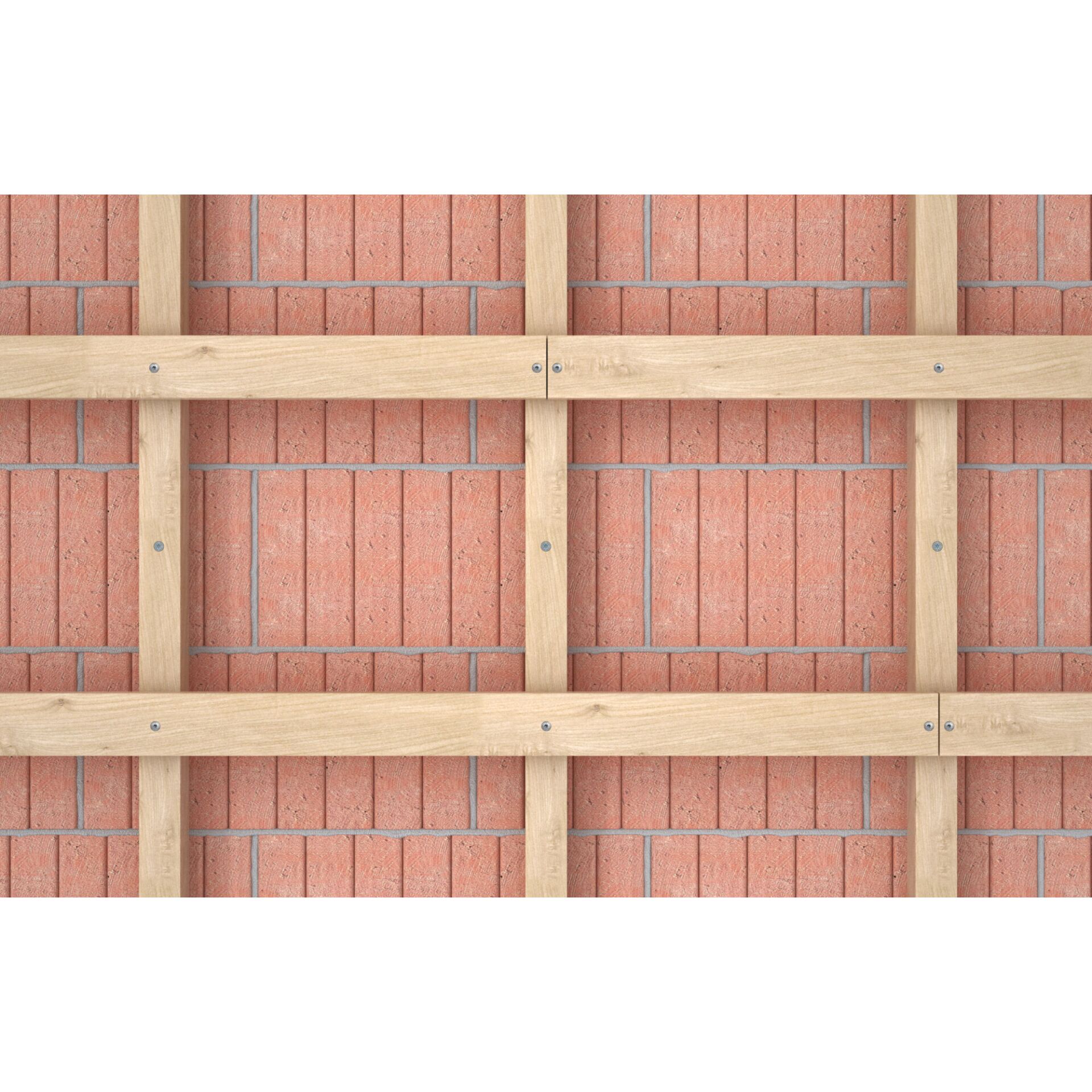

- Suitable for wooden and metal substructures, window frames, doors, battens, and furniture

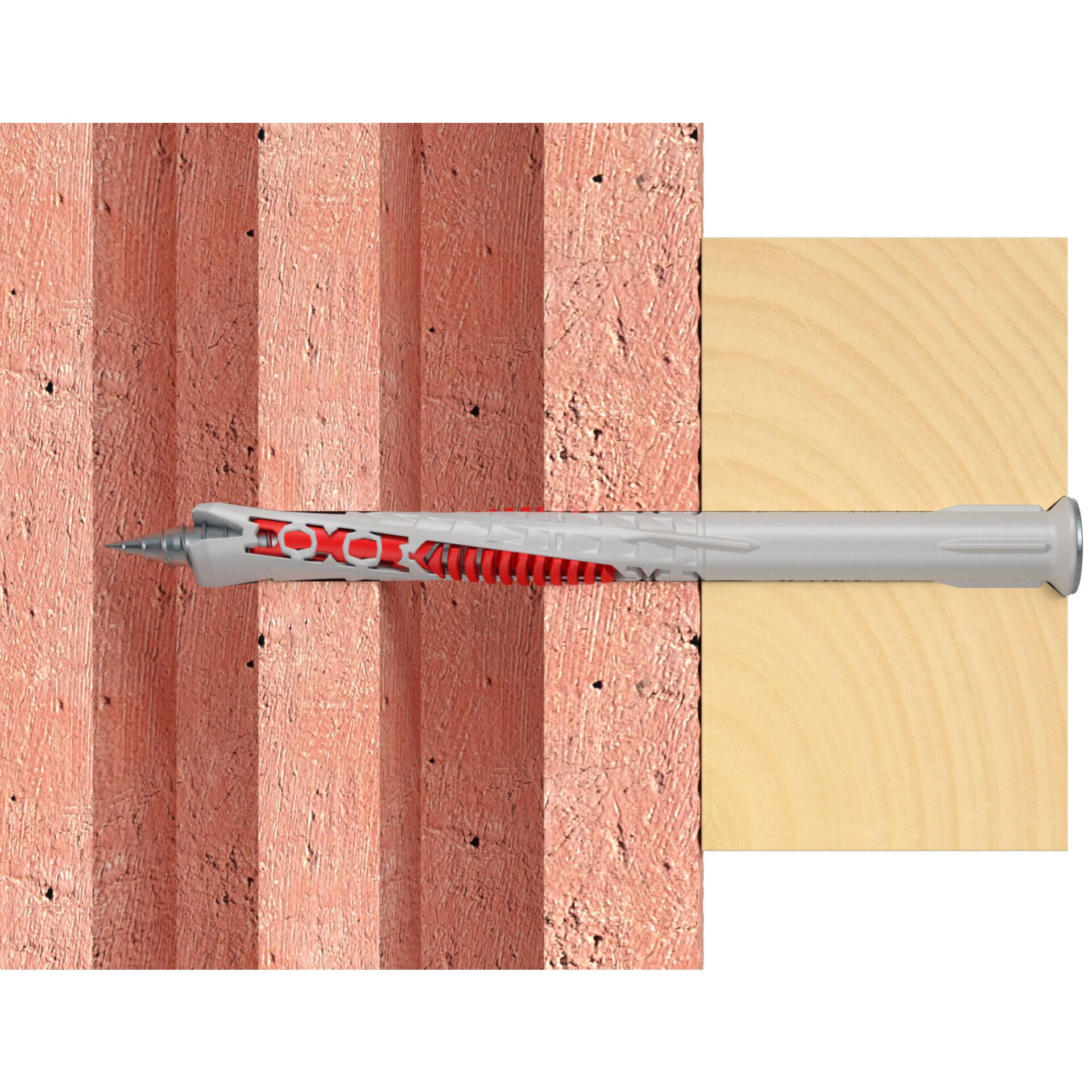

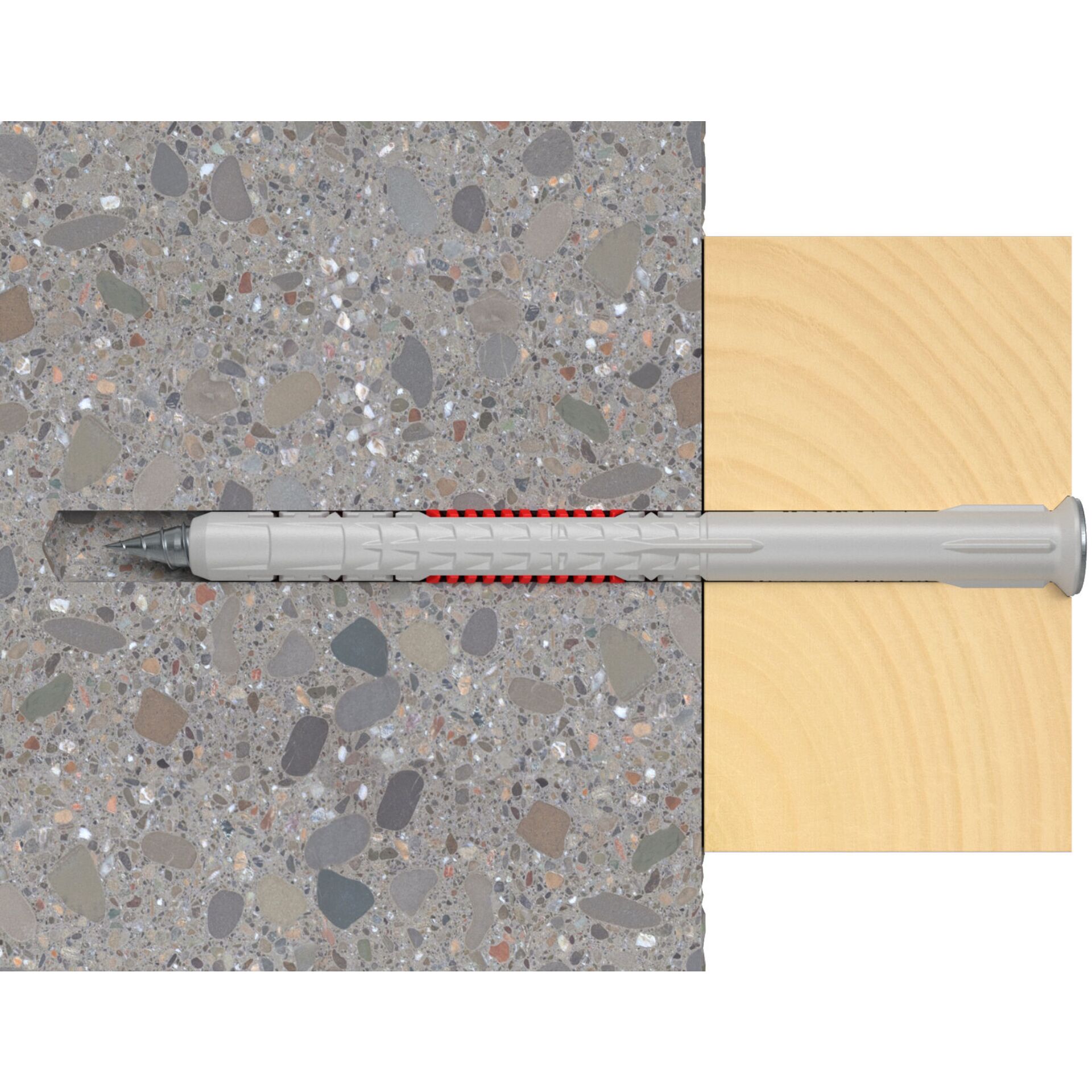

- Compatible with concrete, solid and perforated bricks, aerated concrete, and natural stone
| Drive | TX40 |
|---|---|
| Package quantity | 50 pcs |
| Plug length | 160 mm |
| Material | Nylon |
| Colour | Grey / red |
| Drill hole diameter | 10 mm |
| Minimum borehole depth | 50 mm |
| Usable length at 50 mm anchorage depth | 110 mm |
| Usable length at 70 mm anchorage depth | 90 mm |
| Usable length at 140 mm anchorage depth | 20 mm |
| Screw head type | Countersunk |
| Field of application | Universal |
| EAN | 4048962440201 |
|---|
What drive size is required for the included screw?
The preassembled screw requires a TX40 bit.
What drill hole diameter is needed for installation?
The plug requires a drill hole diameter of 10 mm.
