Fischer DuoXpand 10x200 FUS Frame Plug with Hexagon Head Screw, 50 pcs
Price: 204.10 €
| Products ID: | 185385 |
|---|---|
| Manufactured by: | Fischer |
| Availablity: | Ready to Order |
| Delivery Time | 7-15 business days |
| EAN: | 4048962440348 |
Delivery options to:
Choose country

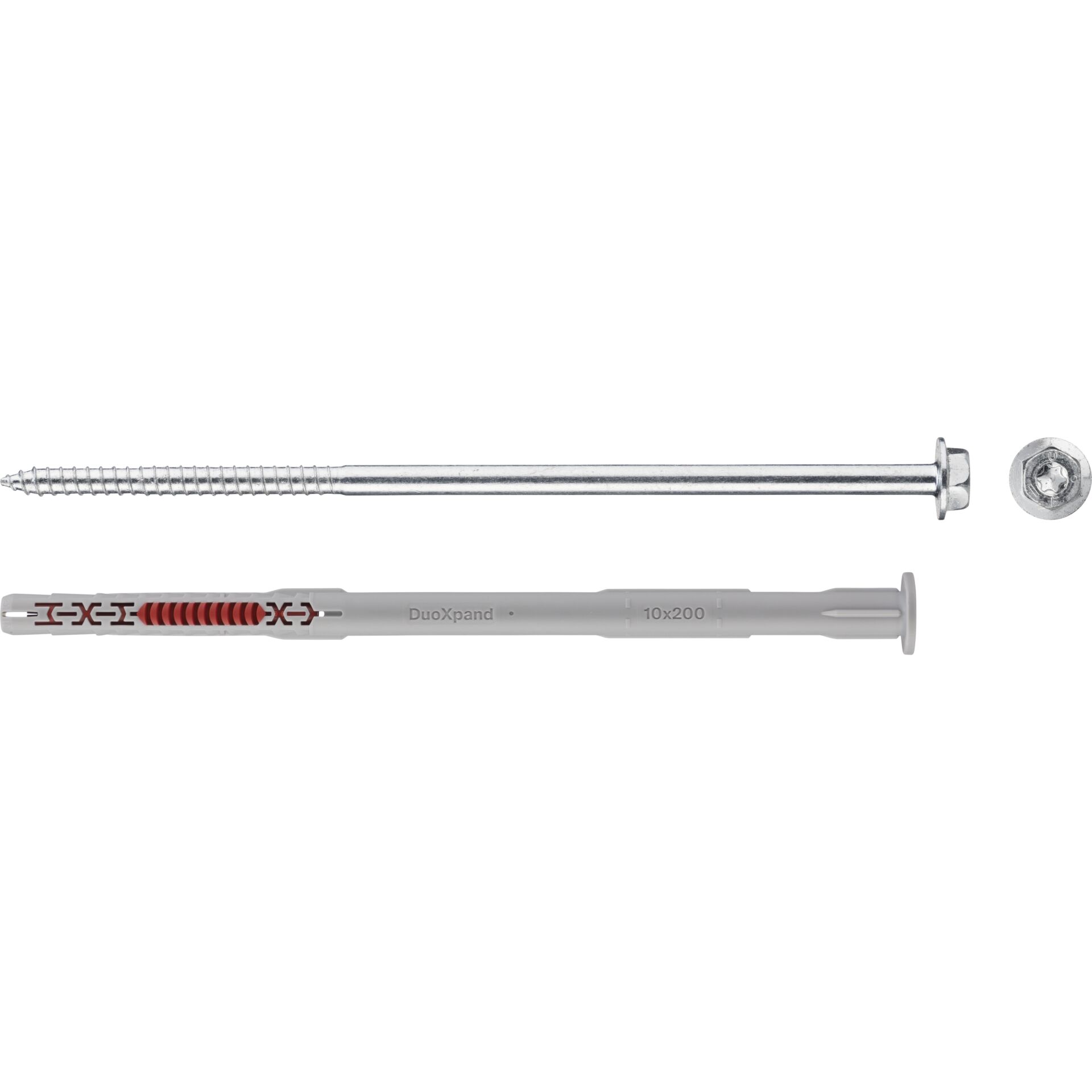

The Fischer DuoXpand 10x200 FUS is a long-shaft frame plug supplied with a hexagon head screw and integrated washer. Its special lamella geometry ensures gentle expansion within building materials, preventing fractures in porous substrates and enabling secure anchoring close to edges.
Key Features
- Suitable for timber or metal facade, ceiling, and roof substructures
- Ideal for installing windows, doors, gates, wall cabinets, beams, and cable ducts

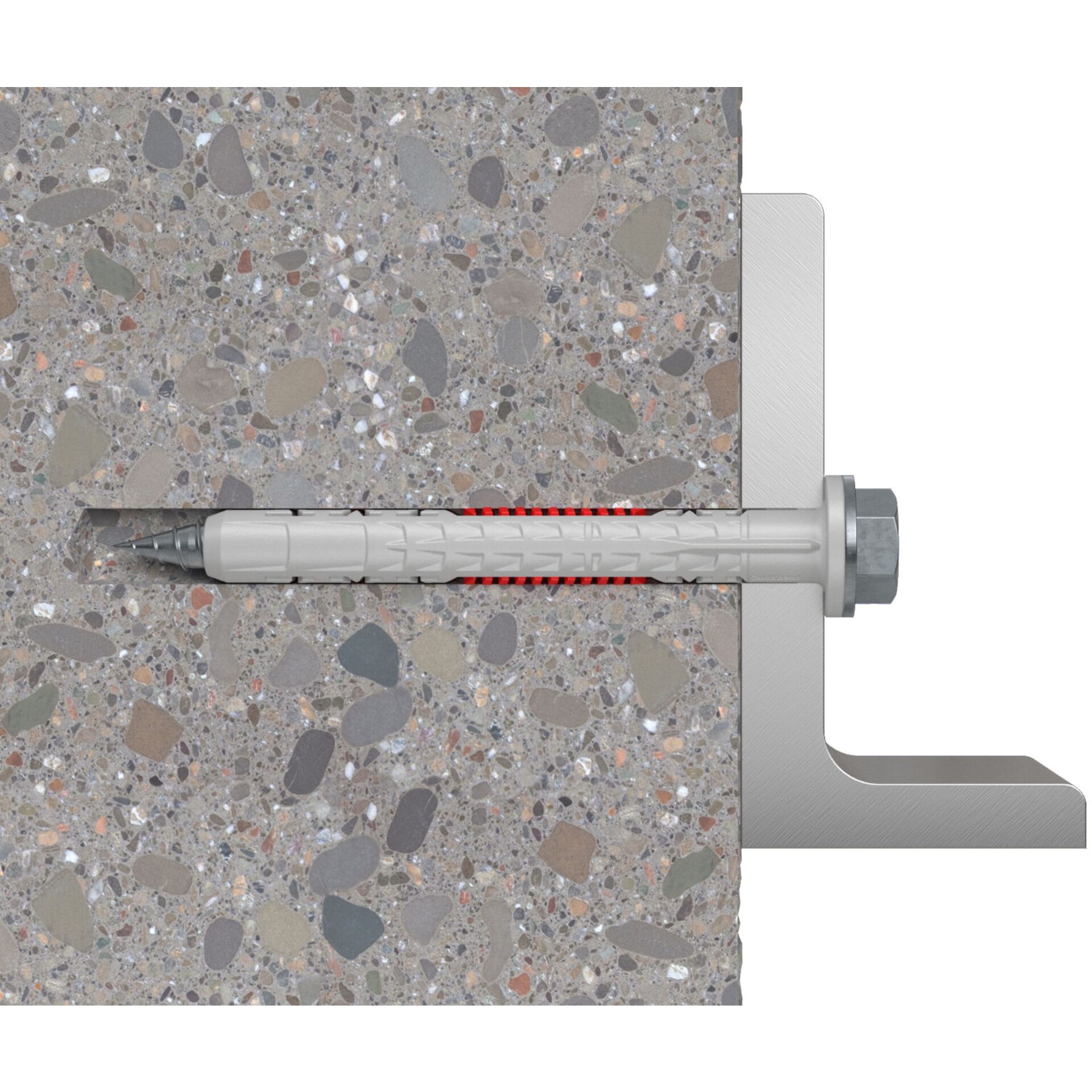

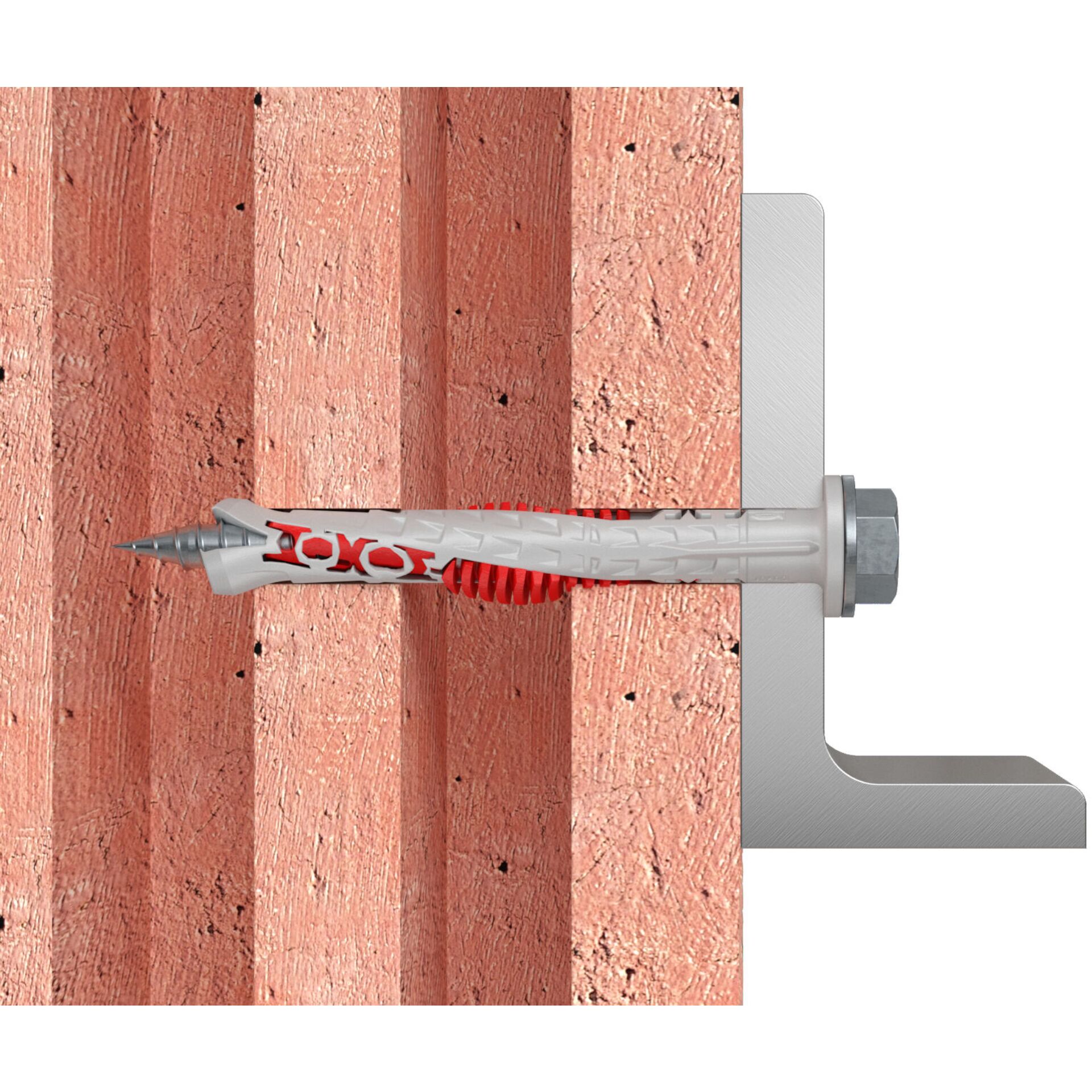

- Approved for solid brick, perforated brick, concrete, aerated concrete, and stone
- Hexagonal screw drive compatible with TX40 and SW13 tools
| Drive | TX40/SW13 |
|---|---|
| Quantity | 50 pcs |
| Plug length (l) | 200 mm |
| Drill core diameter (d0) | 10 mm |
| Effective length for anchorage depth 50 mm (tfix) | 150 mm |
| Effective length for anchorage depth 70 mm (tfix) | 130 mm |
| Effective length for anchorage depth 140 mm (tfix) | 60 mm |
| Effective length for anchorage depth 160 mm (tfix) | 40 mm |
| Minimum borehole depth | 50 mm |
| Field of application | Universal |
| Colour | Grey / Red |
| Material | Plastic |
| Type | Plug |
Which building materials are suitable for this anchor?
It can be used in solid bricks, hollow blocks, perforated sand-lime brick, concrete (≥ C12/15), aerated concrete, dense natural stone, and solid gypsum plates.
What tool bit is required to drive the screw?
The screw features a combination head that accepts a TX40 Torx bit or a 13 mm (SW13) hex socket/wrench.
How many plugs are included in the package?
The package contains 50 plugs complete with matching hexagon head screws and washers.
