Fischer DuoXpand 10x230 FUS Long Shank Plug with Screw, 50 pcs.
Price: 242.80 €
| Products ID: | 185097 |
|---|---|
| Manufactured by: | Fischer |
| Availablity: | Ready to Order |
| Delivery Time | 7-15 business days |
| EAN: | 4048962440355 |
Delivery options to:
Choose country

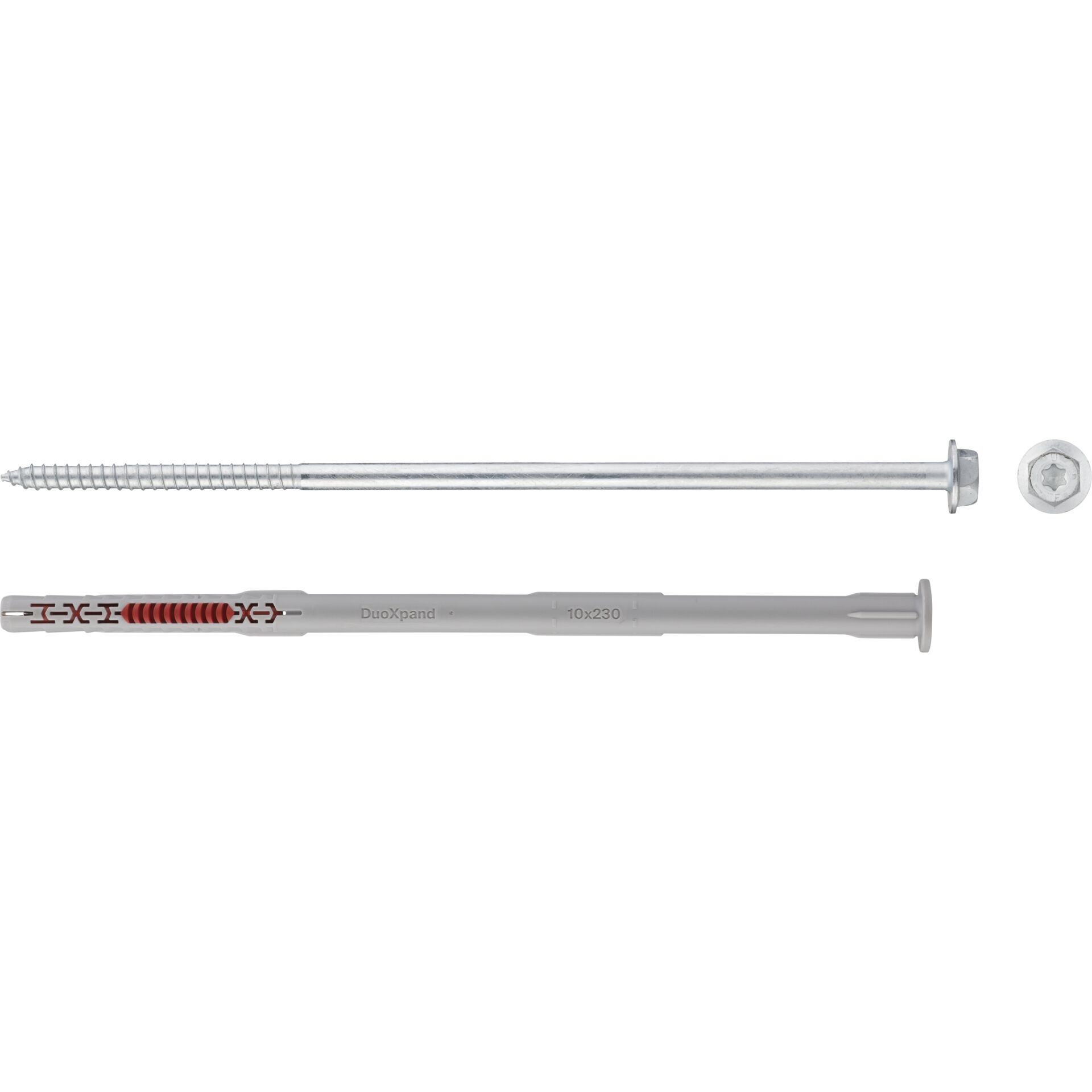

The fischer DuoXpand 10x230 FUS is a long shank frame plug supplied with a hexagon screw and integrated washer. Its engineered lamella geometry expands gently in building materials, helping to prevent damage in porous substrates and enabling fixings close to edge boundaries.
Key Applications and Features

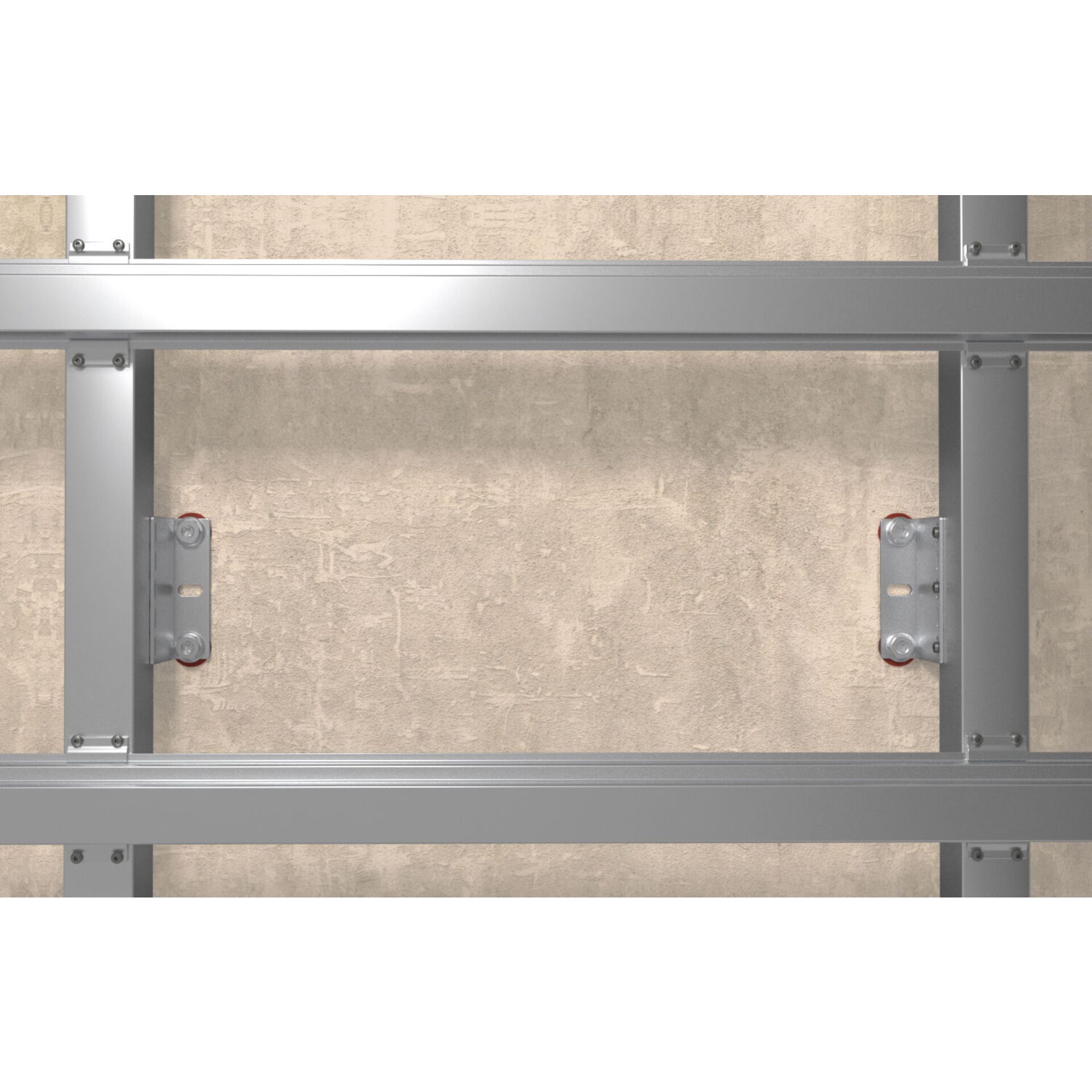

- Suitable for facade, ceiling, and roof substructures made of timber or metal
- Used for fixing windows, doors, gates, wall units, timber beams, and cable trays

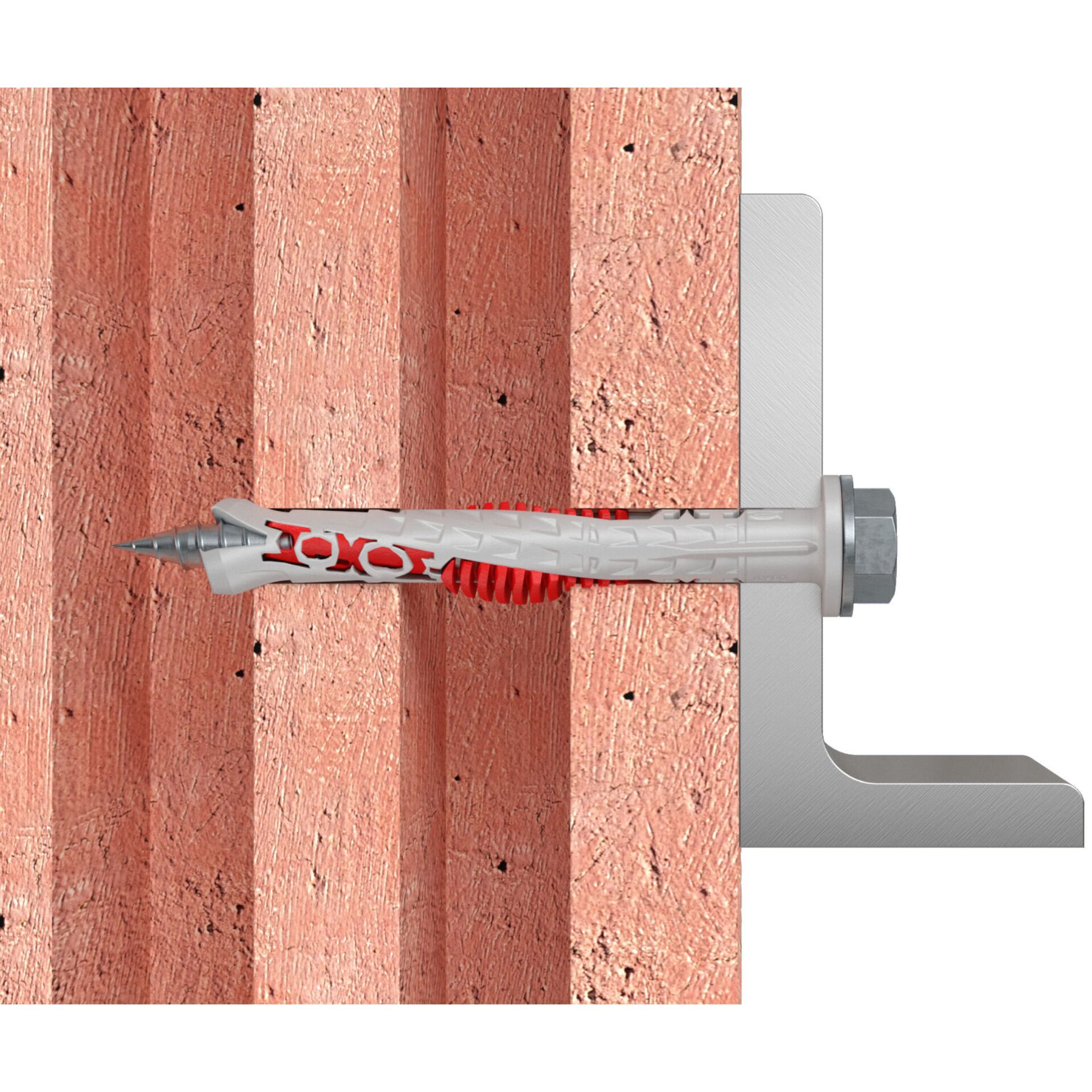

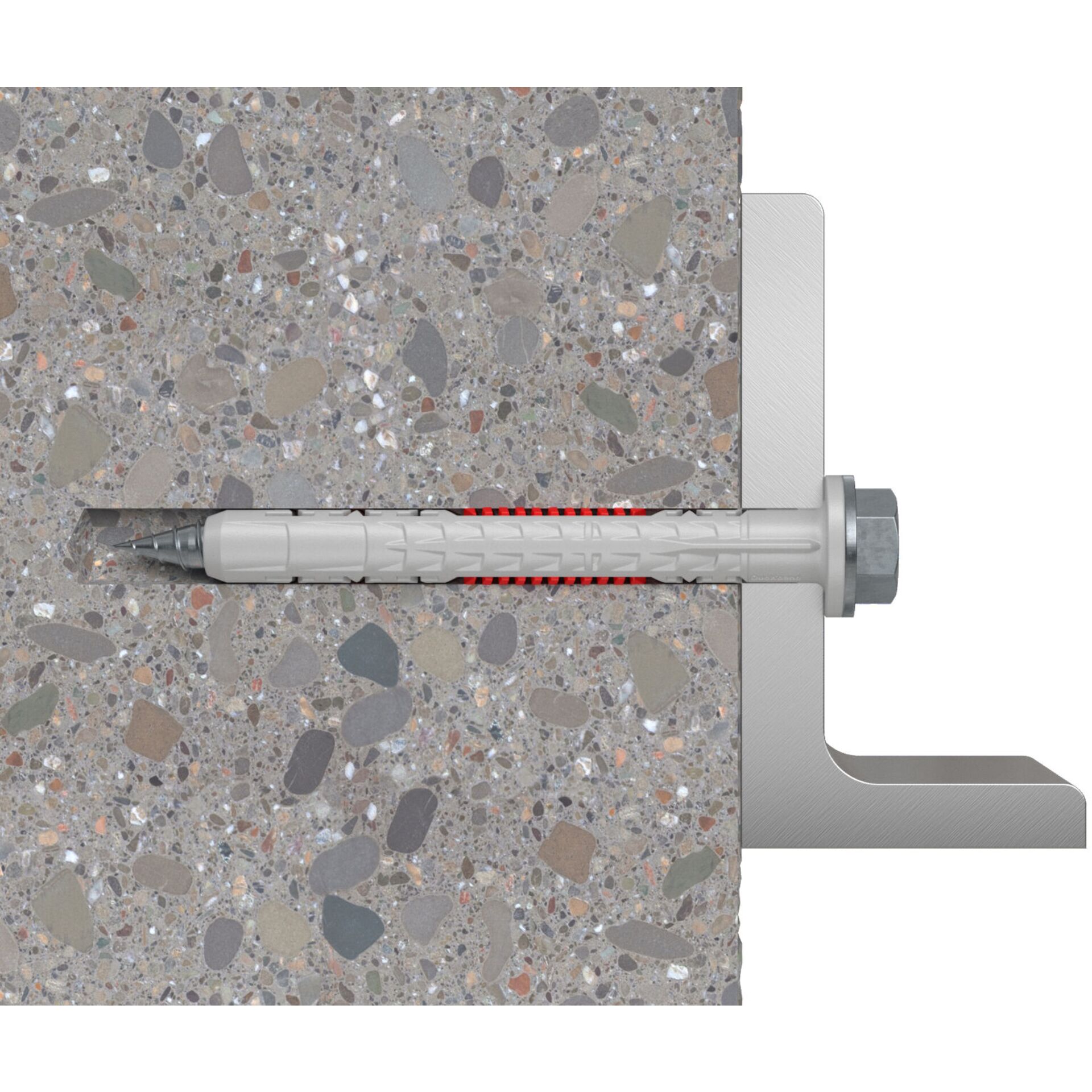

- Approved for a wide range of materials including concrete, solid brick, perforated brick, and aerated concrete
- Hexagon screw compatible with TX40 drive and SW13 socket
| Drive | TX40/SW13 |
|---|---|
| Quantity | 50 pcs. |
| Plug length (l) | 230 mm |
| Drill core diameter (d0) | 10 mm |
| Effective length for anchorage depth 50 mm (tfix) | 180 mm |
| Effective length for anchorage depth 70 mm (tfix) | 160 mm |
| Effective length for anchorage depth 140 mm (tfix) | 90 mm |
| Effective length for anchorage depth 160 mm (tfix) | 70 mm |
| Overall length | 230 mm |
| Minimum borehole depth | 50 mm |
| Field of application | Universal |
| Colour | Grey / Red |
| Material | Plastic |
| Type | Plug |
What tool drive is required for installation?
The screw features a dual drive suitable for either a TX40 bit or an SW13 wrench.
Which building materials is this anchor suitable for?
It is suitable for concrete (≥ C12/15), solid brick, sand-lime brick, perforated brick, aerated concrete, lightweight concrete blocks, dense natural stone, and solid gypsum plates.
