Fischer DuoXpand 10x100 FUS Frame Plug with Hexagon Screw, 50 pcs.
Price: 69.80 €
| Products ID: | 185090 |
|---|---|
| Manufactured by: | Fischer |
| Availablity: | Ready to Order |
| Delivery Time | 7-15 business days |
| EAN: | 4048962440294 |
Delivery options to:
Choose country

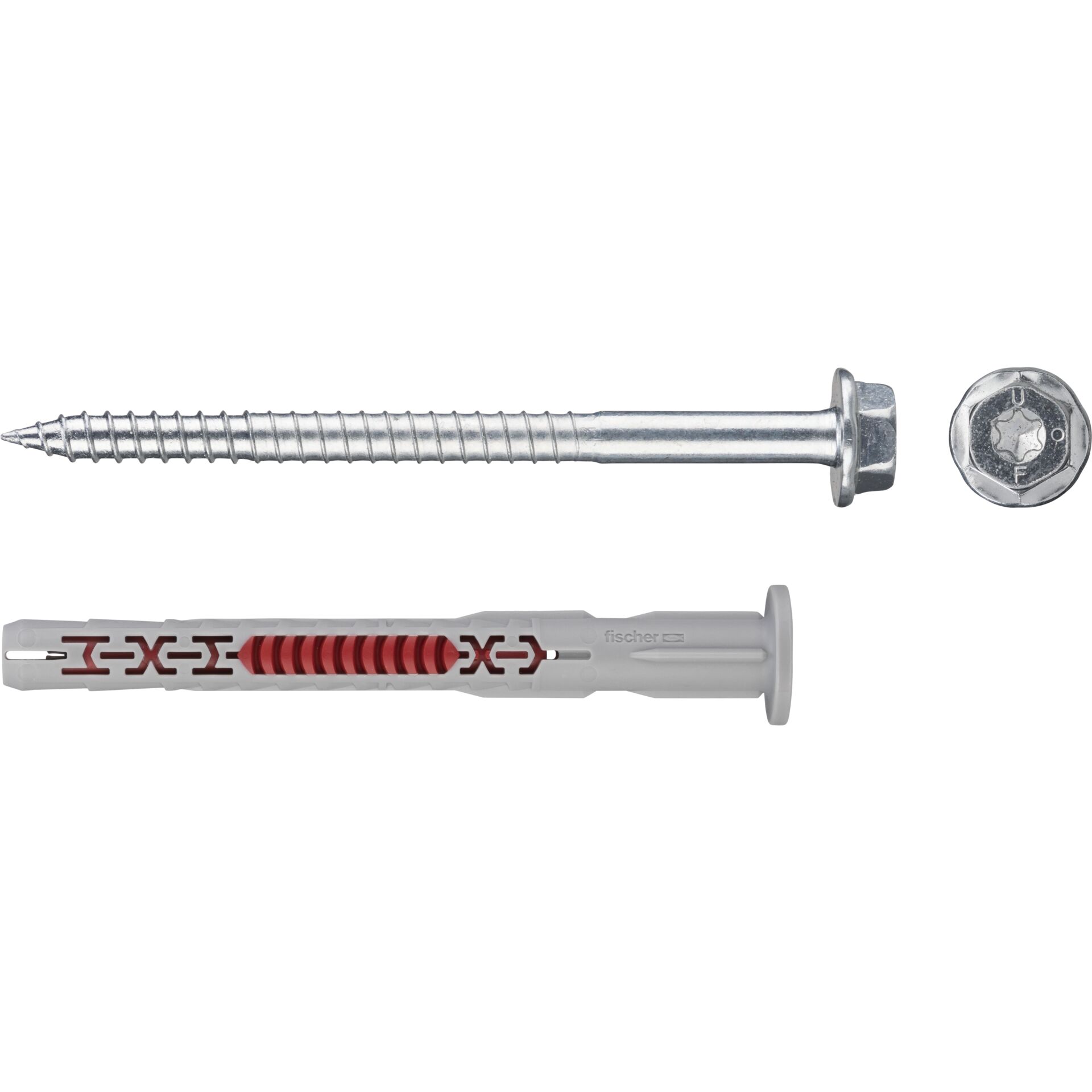

The Fischer DuoXpand 10x100 FUS is a long shank plug supplied with a hexagon head safety screw and moulded washer. The special lamella geometry ensures gentle expansion in the building material, preventing spalling in porous substrates and enabling secure fixings close to the edge.
Features and Applications

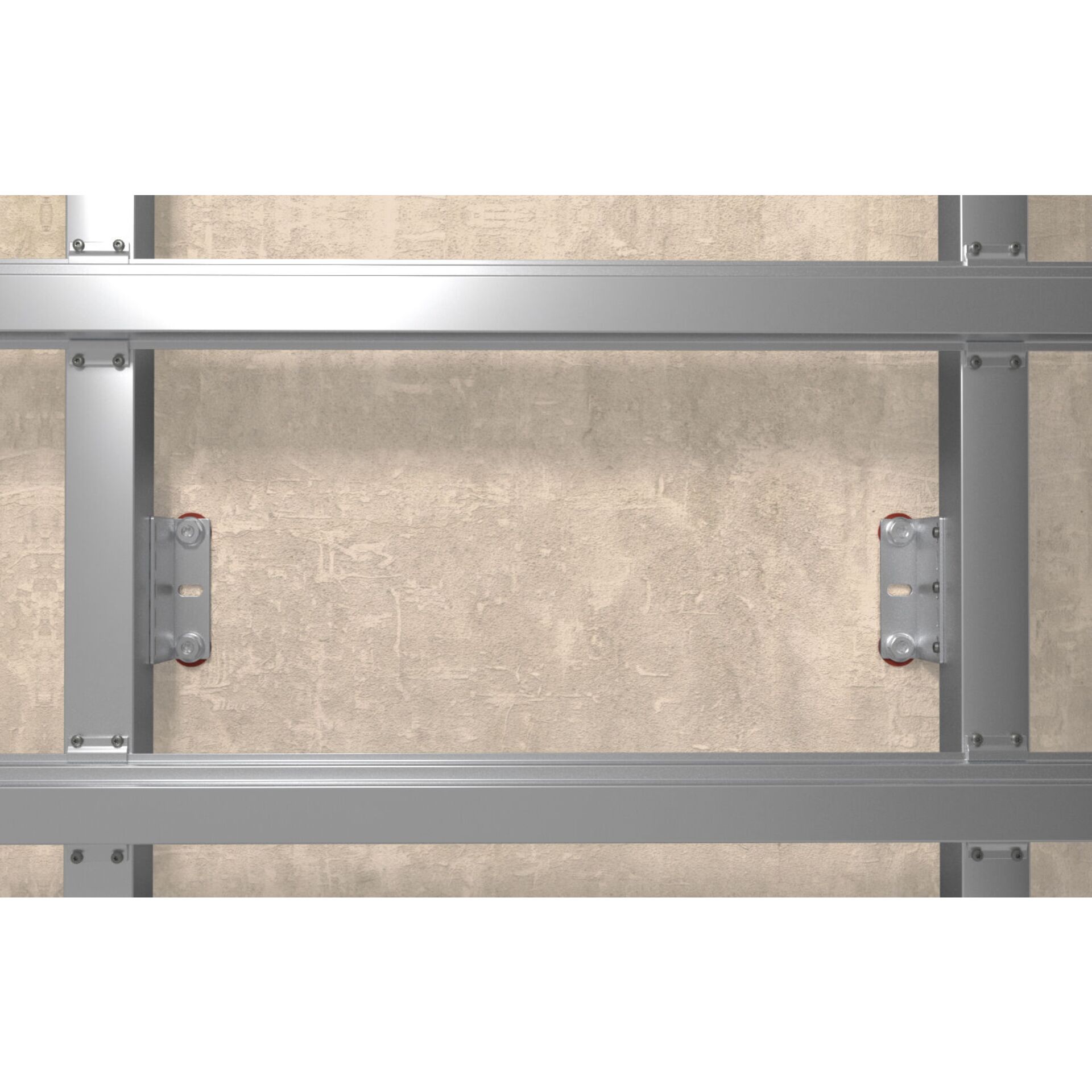

- Fixing wood or metal substructures for facades, ceilings, and roofs
- Securing windows, doors, gates, wall cabinets, TV brackets, and cable trays

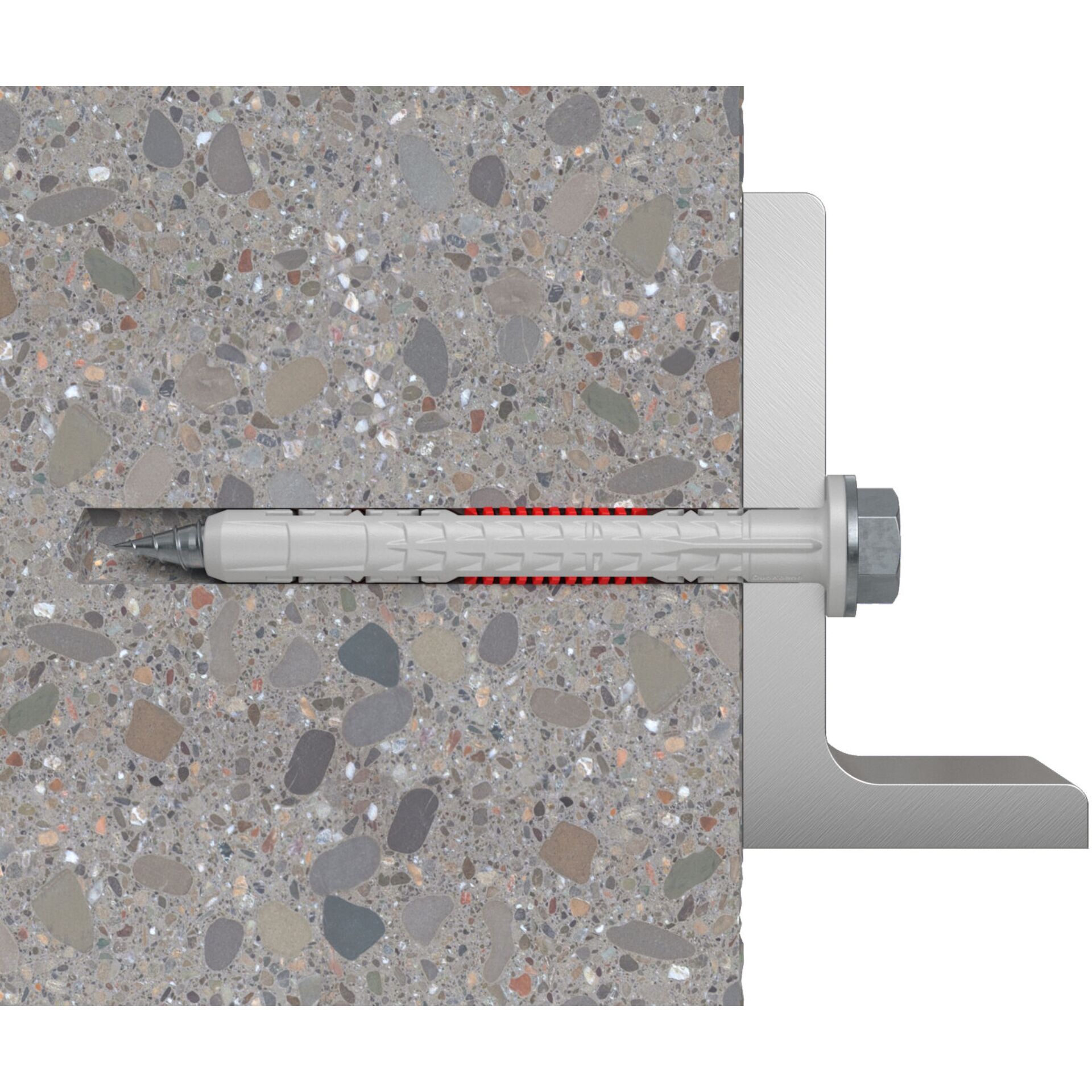

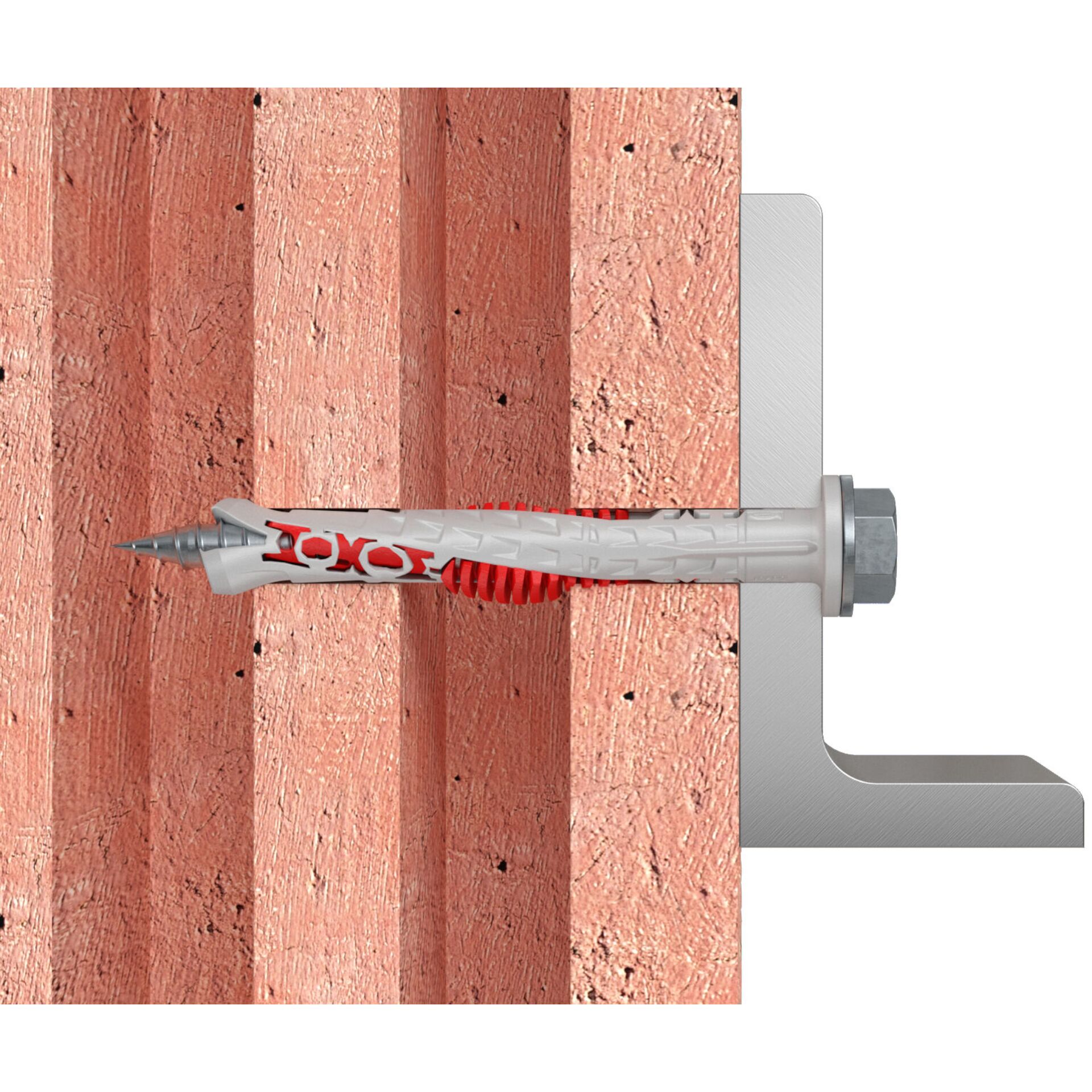

- Suitable for concrete, solid and perforated brick, aerated concrete, and gypsum panels
- Drive type: TX40 / SW13
| Drive | TX40/SW13 |
|---|---|
| Plug length (l) | 100 mm |
| Drill core diameter (d0) | 10 mm |
| Effective length for anchorage depth 50 mm (tfix) | 50 mm |
| Effective length for anchorage depth 70 mm (tfix) | 30 mm |
| Quantity | 50 pieces |
| Overall length | 140 mm |
| Minimum borehole depth | 50 mm |
| Field of application | Universal |
| Colour | Grey / Red |
| Material | Plastic |
| Type | Plug |
What drive tool is required for the screw?
The screw features a combination drive compatible with a TX40 Torx bit or an SW13 hex socket.
Which building materials can this plug be installed in?
It is suitable for concrete (≥ C12/15), solid and perforated brick, sand-lime brick, aerated concrete, lightweight concrete blocks, dense natural stone, and solid gypsum plates.
