Fischer DuoXpand 10x200 T Frame Plug with Countersunk Screw, 50 pcs
Price: 197.10 €
| Products ID: | 185054 |
|---|---|
| Manufactured by: | Fischer |
| Availablity: | Ready to Order |
| Delivery Time | 7-15 business days |
| EAN: | 4048962440225 |
Delivery options to:
Choose country

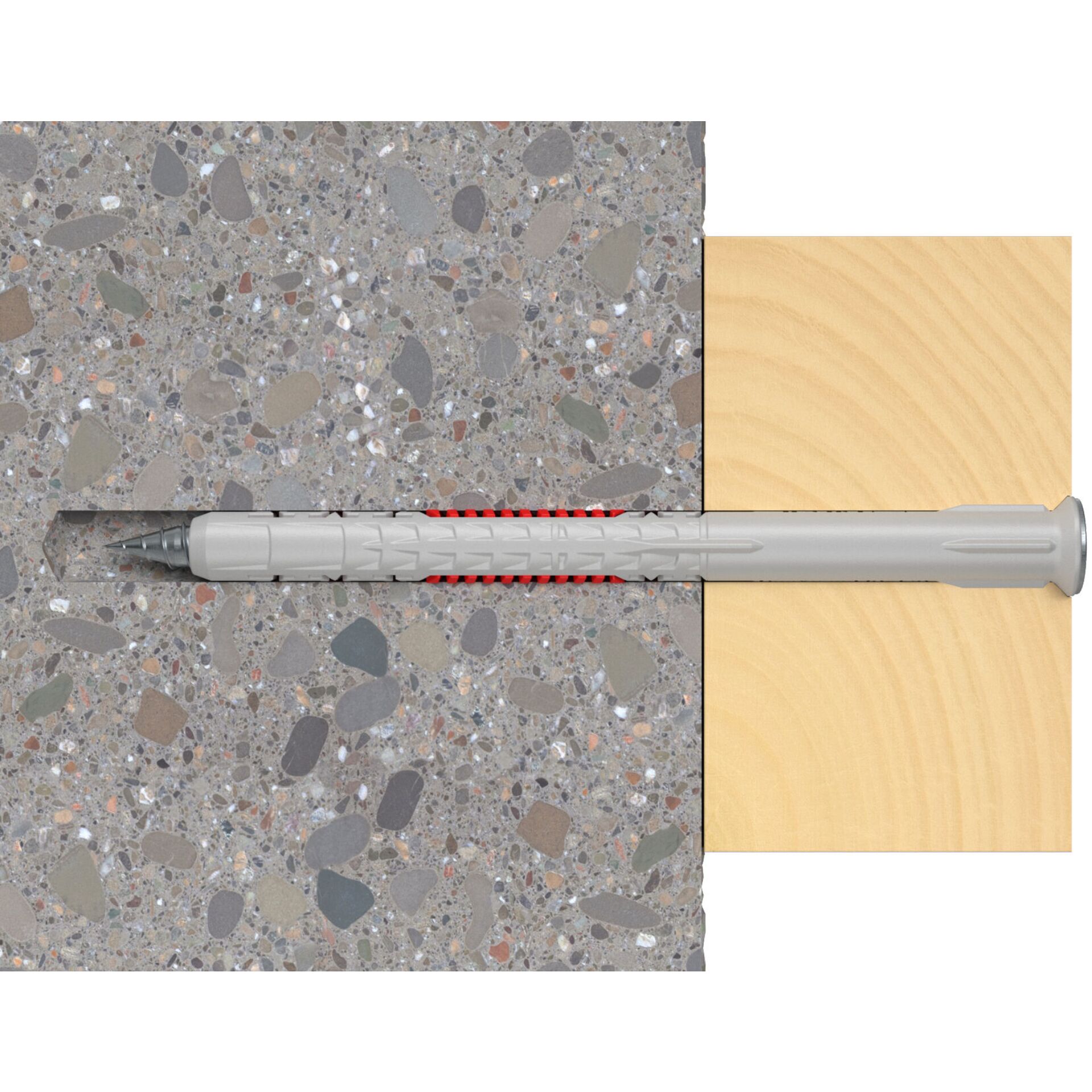

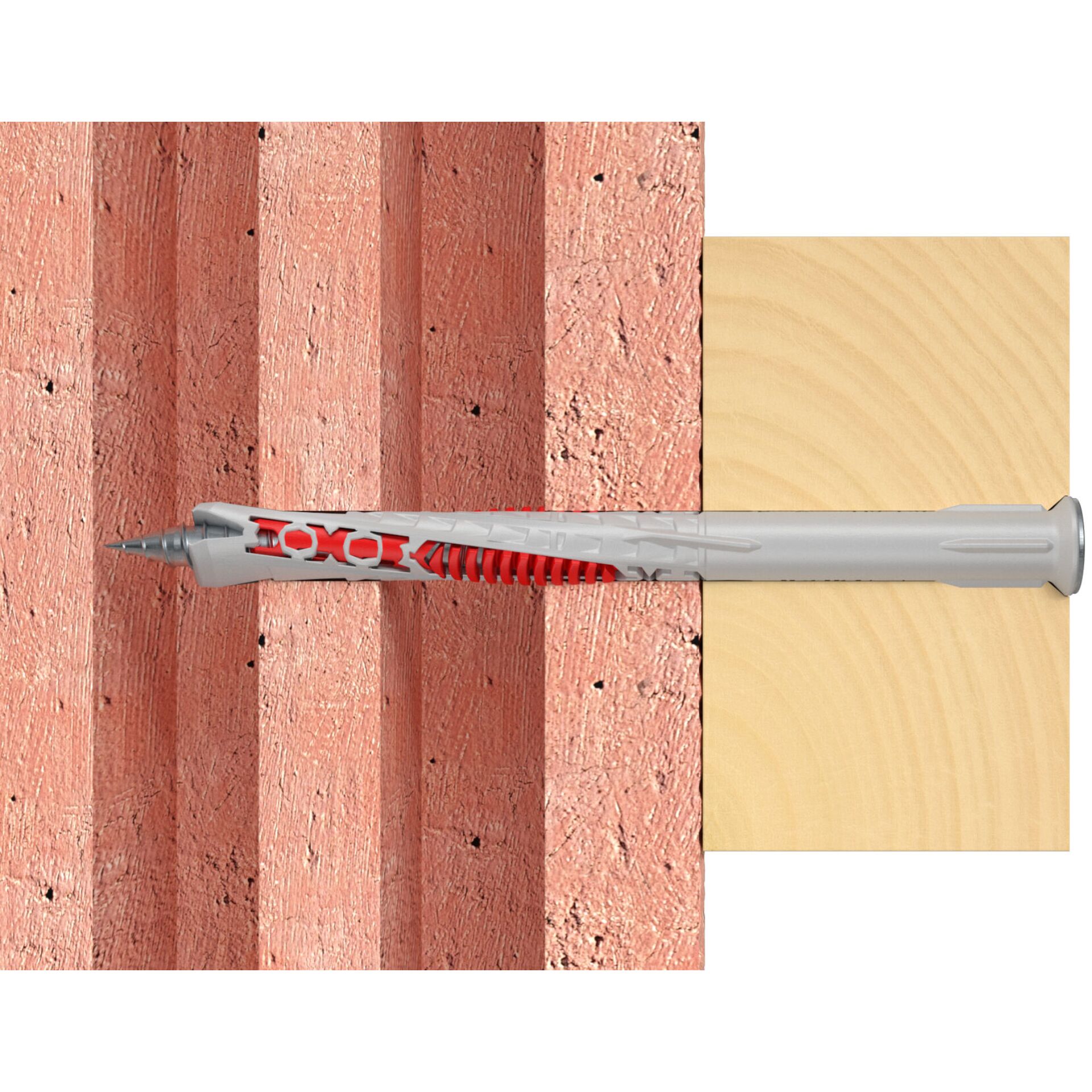

The Fischer DuoXpand 10x200 T is a long shank frame plug supplied with a preassembled countersunk head safety screw. Its special lamella geometry expands gently in the base material to prevent fractures in porous building materials and allow reliable fixings close to edges.
Key features
- Requires a 10 mm drill hole diameter and features a 210 mm plug length

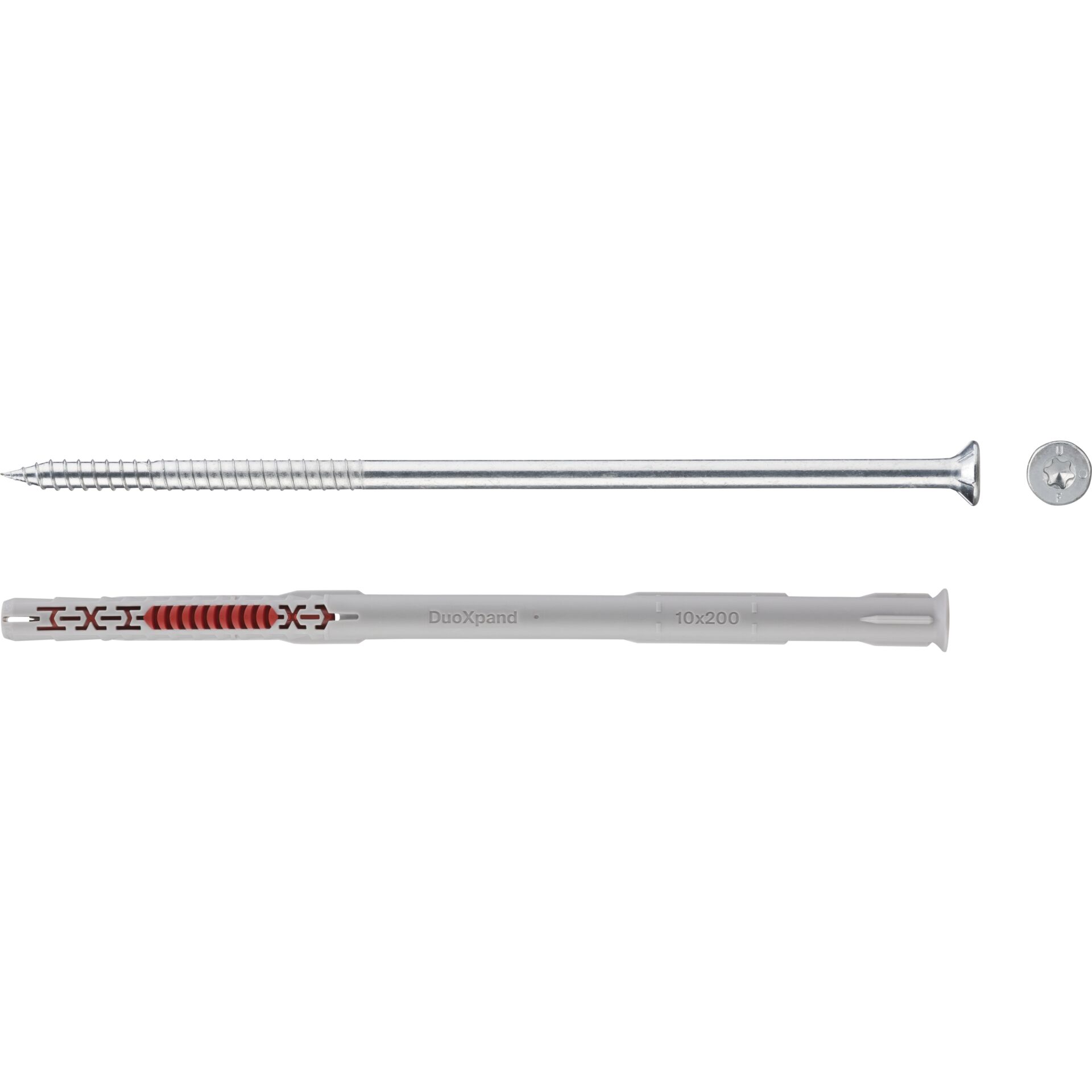

- Preassembled countersunk safety screw with TX40 drive
- Manufactured from durable nylon in grey and red
- Suitable for concrete, solid brick, hollow block, and aerated concrete

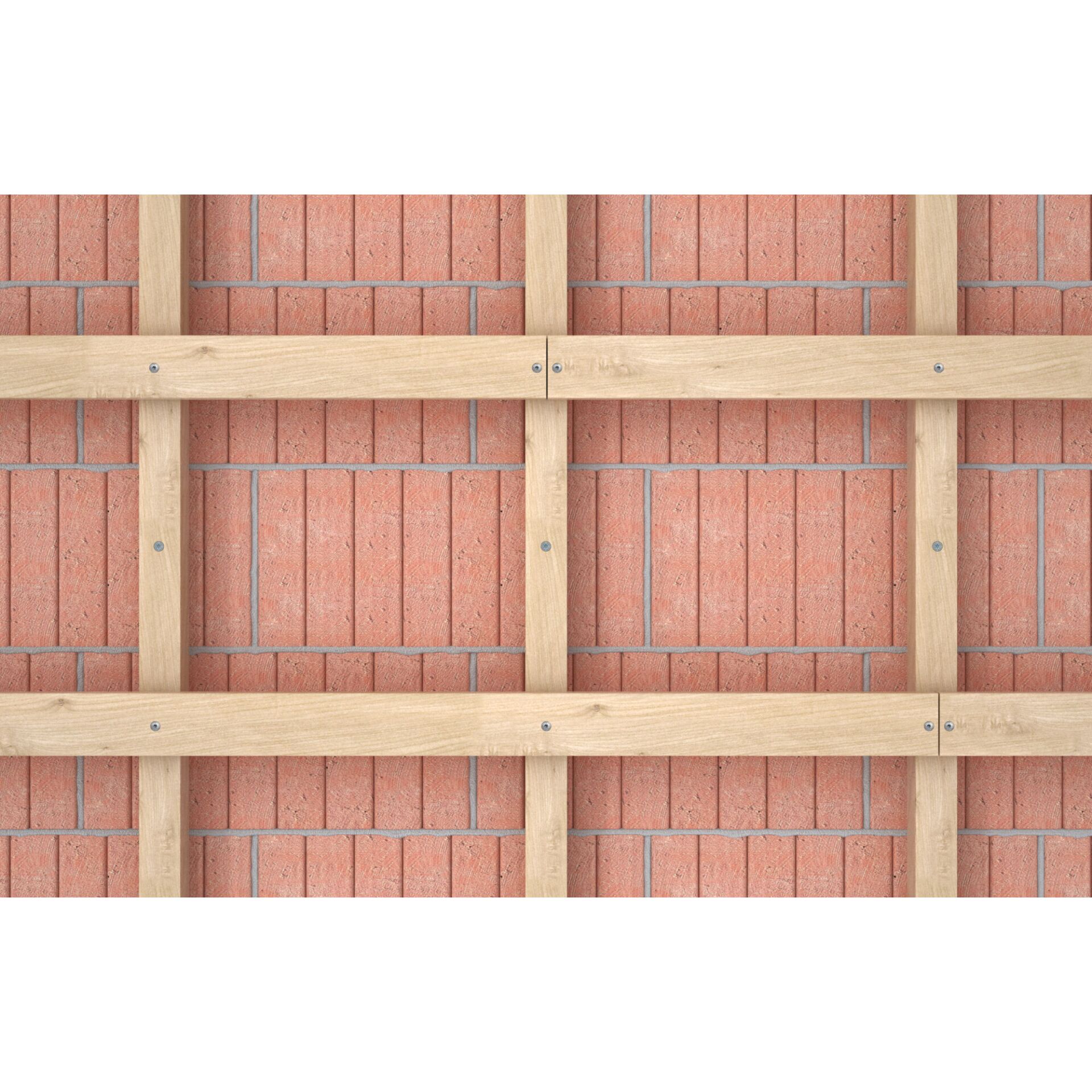

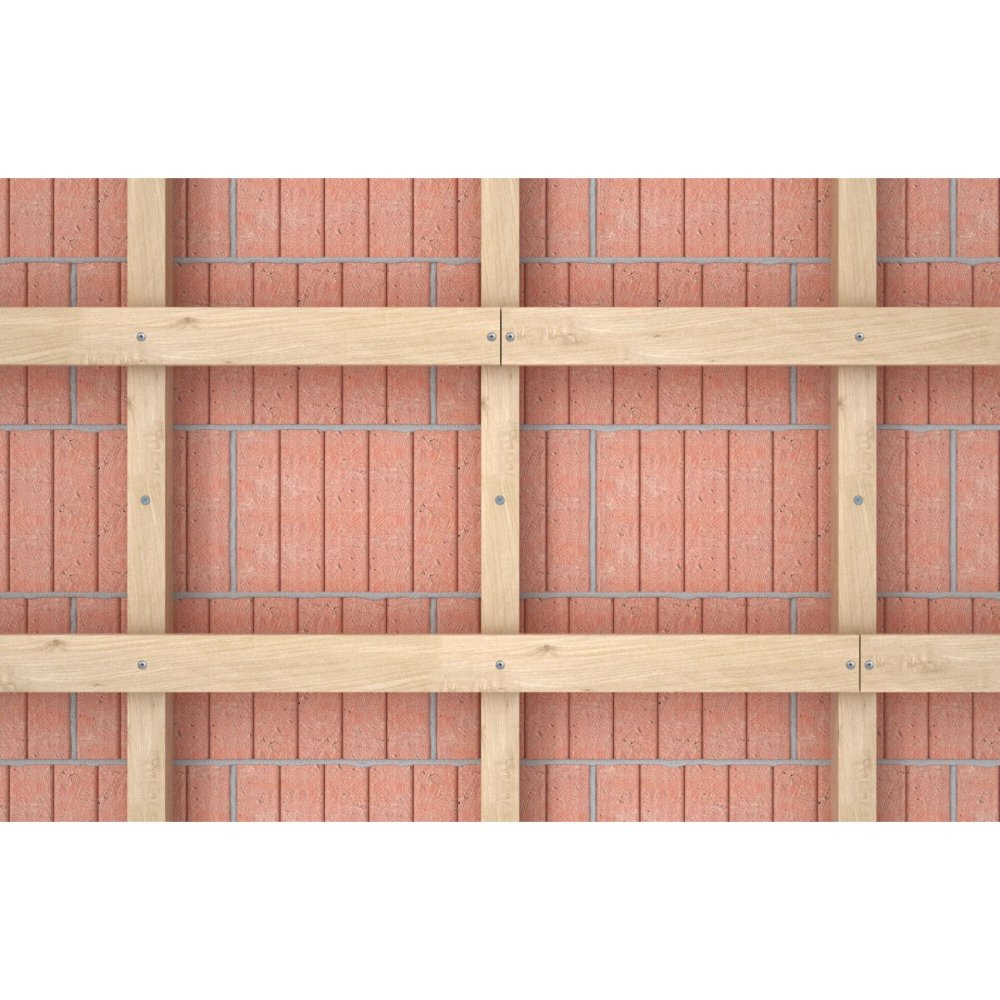

- Intended for facade substructures, window and door frames, and timber beams
| Drive | TX40 |
|---|---|
| Quantity | 50 pcs |
| Plug length | 210 mm |
| Material | Nylon |
| Colour | Grey / red |
| Drill hole diameter | 10 mm |
| Effective length at 50 mm anchorage depth | 150 mm |
| Effective length at 70 mm anchorage depth | 130 mm |
| Effective length at 140 mm anchorage depth | 60 mm |
| Effective length at 160 mm anchorage depth | 40 mm |
| Minimum borehole depth | 50 mm |
What screw drive is used with the Fischer DuoXpand 10x200 T?
The preassembled countersunk safety screw uses a TX40 drive.
What drill hole dimensions are required?
It requires a 10 mm drill hole diameter, with a minimum borehole depth of 50 mm.
