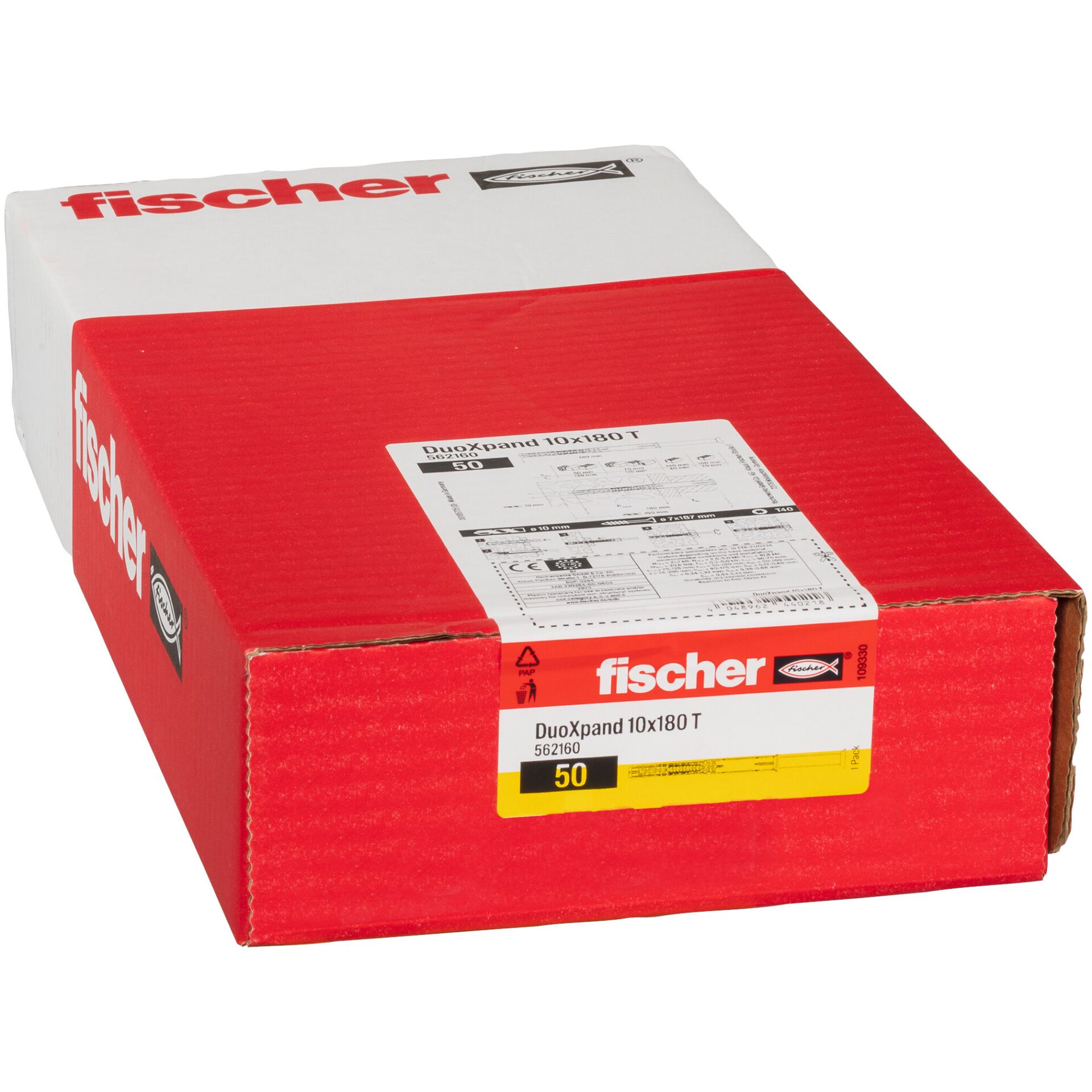

Fischer DuoXpand 10x180 T Frame Plugs with Countersunk Screws, 50 pcs
Price: 109.40 €
| Products ID: | 185058 |
|---|---|
| Manufactured by: | Fischer |
| Availablity: | Ready to Order |
| Delivery Time | 7-15 business days |
| EAN: | 4048962440218 |
Delivery options to:
Choose country

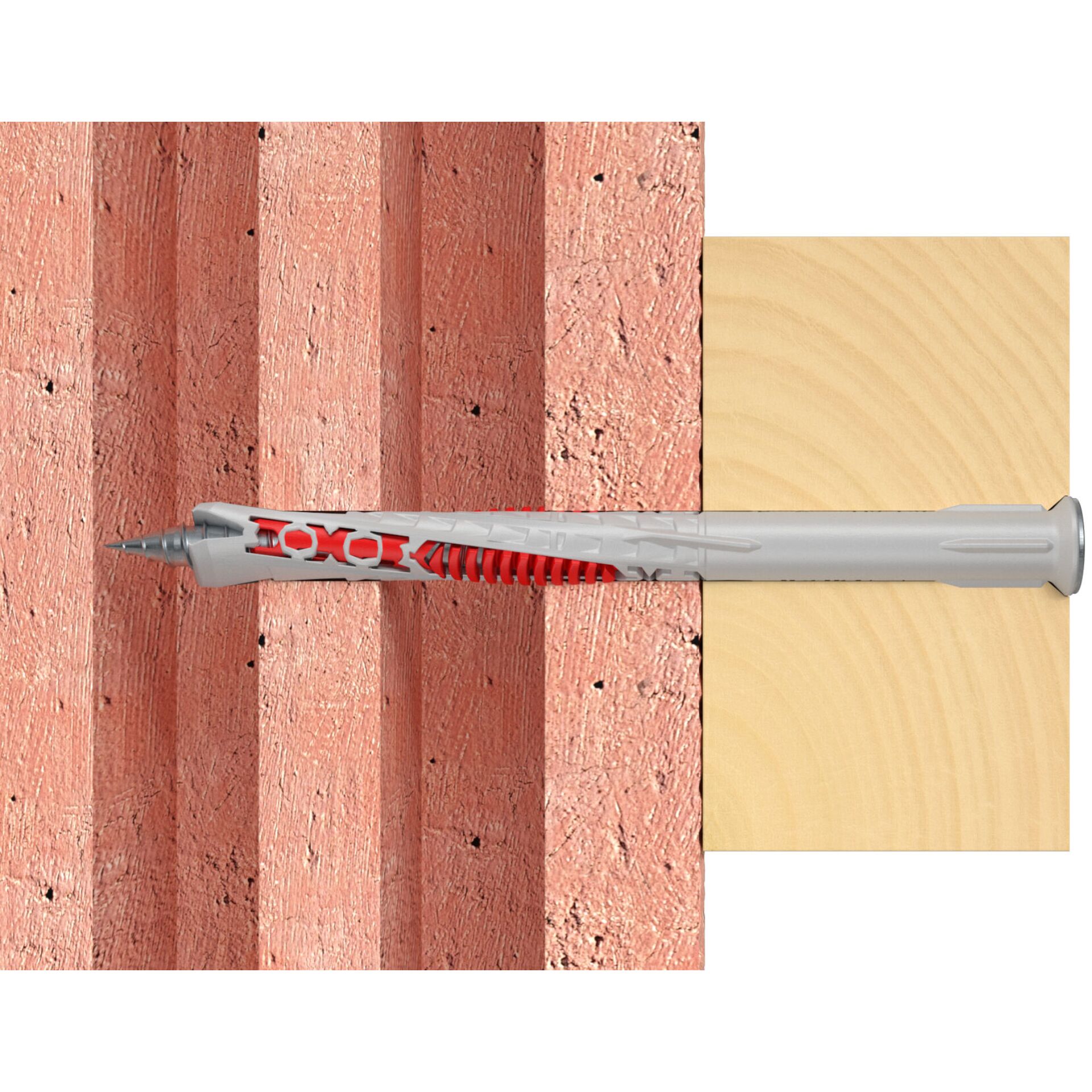

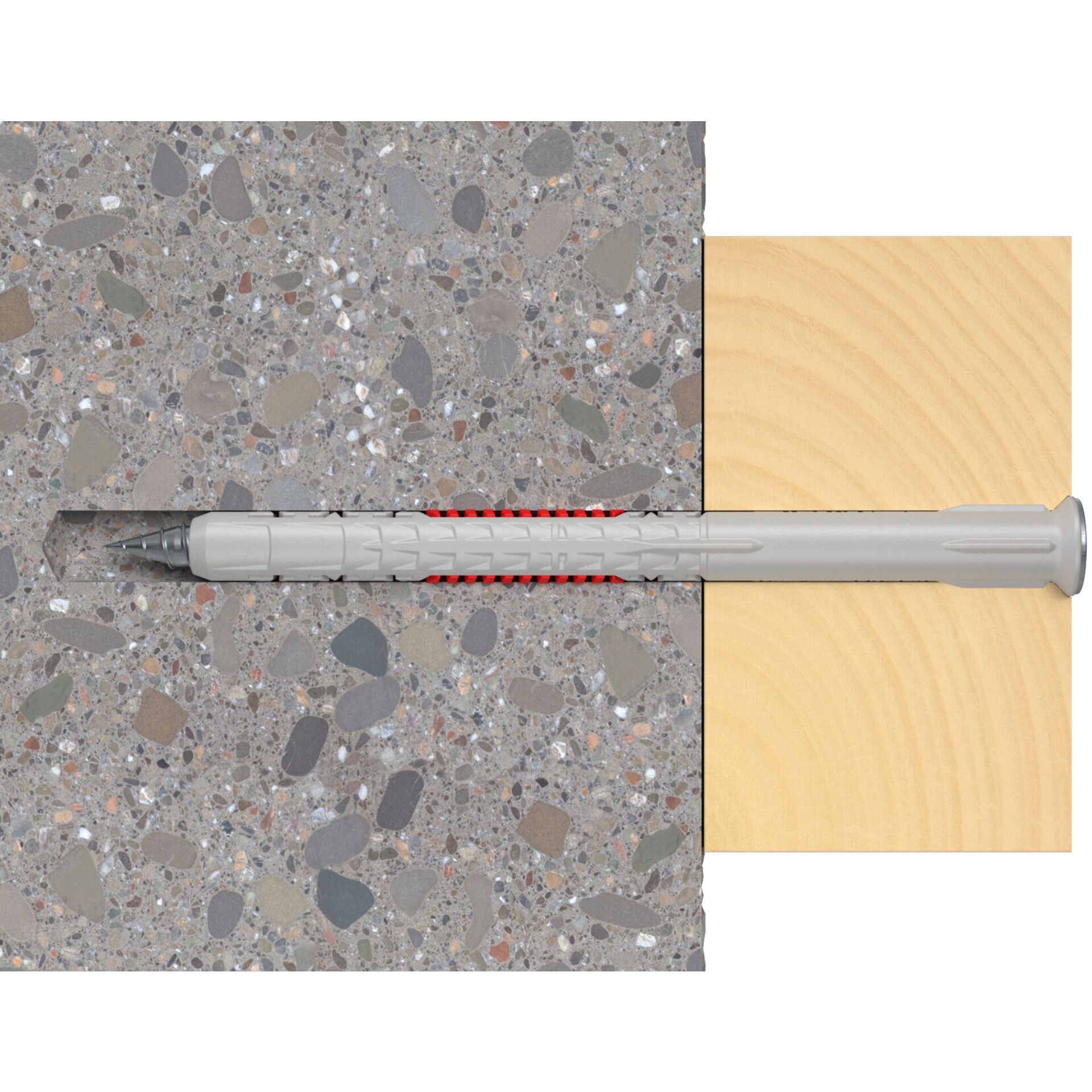

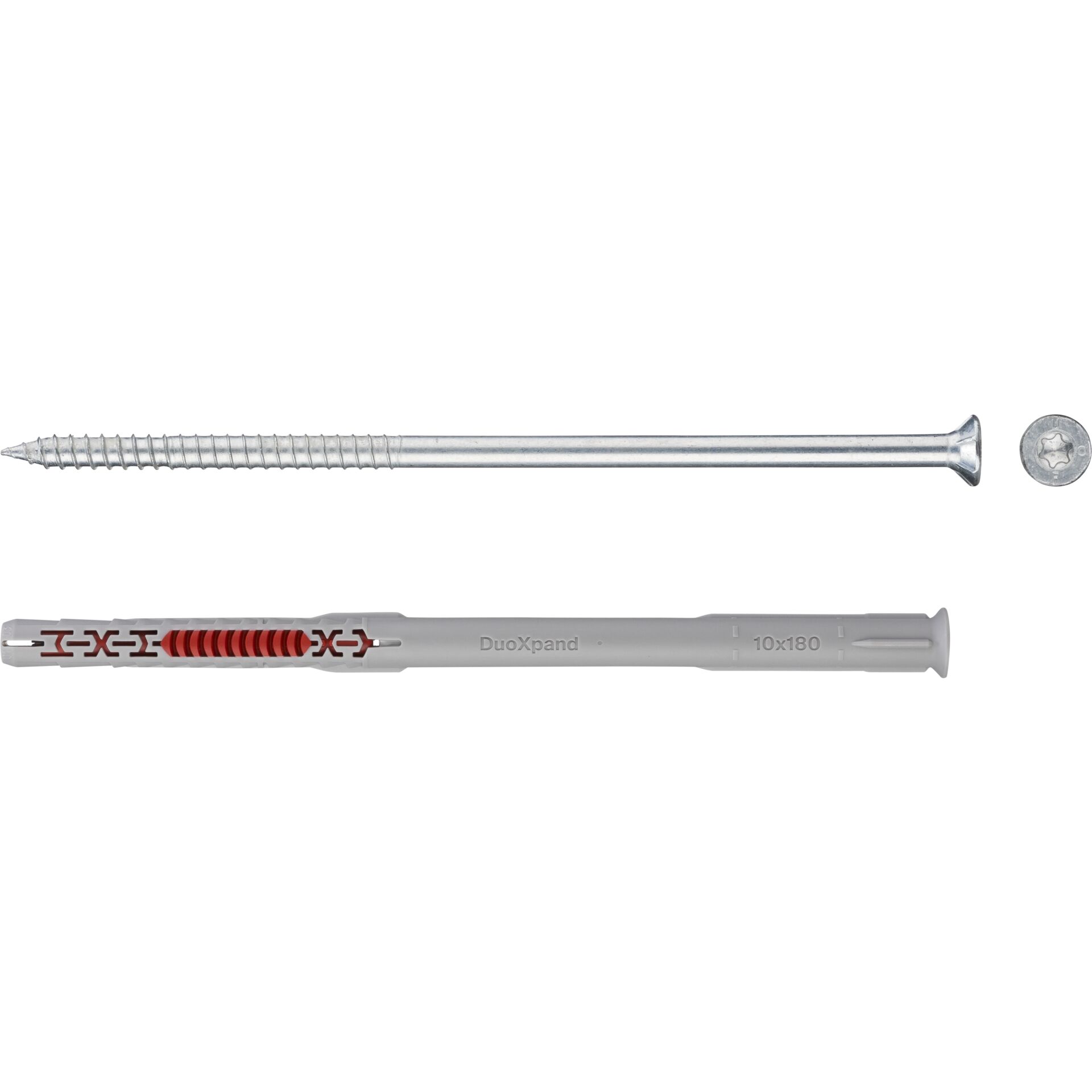

The Fischer DuoXpand 10x180 T is a long shank nylon plug featuring a preassembled countersunk head safety screw with a TX40 drive. Its special lamella geometry expands gently in the base material, preventing fractures in porous building materials and allowing anchoring close to edges.
Applications and Features

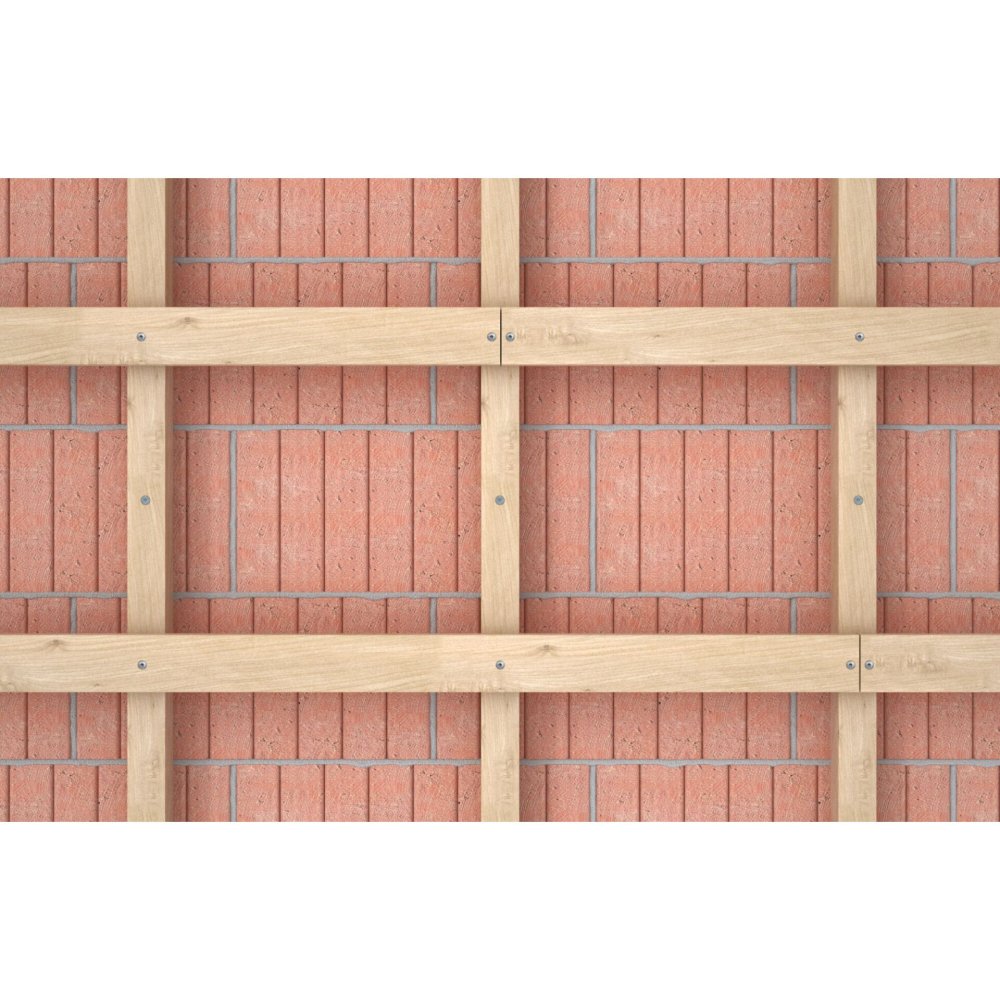

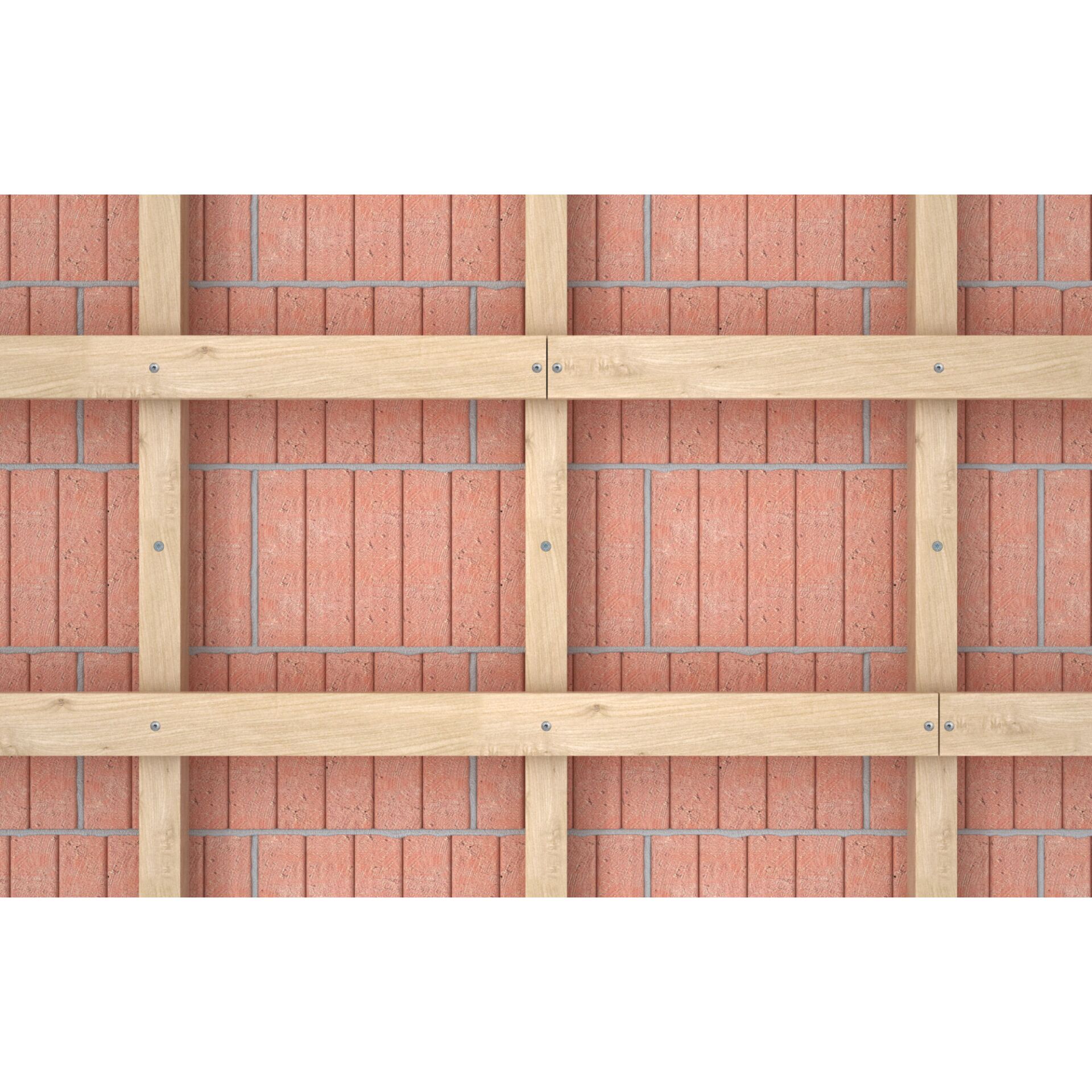

- Facade, ceiling, and roof substructures made of wood or metal
- Installation of windows, gates, doors, squared timber, and wall coverings
- Mounting wardrobes, kitchen wall units, TV consoles, and cable trays
- Suitable for concrete, solid and perforated bricks, aerated concrete, and gypsum plates
| Drive | TX40 |
|---|---|
| Quantity | 50 pcs |
| Plug length | 180 mm |
| Drill hole diameter | 10 mm |
| Minimum borehole depth | 50 mm |
| Effective length at 50 mm anchorage depth | 130 mm |
| Effective length at 70 mm anchorage depth | 110 mm |
| Effective length at 140 mm anchorage depth | 40 mm |
| Effective length at 160 mm anchorage depth | 20 mm |
| Material | Nylon |
| Colour | Red / grey |
| Screw head type | Countersunk head |
What drive bit is needed for installation?
The preassembled screws feature a TX40 drive, requiring a standard TX40 Torx bit.
Which building materials are compatible?
They are suitable for concrete (≥ C12/15), solid and perforated bricks, sand-lime bricks, aerated concrete, lightweight concrete, dense natural stone, and solid gypsum plates.
Are screws included in the package?
Yes, the package includes 50 nylon plugs with preassembled countersunk head safety screws.
