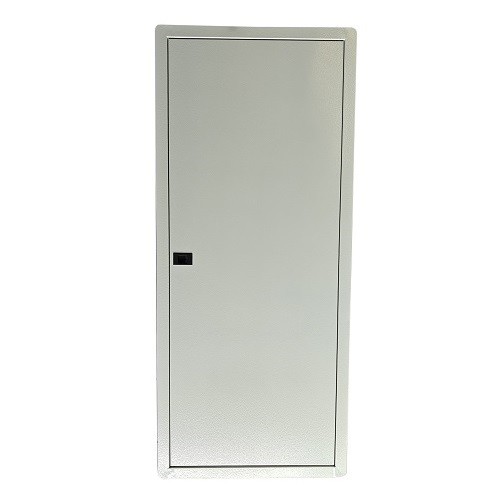

TIBOX Flush Mount Metal MCB Distribution Box 6x16P, 440x1050x115mm
Price: 82.20 €
| Products ID: | 171421 |
|---|---|
| Manufactured by: | Tibox |
| Availablity: | Ready to Order |
| Delivery Time | 5-10 business days |
| EAN: | 9990000992775 |
Delivery options to:
Choose countryThe TIBOX flush-mounting metal distribution box is designed for the installation of circuit breakers in residential or industrial indoor premises.
Key Features
- Accommodates 6 rows of DIN rails with 16 breaker contacts each (6x16P)
- Constructed from 1.2 mm sheet steel
- IP54 safety class for moisture and dust resistance
- Epoxy polyester powder-coated textured finish in RAL 7035 light gray
- Frame with knock-outs on all sides for neat wire management
- Includes box body, door and lock system, DIN rails, and front frame with cutouts
| Installation type | Flush mount |
|---|---|
| Number of breakers | 6 rows x 16P |
| Body material | Sheet steel |
| Wall and door thickness | 1.2 mm |
| Safety class | IP54 |
| Height | 1050 mm |
| Width | 440 mm |
| Depth | 115 mm |
| Color | RAL 7035 light gray |
What is included in the package?
The package contains the box body, door and lock system, DIN rails, and a front frame with cutouts.
How many circuit breaker modules can this enclosure hold?
It accommodates 6 DIN rail rows with 16 poles per row, offering a 6x16P configuration.
What is the ingress protection rating?
The enclosure has an IP54 safety class for protection against moisture and dust, suitable for indoor use.
