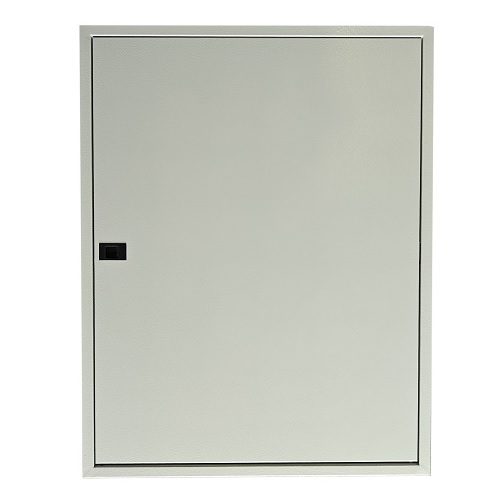

MCB Distribution Box TIBOX 585x750x115mm, 4x24P, Surface Mount, IP54
Price: 77.70 €
| Products ID: | 171422 |
|---|---|
| Manufactured by: | Tibox |
| Availablity: | Ready to Order |
| Delivery Time | 5-10 business days |
| EAN: | 9990000992690 |
Delivery options to:
Choose countryThe TIBOX surface mount metal distribution enclosure is designed for the installation of circuit breakers in residential and industrial indoor environments.
Key Features
- Accommodates 4 rows of 24 breaker modules each
- Sheet steel construction with 1.2 mm thick walls and door
- Epoxy polyester powder-coated textured finish in light gray (RAL 7035)
- IP54 protection rating against dust and moisture
- Knock-outs on all sides of the frame for organized wiring
- Supplied with enclosure body, door and lock system, DIN rails, and cutout front frame
| Brand | TIBOX |
|---|---|
| Installation type | Surface mount |
| Capacity | 4 rows x 24 P |
| Safety class | IP54 |
| Body material | Sheet steel |
| Wall and door thickness | 1.2 mm |

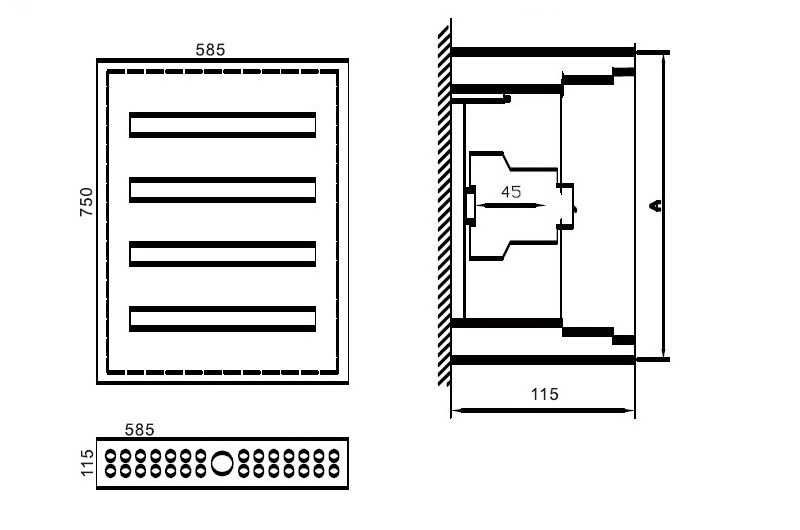

| Height | 750 mm |
| Width | 585 mm |
| Depth | 115 mm |
| Color | RAL 7035 light gray |
What is the breaker capacity of this enclosure?
The box holds up to 4 rows with 24 breaker contacts per row (total capacity of 96 poles/modules).
What components are included in the package?
The package includes the metal enclosure body, door with lock system, DIN rails, and the front frame with cutouts.
