Flush Mount Distribution Enclosure TIBOX 585x900x115mm, 5x24P, IP54
Price: 80.70 €
| Products ID: | 171420 |
|---|---|
| Manufactured by: | Tibox |
| Availablity: | Ready to Order |
| Delivery Time | 5-10 business days |
| EAN: | 9990000992768 |
Delivery options to:

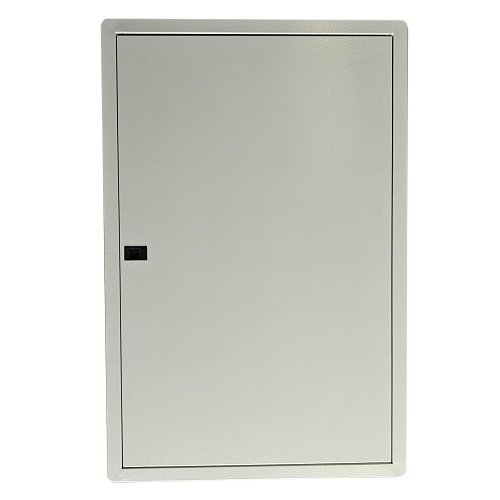

Choose countryThe TIBOX flush mount metal distribution enclosure is designed for installing circuit breakers in residential or industrial indoor environments.
Key Features
- Capacity: 5 rows of 24 breaker contacts (5x24P) on 5 DIN rails
- Body made of 1.2 mm sheet steel
- IP54 safety class for protection against moisture and dust
- Textured epoxy polyester powder coated finish in light gray (RAL 7035)
- Package includes enclosure body, door with lock system, DIN rails, and cutout front frame
| Brand | TIBOX |
|---|---|
| Installation type | Flush mount |
| Breaker capacity | 5 rows x 24 P |
| Number of DIN rails | 5 |
| Body material | Sheet steel |
| Wall and door thickness | 1.2 mm |
| Protection class | IP54 |
| Intended environment | Indoor use |

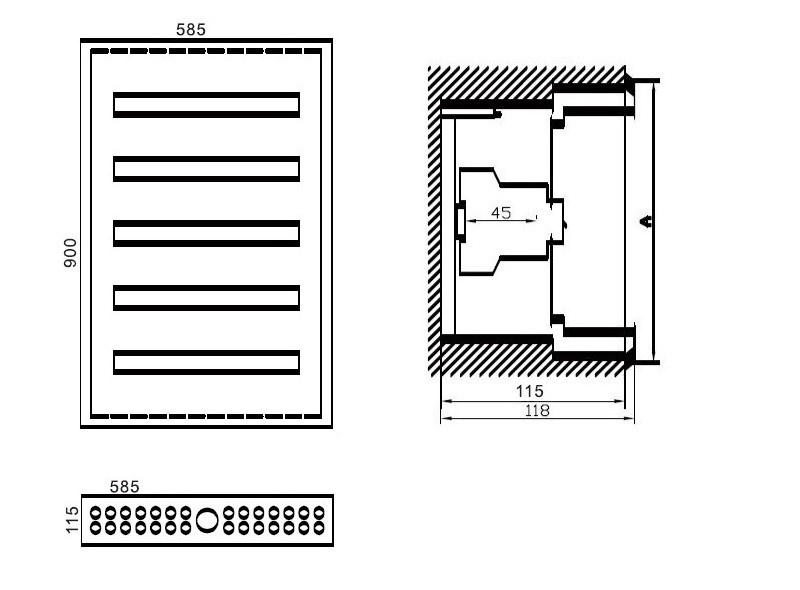

| Width | 585 mm |
| Height | 900 mm |
| Depth | 115 mm |
| Color | Light gray (RAL 7035) |
How many modules can be installed in this enclosure?
The enclosure accommodates 5 rows with 24 contacts per row (5x24P) on 5 included DIN rails.
What is included in the package?
The package includes the box body, door and lock system, DIN rails, and a front frame with cutouts.
