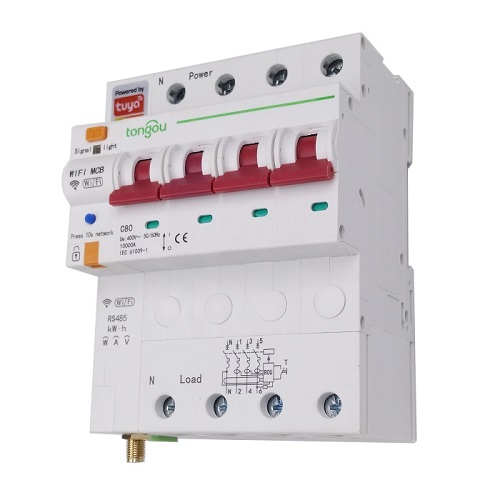

Tuya Smart 4-Pole Circuit Breaker Wi-Fi, RS485, 63A
Price: 194.40 €
| Products ID: | 170525 |
|---|---|
| Manufactured by: | Tuya |
| Availablity: | Ready to Order |
| Delivery Time | 5-10 business days |
| EAN: | 9990001082260 |
Delivery options to:
Choose countryThe Tuya Smart 4-pole circuit breaker enables remote control and real-time energy monitoring for household appliances via 2.4 GHz Wi-Fi and RS485.
Key Features
- Monitors electric energy consumption, voltage levels, current, and power factor with preset thresholds
- Remote control via TuyaSmart and SmartLife mobile apps (Android, iOS) and voice control with Amazon Alexa and Google Assistant
- Standard installation on 35x7.5 mm DIN rail
- Supports automated scenarios, schedules, and timers
- Integrated overload, short circuit, overvoltage, creepage, and leakage protection
- Includes 2 external Wi-Fi antennas
| Voltage | AC 400 V |
|---|---|
| Maximum Current | 63 A |
| Frequency | 50/60 Hz |
| Wi-Fi Frequency | 2.4 GHz |
| Communication Interface | RS485 |
| Application | TuyaSmart / SmartLife (Android, iOS) |
| Voice Assistant Compatibility | Amazon Alexa, Google Assistant |
| Mounting | On DIN rail (35x7.5 mm) |
| Dimensions | 89 x 115 x 74 mm |
| Operating Temperature | -25°C ~ +70°C |
| Mechanical Service Life | > 100,000 |
| Weight | 690 g |
| Color | White |
| Package Contents | 2 Wi-Fi antennas |
Which mobile app is compatible with this circuit breaker?
The circuit breaker works with the TuyaSmart and SmartLife apps available on Android and iOS.
What electrical parameters does the metering function record?
It records electric energy consumption, voltage, current, and power factor.
How is the device installed?
It is designed for mounting on a standard 35x7.5 mm DIN rail.
