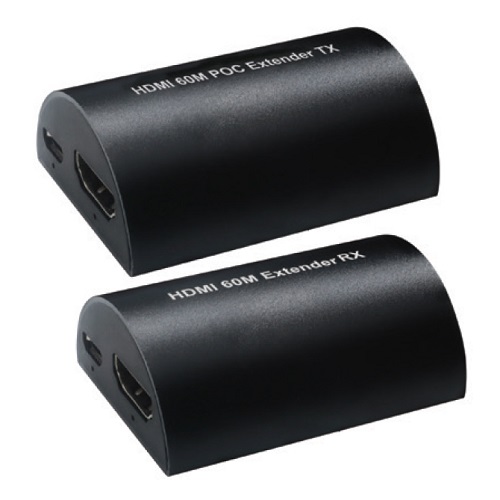

HDMI Extender 60m over Cat5e/Cat6 Cable, 1080P with PoC
Price: 34.50 €
| Products ID: | 170485 |
|---|---|
| Manufactured by: | Extra Digital |
| Availablity: | Ready to Order |
| Delivery Time | 5-10 business days |
| EAN: | 9990000913794 |
Delivery options to:
Choose countryThis HDMI extender transmits high-definition audio and video signals up to 60 meters using a single Cat5e or Cat6 cable instead of a long HDMI cable.
Key Features
- Long-distance transmission up to 60 m using a Cat5e or Cat6 cable
- Full HD resolution support up to 1080p at 60Hz
- PoC (Power over Cable) feature powers the kit from the TX unit
- Supports AWG26 HDMI cables: input up to 10 m, output up to 15 m
- Powered via micro USB cable (5V)
| Max transmission distance | 60 m (Cat5e / Cat6 cable) |
|---|---|
| Supported resolution | 1080p / 1080i / 720p / 576p / 576i / 480p / 480i |
| Bandwidth | 150 MHz |
| Baud rate | 4.5 Gbps |
| HDMI cable length (AWG26) | Input up to 10 m, output up to 15 m |
| Power supply | DC 5V / 1A (micro USB) |
| PoC function | Yes (power over network cable from TX) |
| Operating current | TX max 300 mA, RX max 300 mA |
| Operating temperature | -15°C ~ +45°C |
| Operating humidity | 5–90% RH |
| Dimensions | 52 x 38 x 17 mm |
| Weight | TX 24.5 g, RX 24.9 g |
| Package contents | Transmitter (TX) x1, Receiver (RX) x1, Micro USB cable x1 |
What cable is required to connect the transmitter and receiver?
A single standard Cat5e or Cat6 network cable is used to transmit the signal up to 60 meters.
Do both units require a separate power supply?
No, with the PoC (Power over Cable) feature, connecting the 5V micro USB power supply to the TX unit powers the entire setup.
What is included in the package?
The package includes 1 transmitter (TX), 1 receiver (RX), and 1 micro USB cable.
