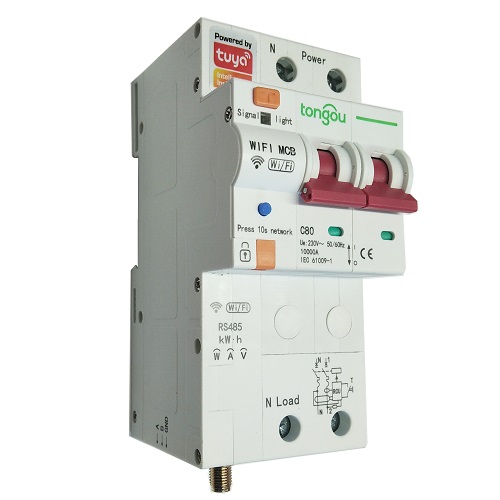

TUYA Smart 2-Pole Circuit Breaker Wi-Fi, RS485, 80A
Price: 147.60 €
| Products ID: | 170722 |
|---|---|
| Manufactured by: | Tuya |
| Availablity: | Ready to Order |
| Delivery Time | 5-10 business days |
| EAN: | 9990001081997 |
Delivery options to:
Choose countryThe TUYA smart 2-pole switch enables remote management and power consumption monitoring for household appliances via 2.4GHz Wi-Fi and TuyaSmart or SmartLife apps.
Key Features
- Remote control and real-time energy metering via TuyaSmart / SmartLife app
- Voice control compatibility with Amazon Alexa and Google Assistant
- RS485 communication interface and 2.4 GHz Wi-Fi connectivity
- Built-in protection against overload, short circuit, overvoltage, creepage, and leakage
- DIN rail mounting (35x7.5 mm)

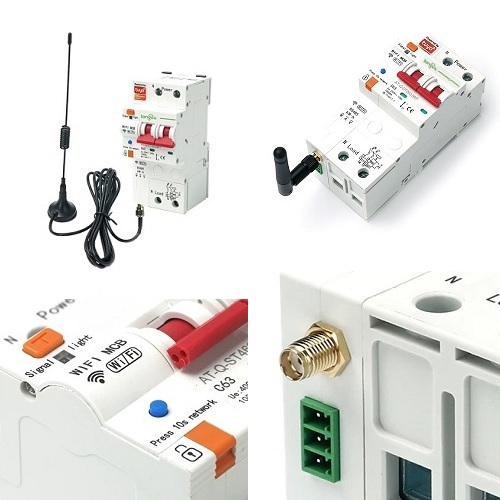

- Package includes 2 Wi-Fi antennas
| Brand | TUYA |
|---|---|
| Number of poles | 2 |
| Voltage | AC 100 ~ 230 V |
| Current | max. 80A |
| Frequency | 50/60Hz |
| Wi-Fi frequency | 2.4 GHz |
| RS485 interface | Baud rate 9600, address range 1-247 |
| Application | TuyaSmart / SmartLife (Android, iOS) |
| Voice control | Amazon Alexa, Google Assistant |
| Mounting | On DIN rail, 35x7.5mm |
| Dimensions | 116x53x66 mm |
| Weight | 396g |
| Operating temperature | -25°C ~+70°C (max) |
| Mechanical service life | > 100,000 |
| Color | White |
| Warranty | 24 months |
What electrical data does the metering feature record?
It records electric energy consumption, voltage levels, current, and power factor, and allows downloading consumption data in the app.
What is included in the package?
The set includes the 2-pole smart switch and 2 Wi-Fi antennas.
How is the circuit breaker installed?
The device is installed on a standard 35x7.5 mm DIN rail.
