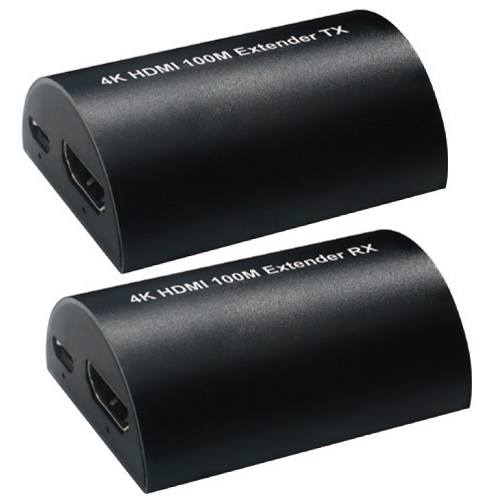

HDMI Extender over Cat5e/Cat6 Cable up to 100m, 4K
Price: 74.90 €
| Products ID: | 170503 |
|---|---|
| Manufactured by: | Extra Digital |
| Availablity: | Ready to Order |
| Delivery Time | 5-10 business days |
| EAN: | 9990000913800 |
Delivery options to:
Choose countryThis HDMI extender transmits high-definition 4K audio and video signals over distances of up to 100 meters using a single Cat5e or Cat6 network cable instead of an HDMI cable.
Key Features
- Long-distance transmission up to 100m using Cat5e or Cat6 cable
- Supports video resolutions up to 4K / 60Hz
- Supports standard AWG26 HDMI cables up to 10m on input and output
- Powered via included Micro USB cables
- Maximum bandwidth of 340MHz and baud rate of 3x3.4Gbps
| Max transmission distance | 100m (Cat5e / Cat6) |
|---|---|
| HDMI resolution | 4K / 60Hz (4K / 1080p / 1080i / 720p / 576p / 576i / 480p / 480i) |
| HDMI AWG26 cable length (input/output) | Up to 10m |
| Max bandwidth | 340MHz |
| Max baud rate | 3x3.4Gbps |
| Input video signal | 0.5-1.5V p-p |
| Output DDC signal | 5V p-p (TTL) |
| Power supply | DC 5V / 1A (Micro USB) |
| Max transmitter (TX) operating current | 350mA |
| Max receiver (RX) operating current | 200mA |
| Operating temperature | -15°C ~ +45°C |
| Operating humidity | 5-90% RH |
| Dimensions | 52x38x17 mm |
| Weight | TX 24.0g; RX 24.4g |
| Package contents | Transmitter (TX) x1, Receiver (RX) x1, Micro USB cable x2 |
What cable is required to connect the transmitter and receiver?
A single Cat5e or Cat6 network cable is used to transmit the signal up to 100 meters.
What is the maximum supported HDMI cable length?
The extender supports standard AWG26 HDMI cables up to 10 meters on both input and output ports.
What items are included in the package?
The package includes 1 transmitter (TX), 1 receiver (RX), and 2 Micro USB power cables.
