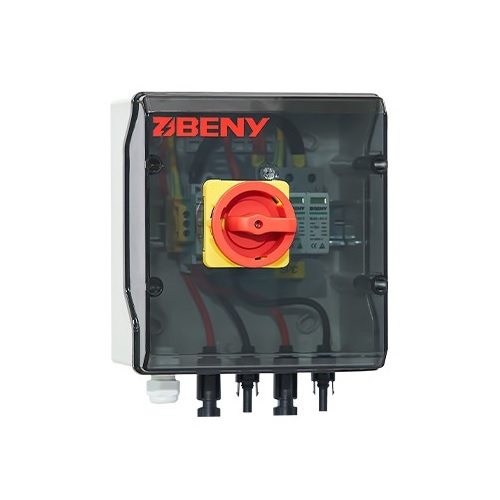

Solar PV DC Combiner Box 1 In 1 Out 1000V IP66
Price: 119.80 €
| Products ID: | 170720 |
|---|---|
| Manufactured by: | Beny |
| Availablity: | Ready to Order |
| Delivery Time | 5-10 business days |
| EAN: | 9990000820122 |
Delivery options to:
Choose countryThis DC combiner box is designed for 1-string solar PV systems to provide DC-side surge protection and circuit isolation.
Key Features
- 1 input and 1 output for 1000V DC systems
- DC switch: 2P, 1000V, 25A with a lockable handle and arc extinguishing chamber
- DC SPD: 3P, 1000V, 40kA for solar surge protection
- IP66 waterproof enclosure with IK10 impact resistance and V0 flame retardancy
- UV resistant housing supplied with MC4 connectors and cable glands
| Configuration | 1 input / 1 output (1 string) |
|---|---|
| Rated Voltage | 1000V DC |
| DC Switch | 2P, 1000V, 25A (1 pc) |
| DC SPD | 3P, 1000V, 40kA (1 pc) |
| Protection Rating | IP66 |
| Impact Resistance | IK10 |
| Flame Retardant Rating | V0 |
| UV Resistance | Yes |
| Package Contents | Enclosure, MC4 connectors, cable glands |
How many PV strings does this combiner box support?
It is designed for a 1-string solar PV system with 1 DC input and 1 DC output rated up to 1000V DC.
Which protection devices are included inside?
It contains one 2P 1000V 25A DC switch and one 3P 1000V 40kA DC surge protection device (SPD).
What is included in the package?
The set includes the IP66 combiner box, MC4 connectors, and cable glands.
