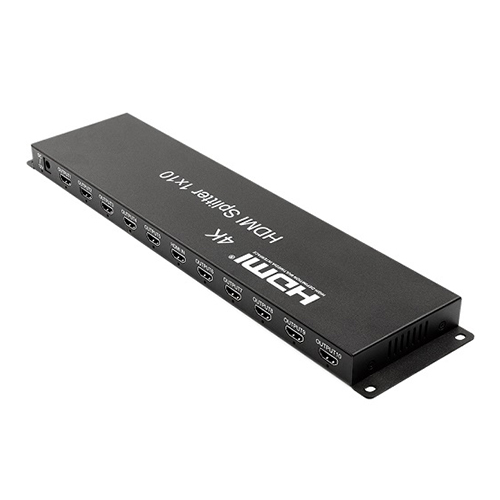

HDMI Splitter 1x10, 4K 30Hz, 3D, HDMI 1.4b
Price: 71.50 €
| Products ID: | 170355 |
|---|---|
| Manufactured by: | Extra Digital |
| Availablity: | Ready to Order |
| Delivery Time | 5-10 business days |
| EAN: | 9990000912506 |
Delivery options to:

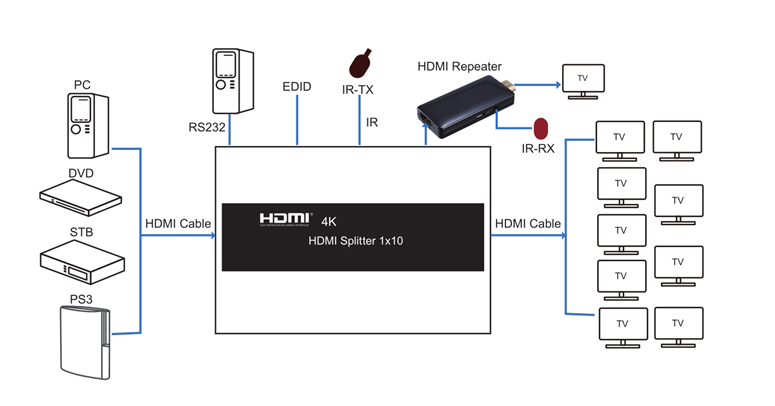

Choose countryThis 1x10 HDMI splitter distributes an audio and video signal from a single HDMI source to 10 HDMI-compatible displays, monitors, or projectors with resolutions up to 4K at 30Hz.
Key Features
- HDMI 1.4b and HDCP 1.4 support
- Supports resolutions up to 4K (3840x2160) at 30Hz and 3D video
- 10 EDID management modes and CEC support on 1 output
- Supports standard AWG26 cables: input up to 5m, output up to 10m
- Built-in IR extension function for source control
| Input ports | 1x HDMI |
|---|---|
| Output ports | 10x HDMI |
| HDMI version | HDMI 1.4b |
| HDCP version | HDCP 1.4 |
| Max resolution | 3840x2160 / 30Hz |
| Supported resolutions | 3840x2160, 1920x1080, 1280x1024, 1280x720, 1024x768 |
| Color depth | 8/10/12 bit |
| Max transfer rate | 3.4 Gbps |
| Max bandwidth | 340 MHz |
| Cable distance (AWG26) | Input up to 5m, output up to 10m |
| Power supply | AC 100V-240V (50/60Hz); DC 12V / 2A |
| Operating temperature | -15°C ~ +55°C |
| Operating humidity | 5-90% RH |
| Dimensions | 375 x 89 x 22 mm |
| Weight | 780 g |
How many displays can be connected simultaneously?
The splitter features 1 HDMI input and 10 HDMI outputs, allowing you to connect up to 10 displays or projectors.
What is the maximum resolution supported?
The device supports video resolutions up to 4K (3840x2160) at 30Hz.
What is the maximum supported HDMI cable length?
Using standard AWG26 HDMI cables, the input cable can be up to 5 meters and the output cables up to 10 meters.
