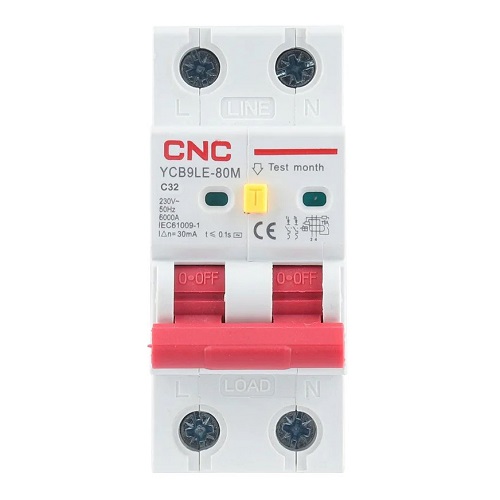

Residual Current Breaker with Overcurrent Protection RCBO 2P 32A C 30mA 6kA
Price: 25.60 €
| Products ID: | 171149 |
|---|---|
| Manufactured by: | CNC |
| Availablity: | Ready to Order |
| Delivery Time | 5-10 business days |
| EAN: | 6942034323714 |
Delivery options to:
Choose countryResidual current circuit breaker with overcurrent protection (RCBO) designed for AC 230V systems to provide combined circuit protection against overloading, short circuits, and earth leakage currents.
Key Features
- Combined protection against overloading, short-circuiting, and earth leakage
- Contact position indicator (red indicates closed, green indicates opened)
- Flame retardant, high temperature resistant, and impact resistant housing
- Anti-mistake contact terminal block
| Device Type | Residual Current Breaker with Overcurrent Protection (RCBO) |
|---|---|
| Number of Poles | 2 |
| Rated Current (In) | 32 A |
| Class / Tripping Characteristic | C |
| Rated Voltage (Ue) | AC 230 V |
| Rated Sensitivity | 30 mA |
| Breaking Capacity | 6 kA |
What protection does this RCBO provide?
It provides combined protection against overloads, short circuits, and earth leakage currents.
How do the contact position indicators work?
The indicator displays red when the contacts are closed and green when the contacts are opened.
