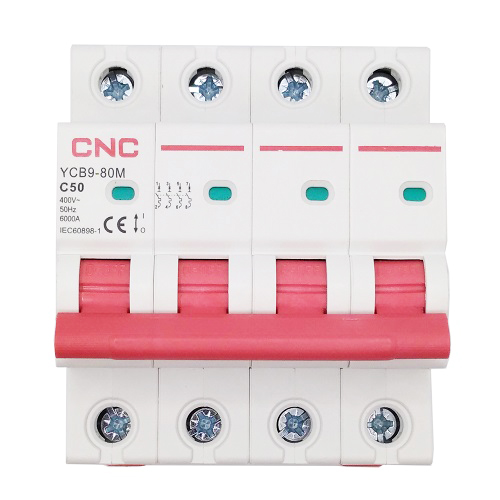

Miniature Circuit Breaker, 4P, 50A, Class C, 6kA
Price: 29.70 €
| Products ID: | 171154 |
|---|---|
| Manufactured by: | CNC |
| Availablity: | Ready to Order |
| Delivery Time | 5-10 business days |
| EAN: | 6942034316174 |
Delivery options to:
Choose countryThis 4-pole miniature circuit breaker provides reliable electrical protection against overloads and short circuits. It features contact position indication and mounts quickly onto standard DIN rails.
Key Features
- Protection against overload and short circuit
- Contact position indicator (red indicates closed, green indicates open)
- Flame retardant, high temperature and impact resistant housing
- Mounts on 35mm DIN rail EN 60715
- Supports cable or pin-type busbar up to 25mm²
| Number of Poles | 4 |
|---|---|
| Rated Current (In) | 50 A |
| Tripping Characteristic | Class C |
| Rated Voltage (Ue) | AC 400 V |
| Insulation Voltage (Ui) | 500 V |
| Rated Frequency | 50/60 Hz |
| Rated Breaking Capacity (Icu) | 6000 A |
| Rated Impulse Withstand Voltage (Uimp) | 6000 V |
| Protection Rating | IP20 |
| Mechanical Life | 20000 operations |
| Electrical Life | 8000 operations |
| Wire / Busbar Cross-Section | up to 25mm² / 18-3 AWG |
| Mounting Type | DIN rail EN 60715 (35mm) |
| Operating Temperature | -5°C ~ +40°C |
What does the contact position indicator show?
The indicator shows red when contacts are closed and green when contacts are open.
What wire sizes are compatible with the terminals?
The terminals accept cables and pin-type busbars with cross-sections up to 25mm² (18-3 AWG).
How is this circuit breaker mounted?
It is installed onto a standard 35mm DIN rail (EN 60715) using a fast clip mechanism.
