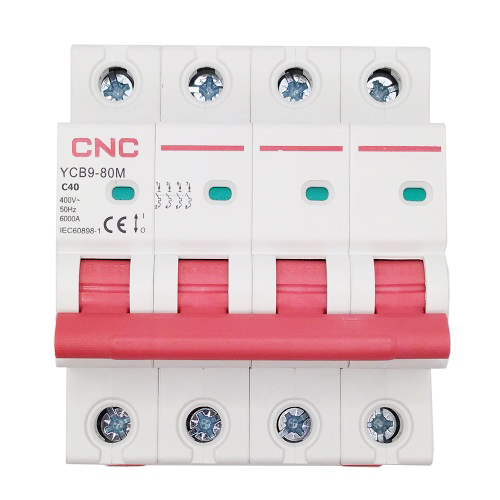

Miniature Circuit Breaker, 4P, 40A, Class C, 6kA
Price: 24.60 €
| Products ID: | 171145 |
|---|---|
| Manufactured by: | CNC |
| Availablity: | Ready to Order |
| Delivery Time | 5-10 business days |
| EAN: | 6942034316167 |
Delivery options to:
Choose countryA 4-pole miniature circuit breaker designed for electrical protection against overloads and short circuits.
Key Features
- Protection against overload and short circuits
- Contact position indicator (red indicates closed, green indicates open)
- Anti-mistake contact terminal block
- Flame retardant, high temperature resistant, and impact resistant housing
- Fast clip installation on 35mm DIN rail (EN 60715)
| Number of Poles | 4 |
|---|---|
| Rated Current (In) | 40 A |
| Tripping Characteristic | Class C |
| Rated Voltage (Ue) | AC 400 V |
| Insulation Voltage (Ui) | 500 V |
| Rated Frequency | 50/60 Hz |
| Rated Breaking Capacity (Icu) | 6000 A |
| Rated Impulse Withstand Voltage (Uimp) | 6000 V |
| Mechanical Life | 20000 times |
| Electrical Life | 8000 times |
| Safety Class | IP20 |
| Terminal Connection Type | Cable / pin-type busbar |
| Wire / Busbar Cross-Sectional Area | Up to 25 mm² / 18-3 AWG |
| Connection | Top and bottom |
| Installation | On DIN rail EN 60715 (35mm) |
| Operating Temperature | -5°C ~ +40°C |
How is this circuit breaker mounted?
It is mounted on a standard 35mm DIN rail (EN 60715) using a fast clip mechanism.
How does the contact position indicator work?
The window indicates red when the contacts are closed and green when they are opened.
What wire size can be connected to the terminals?
The terminals accept cable or pin-type busbar connections with a cross-sectional area of up to 25 mm² (18-3 AWG).
