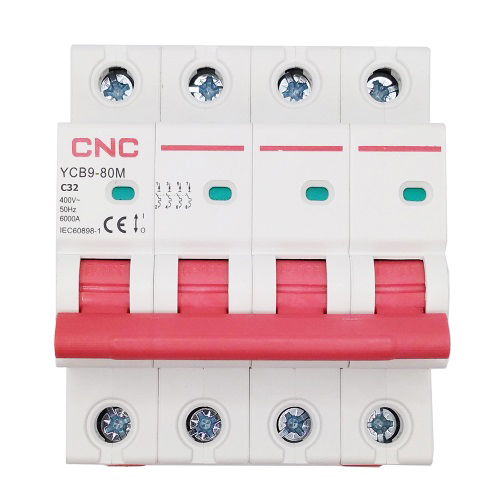

Miniature Circuit Breaker, 4P, 32A, Class C, 6kA
Price: 18.90 €
| Products ID: | 171152 |
|---|---|
| Manufactured by: | CNC |
| Availablity: | Ready to Order |
| Delivery Time | 5-10 business days |
| EAN: | 6942034316150 |
Delivery options to:
Choose countryMiniature circuit breaker designed to provide reliable protection against electrical overload and short circuits.
Key Features
- Protection against overload and short circuit
- Contact position indicator (red indicates closed, green indicates open)
- Flame-retardant, high-temperature, and impact-resistant body
- Top and bottom connection for cable or pin-type busbar
- Fast clip mounting on 35mm DIN rail (EN 60715)
| Number of poles | 4 |
|---|---|
| Rated current (In) | 32 A |
| Tripping curve | C |
| Rated voltage (Ue) | AC 400 V |
| Insulation voltage (Ui) | 500 V |
| Rated frequency | 50/60 Hz |
| Rated breaking capacity (Icu) | 6000 A |
| Rated impulse withstand voltage (Uimp) | 6000 V |
| Mechanical endurance | 20000 times |
| Electrical endurance | 8000 times |
| Protection rating | IP20 |
| Terminal connection type | cable / pin-type busbar |
| Wire/busbar cross-sectional area | up to 25mm² / 18-3 AWG |
| Installation | on DIN rail EN 60715 (35mm) |
| Operating temperature | -5°C ~ +40°C |
How is this circuit breaker mounted?
It is installed on a standard 35mm DIN rail (EN 60715) using a fast clip mechanism.
What wire sizes are supported by the terminals?
The terminals support wire or pin-type busbar cross-sections up to 25mm² (18-3 AWG).
