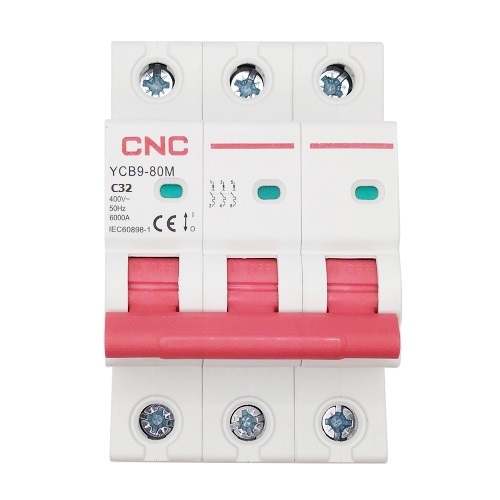

Miniature Circuit Breaker, 3P, 32A, Class C, 6kA
Price: 10.00 €
| Products ID: | 171176 |
|---|---|
| Manufactured by: | CNC |
| Availablity: | Ready to Order |
| Delivery Time | 5-10 business days |
| EAN: | 6942034315795 |
Delivery options to:
Choose countryThree-pole miniature circuit breaker (3P) with 32A rated current and Class C tripping characteristic, designed for circuit protection against overloads and short circuits.
Key Features
- Protection against overload and short circuit
- Contact position indicator (red: closed, green: opened)
- Flame retardant, high temperature resistant, and impact resistant housing
- Top and bottom connection via cable or pin-type busbar up to 25mm²
- Quick mounting on standard 35mm DIN rail (EN 60715)
| Number of poles | 3 |
|---|---|
| Rated current (In) | 32 A |
| Tripping curve | C |
| Rated voltage (Ue) | AC 400 V |
| Insulation voltage (Ui) | 500 V |
| Rated frequency | 50/60 Hz |
| Rated breaking capacity (Icu) | 6000 A |
| Rated impulse withstand voltage (Uimp) | 6000 V |
| Mechanical life | 20000 times |
| Electrical life | 8000 times |
| Safety class | IP20 |
| Terminal connection type | Cable / pin-type busbar |
| Wire/busbar cross-sectional area | Up to 25mm² / 18-3 AWG |
| Connection | From top and bottom |
| Installation | On DIN rail EN 60715 (35mm) |
| Operating temperature | -5°C ~ +40°C |
How is this circuit breaker installed?
It is installed on a standard 35mm DIN rail (EN 60715) using a fast clip mechanism.
What wire sizes can be connected to the terminals?
The terminals support cable or pin-type busbar connections with cross-sectional areas up to 25mm² (18-3 AWG).
What do the contact position indicator colors mean?
Red indicates that the contacts are closed (powered on), and green indicates that the contacts are opened (powered off).
