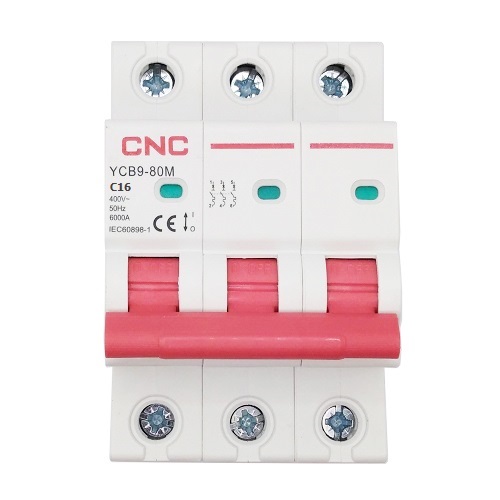

Miniature Circuit Breaker, 3P, 16A, Class C, 6kA
Price: 9.70 €
| Products ID: | 171174 |
|---|---|
| Manufactured by: | CNC |
| Availablity: | Ready to Order |
| Delivery Time | 5-10 business days |
| EAN: | 6942034315764 |
Delivery options to:
Choose countryA 3-pole miniature circuit breaker designed to provide effective protection against electrical overload and short circuits.
Key Features
- Protection against overload and short circuits
- Contact position indication (red for closed, green for open)
- Mounts on standard 35mm DIN rail EN 60715
- Top and bottom connection for cable or pin-type busbar
| Number of contacts / poles | 3 |
|---|---|
| Rated current (In) | 16 A |
| Tripping class | C |
| Rated voltage (Ue) | AC 400 V |
| Insulation voltage (Ui) | 500 V |
| Rated frequency | 50/60 Hz |
| Rated breaking capacity (Icu) | 6000 A |
| Rated impulse withstand voltage (Uimp) | 6000 V |
| Mechanical endurance | 20000 cycles |
| Electrical endurance | 8000 cycles |
| Protection rating | IP20 |
| Wire cross-section | Up to 25 mm² / 18-3 AWG |
| Mounting | DIN rail EN 60715 (35mm) |
| Operating temperature | -5°C ~ +40°C |
What does the contact position indicator show?
Red indicates that the contacts are closed, while green indicates that the contacts are open.
What type of mounting is required?
It is installed on a 35mm DIN rail (EN 60715) using a fast clip mechanism.
