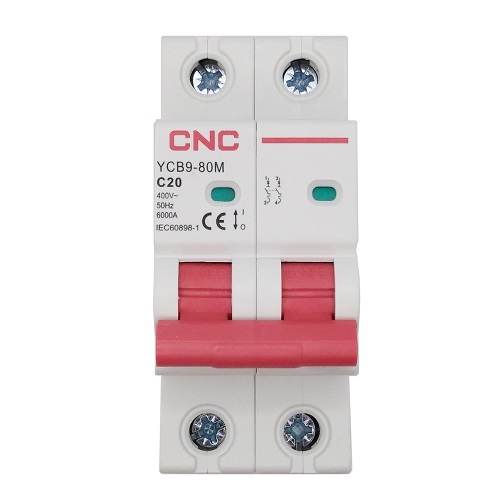

Miniature Circuit Breaker 2P 20A Class C 6kA
Price: 10.70 €
| Products ID: | 171181 |
|---|---|
| Manufactured by: | CNC |
| Availablity: | Ready to Order |
| Delivery Time | 5-10 business days |
| EAN: | 6942034315405 |
Delivery options to:
Choose countryThis 2-pole miniature circuit breaker (20A, Class C, 6kA) provides effective circuit protection against electrical overloads and short circuits.
Key Features
- Overload and short-circuit protection
- Contact position indicator (red indicates closed, green indicates open)
- Flame retardant, impact resistant, and high-temperature resistant body
- Fast clip mounting on 35mm DIN rail (EN 60715)
| Number of poles | 2 |
|---|---|
| Rated current (In) | 20 A |
| Tripping characteristic | Class C |
| Rated voltage (Ue) | AC 400 V |
| Insulation voltage (Ui) | 500 V |
| Rated frequency | 50/60 Hz |
| Rated breaking capacity (Icu) | 6000 A |
| Rated impulse withstand voltage (Uimp) | 6000 V |
| Mechanical life | 20000 operations |
| Electrical life | 8000 operations |
| Safety class | IP20 |
| Wire / busbar cross-sectional area | up to 25 mm² / 18-3 AWG |
| Connection | top and bottom |
| Installation | on DIN rail EN 60715 (35mm) |
| Operating temperature | -5°C ~ +40°C |
How is this circuit breaker mounted?
It is installed onto a standard 35mm DIN rail (EN 60715) using a fast clip mechanism.
What do the contact position indicator colors mean?
Red indicates that the contacts are closed, while green indicates that the contacts are open.
