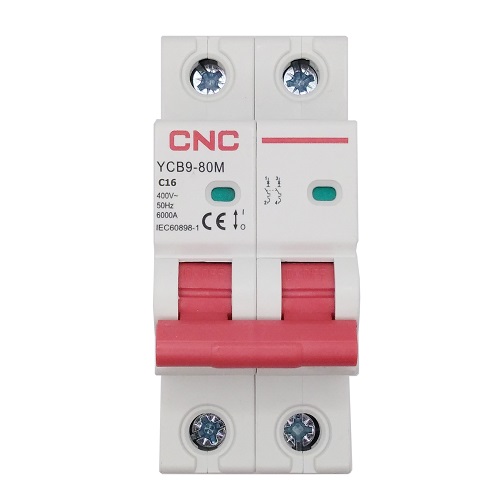

Miniature Circuit Breaker 2P, 16A, Class C, 6kA
Price: 10.70 €
| Products ID: | 171180 |
|---|---|
| Manufactured by: | CNC |
| Availablity: | Ready to Order |
| Delivery Time | 5-10 business days |
| EAN: | 6942034315399 |
Delivery options to:
Choose countryThis 2-pole miniature circuit breaker is designed to protect electrical circuits against overloads and short circuits. It features contact position indication and mounts easily onto a standard 35mm DIN rail.
Key Features
- Protection against overload and short circuit
- Contact position indicator (red indicates closed, green indicates open)
- Mounts on 35mm DIN rail (EN 60715) via fast clip
- Top and bottom connection using cable or pin-type busbar
- Flame retardant, high temperature and impact resistant housing
| Number of poles | 2 |
|---|---|
| Rated current (In) | 16 A |
| Tripping curve | Class C |
| Rated voltage (Ue) | AC 400 V |
| Insulation voltage (Ui) | 500 V |
| Rated frequency | 50/60 Hz |
| Rated breaking capacity (Icu) | 6000 A |
| Rated impulse withstand voltage (Uimp) | 6000 V |
| Mechanical life | 20000 operations |
| Electrical life | 8000 operations |
| Safety class | IP20 |
| Wire / busbar cross-sectional area | up to 25 mm² / 18-3 AWG |
| Installation | on DIN rail EN 60715 (35mm) |
| Operating temperature | -5°C ~ +40°C |
How is the circuit breaker installed?
It is installed on a standard 35mm DIN rail (EN 60715) using a fast clip mechanism.
What conductor size can be connected?
The terminals accept cable or pin-type busbars with a cross-sectional area of up to 25 mm² (18-3 AWG).
