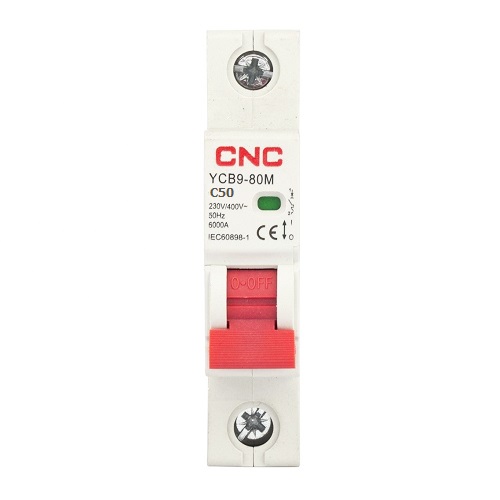

Miniature Circuit Breaker 1P, 50A, Class C, 6kA
Price: 6.40 €
| Products ID: | 171173 |
|---|---|
| Manufactured by: | CNC |
| Availablity: | Ready to Order |
| Delivery Time | 5-10 business days |
| EAN: | 6942034315085 |
Delivery options to:
Choose countrySingle-pole miniature circuit breaker rated at 50A with Class C tripping curve for reliable electrical circuit protection.
Key Features
- Protection against overload and short circuits
- Contact position indicator (red indicates closed, green indicates open)
- Mounts onto 35mm DIN rail EN 60715 via fast clip mechanism
- Top and bottom connection for wire or pin-type busbar up to 25mm²
- Flame retardant, high temperature resistant, and impact resistant housing
| Number of Poles | 1 |
|---|---|
| Rated Current (In) | 50 A |
| Tripping Characteristic | Class C |
| Rated Voltage (Ue) | AC 230/400 V |
| Insulation Voltage (Ui) | 500 V |
| Rated Frequency | 50/60 Hz |
| Rated Breaking Capacity (Icu) | 6000 A |
| Rated Impulse Withstand Voltage (Uimp) | 6000 V |
| Mechanical Life | 20000 operations |
| Electrical Life | 8000 operations |
| Protection Class | IP20 |
| Terminal Connection Type | Cable / pin-type busbar |
| Wire / Busbar Cross-Sectional Area | Up to 25 mm² / 18-3 AWG |
| Connection | From top and bottom |
| Installation | On DIN rail EN 60715 (35 mm) |
| Operating Temperature | -5°C ~ +40°C |
What is the wire capacity of the terminals?
The terminals accept cable or pin-type busbars with a cross-sectional area of up to 25 mm² (18-3 AWG).
How is the circuit breaker installed?
It is installed onto a standard 35 mm DIN rail (EN 60715) using a fast clip mechanism.
