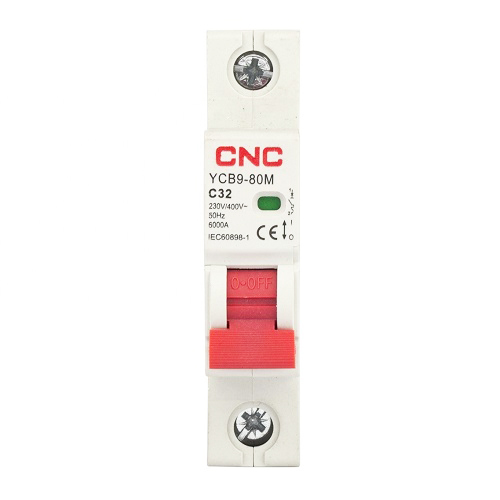

Miniature Circuit Breaker 1P, 32A, Class C, 6kA
Price: 6.40 €
| Products ID: | 171171 |
|---|---|
| Manufactured by: | CNC |
| Availablity: | Ready to Order |
| Delivery Time | 5-10 business days |
| EAN: | 6942034315061 |
Delivery options to:
Choose countrySingle-pole miniature circuit breaker designed for electrical protection against overloads and short circuits.
Key Features
- Protection against overload and short circuit
- Contact position indicator (red indicates closed, green indicates open)
- Top and bottom connection for cable or pin-type busbar up to 25 mm²
- Fast clip installation on EN 60715 (35 mm) DIN rail
- Flame retardant, temperature resistant, and impact resistant housing
| Number of poles | 1 |
|---|---|
| Rated current (In) | 32 A |
| Tripping curve | C |
| Rated voltage (Ue) | AC 230/400 V |
| Insulation voltage (Ui) | 500 V |
| Rated frequency | 50/60 Hz |
| Rated breaking capacity (Icu) | 6000 A |
| Rated impulse withstand voltage (Uimp) | 6000 V |
| Mechanical life | 20000 operations |
| Electrical life | 8000 operations |
| Safety class | IP20 |
| Wire/busbar cross-sectional area | up to 25mm² / 18-3 AWG |
| Installation | DIN rail EN 60715 (35mm) |
| Operating temperature | -5°C ~ +40°C |
What is the mounting method for this circuit breaker?
It is installed onto a standard 35 mm DIN rail (EN 60715) using a fast clip mechanism.
What wire sizes are supported by the terminal block?
The terminals support cables and pin-type busbars with a cross-sectional area of up to 25 mm² (18-3 AWG).
