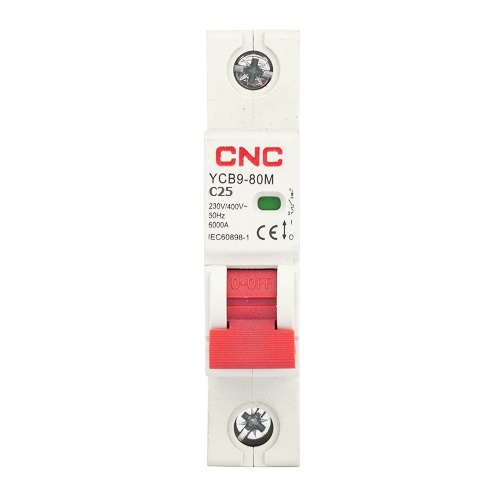

Miniature Circuit Breaker 1P 25A Class C 6kA
Price: 6.40 €
| Products ID: | 171170 |
|---|---|
| Manufactured by: | CNC |
| Availablity: | Ready to Order |
| Delivery Time | 5-10 business days |
| EAN: | 6942034315054 |
Delivery options to:
Choose countrySingle-pole miniature circuit breaker designed to protect electrical circuits against overloads and short circuits.
Key Features
- Protection against overload and short circuit
- Contact position indicator (red: closed, green: open)
- Mounts on 35 mm DIN rail EN 60715 via fast clip mechanism
- Flame retardant, high temperature and impact resistant body
- Connection from top and bottom via cable or pin-type busbar
| Number of contacts / poles | 1 |
|---|---|
| Rated current (In) | 25 A |
| Tripping class | C |
| Rated voltage (Ue) | AC 230/400 V |
| Insulation voltage (Ui) | 500 V |
| Rated frequency | 50/60 Hz |
| Rated breaking capacity (Icu) | 6000 A |
| Rated impulse withstand voltage (Uimp) | 6000 V |
| Mechanical life | 20000 cycles |
| Electrical life | 8000 cycles |
| Safety class | IP20 |
| Wire cross-sectional area | up to 25 mm² / 18-3 AWG |
| Installation | on DIN rail EN 60715 (35 mm) |
| Operating temperature | -5°C ~ +40°C |
How is this circuit breaker installed?
It installs on a standard EN 60715 35 mm DIN rail using a fast clip mechanism.
What does the contact position indicator show?
Red indicates that the contacts are closed, while green indicates that the contacts are open.
