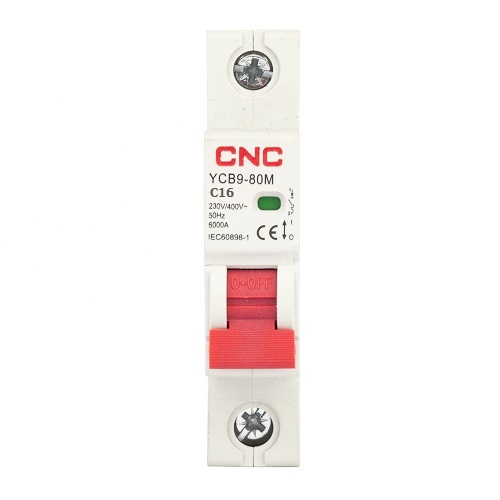

Miniature Circuit Breaker 1P 16A Class C 6kA
Price: 6.40 €
| Products ID: | 171169 |
|---|---|
| Manufactured by: | CNC |
| Availablity: | Ready to Order |
| Delivery Time | 5-10 business days |
| EAN: | 6942034315030 |
Delivery options to:
Choose countryThis 1-pole miniature circuit breaker is designed to protect electrical circuits against overload and short circuit conditions on a standard 35mm DIN rail.
Key Features
- Protection against overload and short circuits
- Contact position indication (red for closed, green for opened)
- Flame retardant, high temperature and impact resistant housing
- Anti-mistake contact terminal blocks
- Fast clip mounting on 35mm DIN rail (EN 60715)
- Top and bottom connection supporting cable and pin-type busbar up to 25mm²
| Number of contacts / poles | 1 |
|---|---|
| Rated current (In) | 16 A |
| Tripping characteristic / Class | C |
| Rated voltage (Ue) | AC 230/400 V |
| Insulation voltage (Ui) | 500 V |
| Rated frequency | 50/60 Hz |
| Rated breaking capacity (Icu) | 6000 A |
| Rated impulse withstand voltage (Uimp) | 6000 V |
| Mechanical life | 20000 operations |
| Electrical life | 8000 operations |
| Safety class | IP20 |
| Terminal connection type | cable / pin-type busbar |
| Wire/busbar cross-sectional area | up to 25mm² / 18-3 AWG |
| Installation | on DIN rail EN 60715 (35mm) |
| Operating temperature | -5°C ~ +40°C |
What DIN rail size is compatible with this breaker?
It is designed for mounting on standard EN 60715 (35mm) DIN rails using a fast clip device.
What is the maximum supported wire cross-section?
The terminals support cables and pin-type busbars with a cross-sectional area up to 25mm² (18-3 AWG).
What do the contact indicator colors show?
Red indicates that the contacts are closed (powered/on), while green indicates that the contacts are opened (off).
