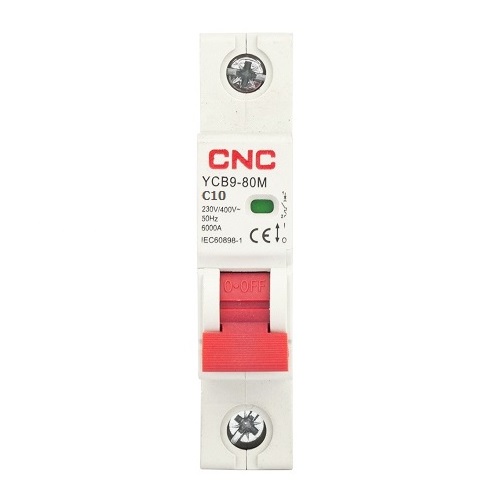

Miniature Circuit Breaker 1P 10A Class C 6kA
Price: 6.40 €
| Products ID: | 171168 |
|---|---|
| Manufactured by: | CNC |
| Availablity: | Ready to Order |
| Delivery Time | 5-10 business days |
| EAN: | 6942034315023 |
Delivery options to:
Choose countrySingle-pole miniature circuit breaker designed for electrical circuit protection against overload and short circuit.
Key Features
- Mounting on standard 35mm DIN rail (EN 60715) with fast clip
- Contact position indicator (red indicates closed, green indicates open)
- Connection from top and bottom via cable or pin-type busbar
- Flame retardant and impact resistant housing
- IP20 safety protection rating
| Number of poles | 1 |
|---|---|
| Rated current (In) | 10 A |
| Tripping characteristic | C |
| Rated voltage (Ue) | AC 230/400 V |
| Insulation voltage (Ui) | 500 V |
| Rated frequency | 50/60 Hz |
| Rated breaking capacity (Icu) | 6000 A |
| Rated impulse withstand voltage (Uimp) | 6000 V |
| Mechanical life | 20000 operations |
| Electrical life | 8000 operations |
| Safety class | IP20 |
| Terminal connection type | Cable / pin-type busbar |
| Wire cross-sectional area | Up to 25 mm² / 18-3 AWG |
| Installation | On DIN rail EN 60715 (35mm) |
| Operating temperature | -5°C ~ +40°C |
How is the circuit breaker mounted?
It is installed on a standard 35mm DIN rail (EN 60715) using a fast clip mechanism.
What is the contact position indication?
Red indicates that the contacts are closed (circuit ON), and green indicates that the contacts are open (circuit OFF).
