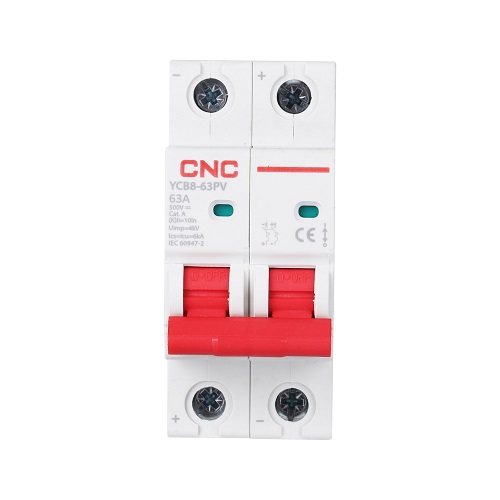

DC Miniature Circuit Breaker 2P 63A 500V DC 6kA Cat.A
Price: 16.70 €
| Products ID: | 171153 |
|---|---|
| Manufactured by: | CNC |
| Availablity: | Ready to Order |
| Delivery Time | 5-10 business days |
| EAN: | 6942367503326 |
Delivery options to:
Choose countryThis modular DC miniature circuit breaker ensures reliable operation in DC systems by providing isolation, short circuit, and overload protection. It is suitable for photovoltaic, industrial, telecommunication, and civil applications.
Key Features
- Rated operational voltage up to 500V DC and rated current up to 63A.
- Thermomagnetic tripping mechanism with an ultimate breaking capacity of 6000A.
- Visual contact position indication (red indicates closed, green indicates open).
- Modular design for installation on standard 35mm DIN rails.
- Compliant with IEC/EN 60947-2 standards and EU RoHS environmental requirements.
| Number of Poles | 2 |
|---|---|
| Nominal Current (In) | 63 A |
| Class | A |
| Rated Voltage (Ue) | DC 500 V |
| Insulation Voltage (Ui) | 1200 V |
| Ultimate Breaking Capacity (Icu) | 6000 A |
| Rated Impulse Withstand Voltage (Uimp) | 4000 V |
| Tripping Type | Thermomagnetic |
| Mechanical Life | 20000 times |
| Electrical Life | 1500 times |
| Protection Rating | IP20 |
| Wire Cross-Section Area | 2.5 - 25 mm² |
| Installation | On DIN rail (35mm) |
| Operating Temperature | -35°C ~ +70°C |
| Storage Temperature | -40°C ~ +85°C |
| Dimensions | 71.2 x 82 x 36 mm |
| Standards | IEC 60947-2 / EN 60947-2 |
What mounting method does this circuit breaker require?
It is designed for standard 35mm DIN rail mounting.
What wire cross-section is compatible with this breaker?
It accommodates wire cross-sections ranging from 2.5 mm² to 25 mm².
How does the contact position indicator work?
The window indicates red when the contacts are closed and green when the contacts are open.
