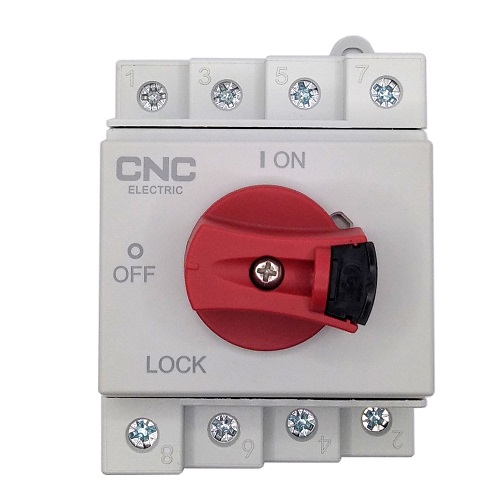

DC Isolator Switch 4P, 32A, 1000V DC, DIN Rail
Price: 27.80 €
| Products ID: | 171890 |
|---|---|
| Manufactured by: | CNC |
| Availablity: | Ready to Order |
| Delivery Time | 5-10 business days |
| EAN: | 6942108789859 |
Delivery options to:
Choose countryThis DC isolator switch is designed for safe isolation and disconnection of DC power distribution systems, control cabinets, combiner boxes, and solar PV installations.
Key Features
- Standard DIN rail mounting
- Capable of disconnecting 1–2 MPPT lines simultaneously
- Arcing time of 3 ms for effective circuit isolation
- Lockable handle in the closed/off position
- Non-polar design
- Flame-retardant and UV-resistant housing
| Number of contacts | 4 (4P) |
|---|---|
| Rated working voltage (Ue) | DC 1000V |
| Insulation voltage (Ui) | DC 1500V |
| Rated current (In) | 32A |
| Rated impulse voltage (Uimp) | 8kV |
| Mounting | DIN rail |
| Connector type | M4 |
| Wire cross-section | 4–16 mm² |
| Arcing time | 3 ms |
| Protection class | IP20, V0 |
| Mechanical life cycles | 10000 |
| Electrical life cycles | 3000 |
| Operating temperature | -40°C to 85°C |
| Storage temperature | -40°C to 85°C |

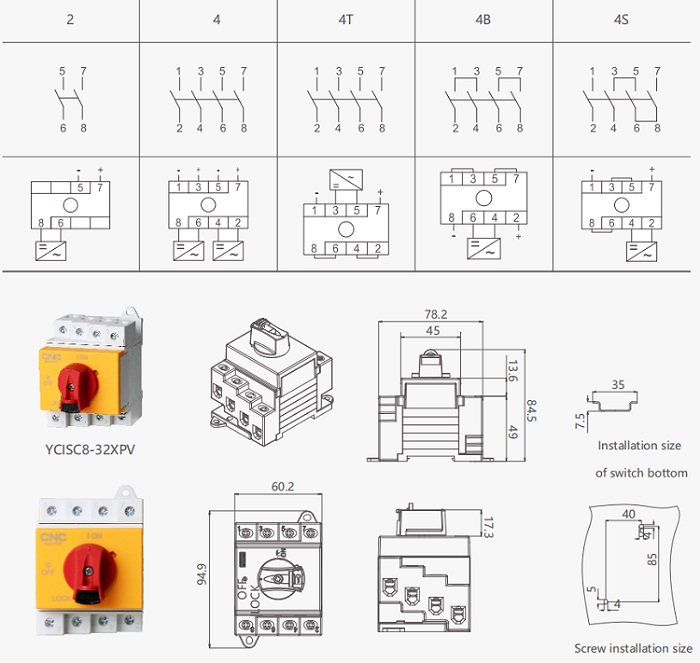

| Dimensions | 94.9 x 60.2 x 78.2 mm |
| Standards | IEC60947-1, IEC60947-3, AS5033:2014, NZS5033:2014, UL508i |
| Warranty | 24 months |
What wire sizes are supported by this DC isolator?
The switch features M4 terminals suitable for wire cross-sections from 4 mm² up to 16 mm².
Can this switch disconnect multiple MPPT lines?
Yes, it is designed to disconnect 1 to 2 MPPT lines at the same time.
